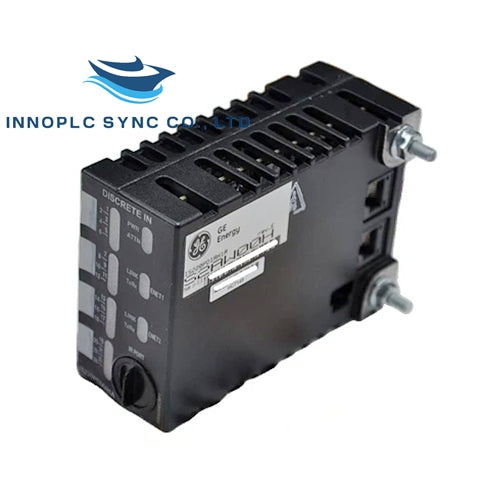

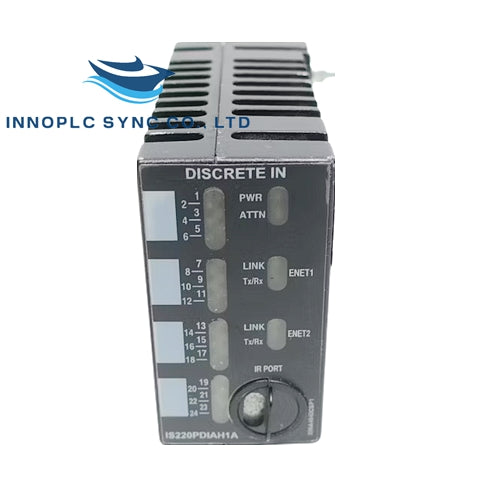

GE Fanuc | IS220PDIAH1A | Discrete Contact Input Terminal Board

SKU: IS220PDIAH1A

Manufacturer: GE Fanuc
Product No.: IS220PDIAH1A
Condition：In stock
Product Type: Discrete Contact Input Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Overview

IS220PDIAH1A is a Discrete Contact Input Terminal Board from General Electric, part of the Mark VIe Series for GE Distributed Turbine Control Systems. It provides the interface between Ethernet networks and discrete input signals, supporting up to 24 contact inputs.

Specifications

Product Type: Discrete Contact Input Terminal Board
Function: I/O Module
Series: Mark VIe
Number of Channels: 24
Operating Temperature: -40 to +70°C
Size: 15.9 cm x 17.8 cm
Weight: 0.8 kg
Input Isolation: Optical isolation up to 1500 V
Input Filter: 4 ms hardware filter
AC Voltage Rejection: 60 V rms at 50/60 Hz

Compatibility

Compatible with five types of terminal boards (TBCI, TICI, STCI), excluding the DIN-rail mounted DTCI board. Supports Simplex, Dual, and TMR configurations.

Installation

Mount the terminal board securely.
Plug in one (Simplex) or three (TMR) PDIA I/O packs.
Secure the packs with threaded studs and adjust the bracket for connector alignment.
Connect one or two Ethernet cables.
Apply power through the connector.

Operations

Processor: High-speed with RAM and flash memory
Ports: Two independent 10/100 Ethernet ports
Diagnostics: Status LEDs, infrared serial communication
Power: Soft-start with current limiter
Memory: Local power supplies, sequencing, and monitoring
