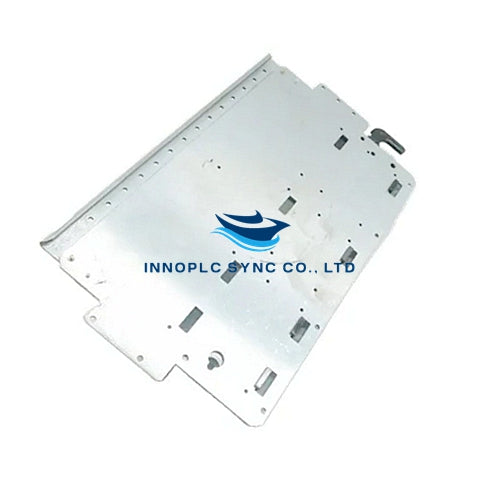

GE Fanuc | IS200TRLYH1BGF | Relay Output Board

SKU: IS200TRLYH1BGF

Manufacturer: GE Fanuc
Product No.: IS200TRLYH1BGF
Condition：In stock
Product Type: Relay Output Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 542g
Shipping port: Xiamen
Warranty: 12 months

Description

The IS200TRLYH1BGF is a Relay Output Board developed by GE as part of the Mark VI control system. It provides relay functionality for various industrial applications, offering enhanced control and flexibility in simplex and TMR configurations. The board is equipped with multiple relay circuits, power source options, and fault detection mechanisms to ensure reliable operation.

Features

Relay Configuration: 12 plug-in magnetic relays, configurable for different applications
Output Options: First six relays configurable for dry, Form-C contact outputs or driving external solenoids
Power Sources:
- Standard 125 V DC, 115/230 V AC
- Optional 24 V DC
Relay Types:
- Relays 7-11: Unpowered isolated Form-C contacts
- Relay 12: Isolated Form-C contact for specialized applications (e.g., ignition transformers)
Power Source Protection: Individual jumper-selectable fuses and onboard suppression for enhanced safety

Specifications

Temperature Rating:
- Operating: 0 to 60 °C
- Storage: -30 to +65 °C
Size:
- Width: 17.8 cm
- Height: 33.02 cm
Control: Operates under the VCCC, VCRC, or VGEN board control in simplex and TMR configurations
Connector Types:
- Simplex: Connector JA1
- TMR: Connectors JR1, JS1, JT1

Fault Detection Features

Loss of Relay Solenoid Excitation Current: Alerts when excitation current is lost to relay solenoids
Coil Current Disagreement with Command: Flags discrepancies between actual and commanded coil currents
Unplugged Cable or Loss of Communication: Monitors communication with I/O board and triggers safety measures if disconnected

Integration and Safety

Compatibility: Seamlessly integrates into existing Mark VI control systems and industrial equipment
Reliability: Designed for reliable performance in demanding environments
Safety: Onboard suppression and jumper-selectable fuses for safe operation

Installation and Maintenance

Ease of Installation: Simple setup for easy integration into control systems
Fault Prevention: Advanced fault detection ensures system integrity and minimizes the risk of operational errors
