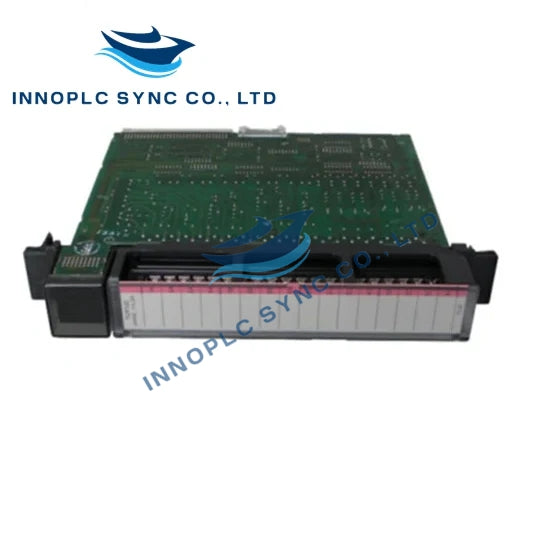

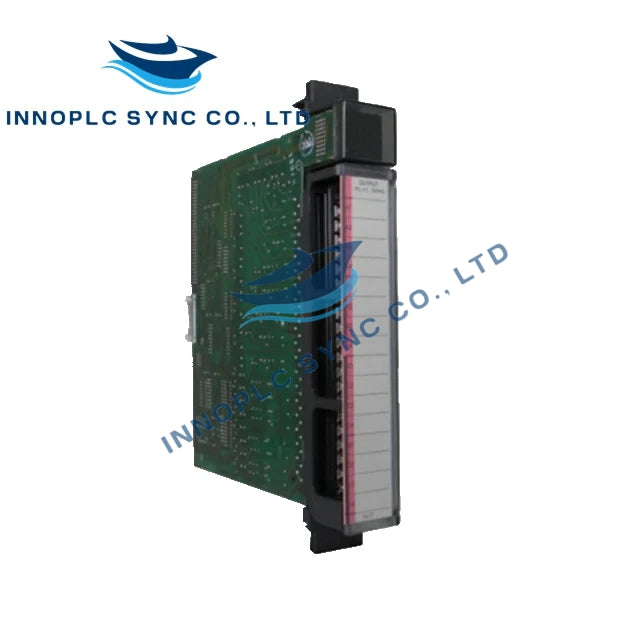

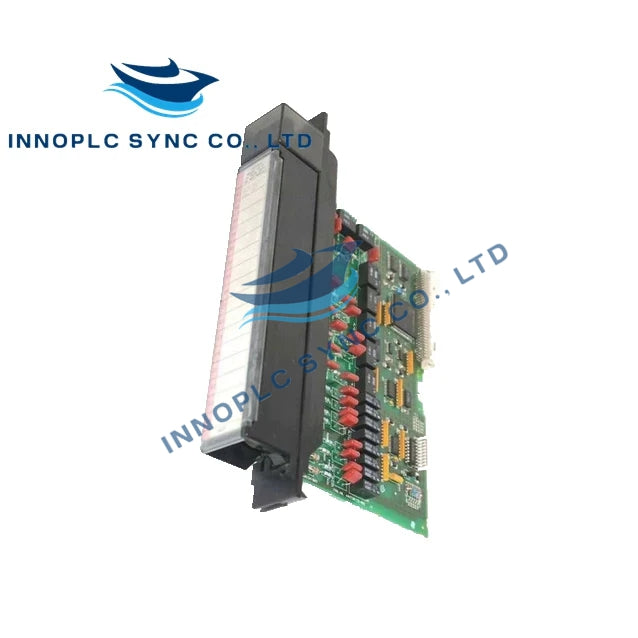

GE Fanuc | IC697MDL940 | Discrete Logic Output Module Series 90-70

SKU: IC697MDL940

Manufacturer: GE
Product No.: IC697MDL940
Condition：In stock
Product Type: Discrete Logic Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description:

Rated Voltage:

AC: 120/240 VAC
DC: 5/24/125 VDC
- Flexibility: Supports both AC and DC power configurations for diverse applications.

Number of Outputs:

Total Outputs: 16
Configuration:
- 8 Form C (SPDT) relays
- 8 Form A (SPST) relays
- Versatility: Accommodates various switching requirements.

Maximum Load Current:

Per Module: 16 amps (total across all outputs)
Per Group (Form A relays): 4 amps
- Load Distribution: Ensures proper load management.

Current Required:

From Backplane Power Supply: 750 mA
- Current Draw: Indicates power consumption for operation.

Frequency:

AC Power Only: 47-63 Hz
- Compatibility: Suitable for standard AC power frequency ranges.

DC Power Support:

Capability: Operates with DC power sources
- Application Range: Expands compatibility for different power sources.

Mechanical and Electrical Design:

Relay Coil Energization: Supplies power to energize relay coils for switching operations.
Individual Fusing: Each output is individually fused for enhanced reliability and overcurrent protection.
RC Snubber Suppression: RC snubbers reduce voltage spikes, ensuring smooth load operation.
LED Indicators: Located at the top of the module, providing clear ON-OFF status indication for each output point.

Programming and Configuration:

Software Compatibility: Configurable using MS-DOS or Windows-based software compatible with Windows 95 or Windows NT.
Communication Protocol: Configurable over Ethernet using TCP/IP protocol for remote programming and monitoring.
Compatible Devices: Supports a range of programming devices, including PCs, older IBM XT and AT systems, and PS/2 computers.
