GE Fanuc | IC695CPE310 | PACSystems RX3i | CPE310 Controller

SKU: IC695CPE310

Manufacturer: GE Fanuc
Product No.: IC695CPE310
Condition：In stock
Product Type: CPE310 Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 2720g
Shipping port: Xiamen
Warranty: 12 months

The IC695CPE310 is a CPU module in the GE Fanuc PACSystem RX3i Series, designed to perform real-time control of machines, processes, and material handling systems. It communicates with I/O and Intelligent Option modules over a dual-purpose PCI and serial backplane.

Processor: 1.1 GHz Atom processor
Memory: 10 MB
Embedded Ethernet: Two connections rated for 10Mb/sec and 100Mb/sec
Serial Ports: RS-485 and RS-232
Program Blocks: Up to 512 blocks, each up to 128 KB
Supported Protocols: Modbus RTU Slave, SNP, Serial I/O
Programming Languages: Ladder Diagram, Structured Text, C, Function Block Diagram

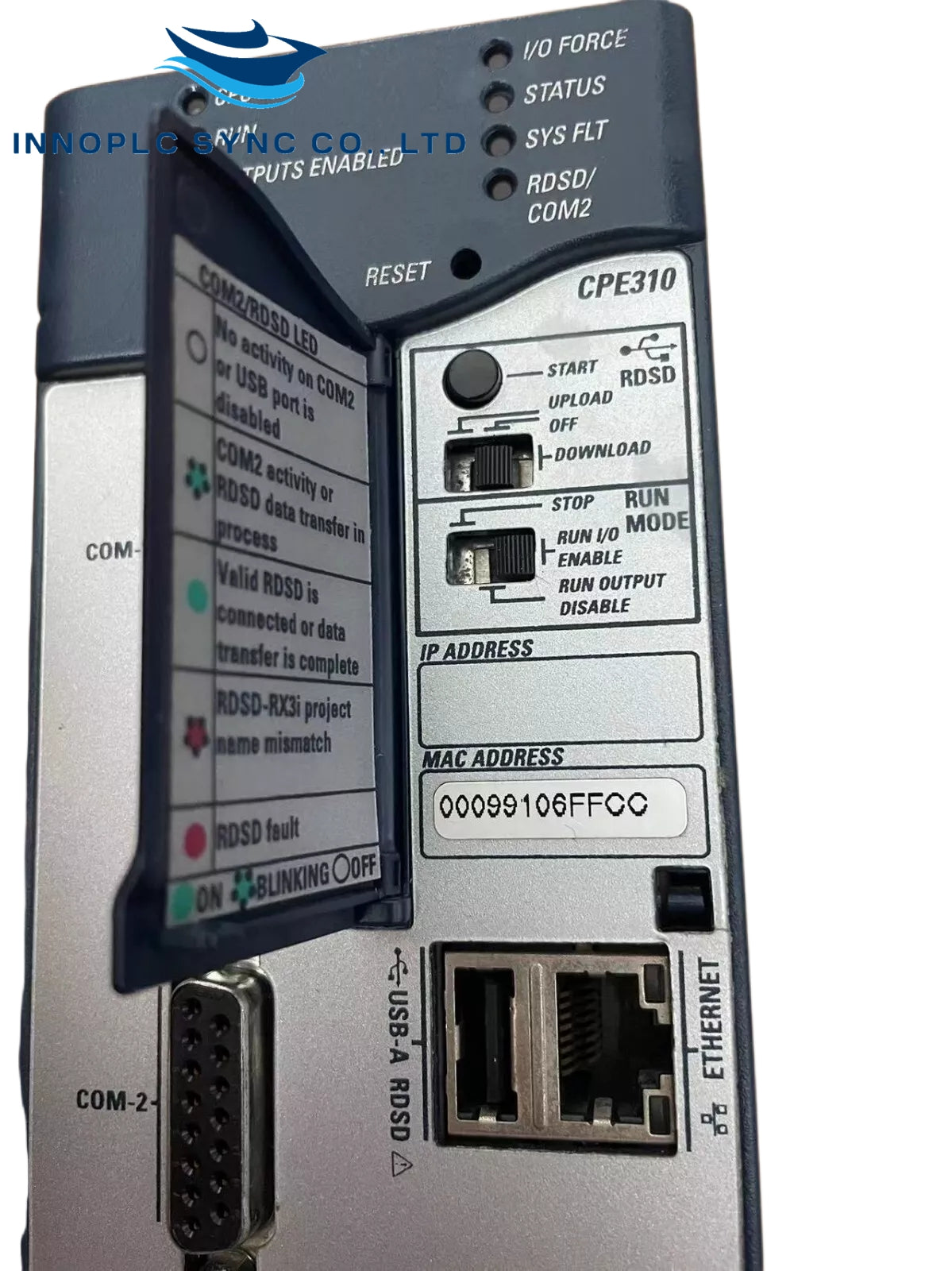

LED Indicators: Green, red, off, or blinking for efficient troubleshooting and status verification
Installation: Can be installed in any pair of slots in the main RX3i controller rack except for the two highest-numbered slots
Upgrade: Approximately three times faster than the 300 MHz Celeron processor in the IC695CPU310; legacy PME software compatible
Note: The RS-232 port on the IC695CPE310 does not provide 5V power on pin 5

Technical Specifications

Processing Speed: 1.1 GHz
CPU Memory: 10 MB
Floating Point: Yes
Power Requirements:
- 3.3 VDC: 1 Amp
- 5 VDC: 1 Amp
- 24 VDC: 0.5 Amp
Serial Protocols:
- Modbus RTU Slave
- SNP Slave
- Serial I/O
Embedded Communications:
- RS-232
- RS-485
Real-Time Clock: Battery-backed with dynamic data backup
USB Interface: 1x USB-A 2.0 master port for configuration and application data download
Ethernet Connections: 2 ports, 10/100 Mbps
Environmental:
- Operating Temperature: 0 to 60°C (32 to 140°F)

Installation and Usage

Backplane: Must be installed in the central universal backplane of the RX3i PACSystems machine control system
Unsupported Backplanes: Cannot function properly if installed in an expansion backplane or a remote backplane

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
