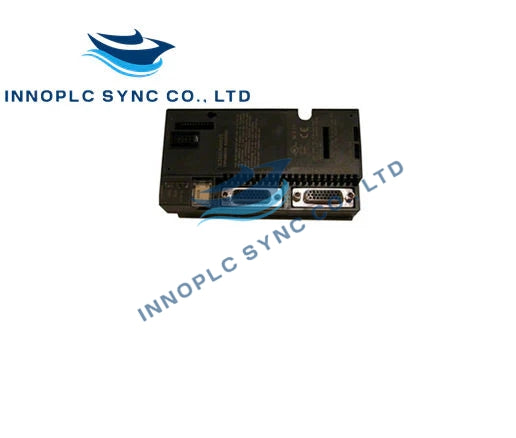

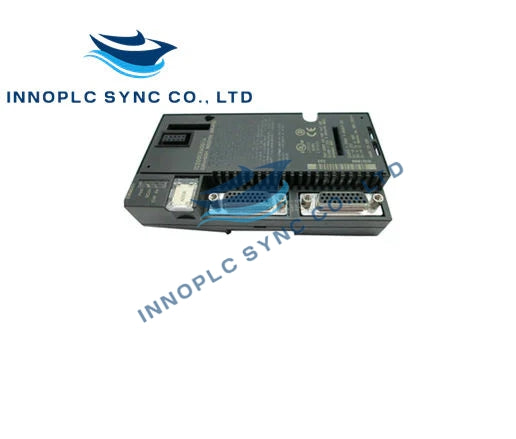

GE Fanuc | IC200ERM002E | Non-Isolated Expansion Receiver Module

SKU: IC200ERM002E

Manufacturer: GE
Product No.: IC200ERM002E
Condition：In stock
Product Type: Non-Isolated Expansion Receiver Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Product Description:

The technical specifications for the GE IC200ERM002E non-isolated expansion receiver module:

Functionality:

The IC200ERM002E extends the capabilities of a VersaMax system by providing additional input and output (I/O) points.
It allows for the expansion of PLC or input/output station functionality and increases the number of connected modules.

Dimensions:

Width: 2.63 inches (66.8 millimeters)
Height: 5.04 inches (128 millimeters) (excluding the power supply dimensions)

Power Supply:

Requires a power supply to operate connected modules.
Additional power booster carriers or power supplies should be connected to the main power supply on this expansion module.

LED Indicators:

Three on-board LED lights indicate device status.

Compatibility:

Can be used in both multi-rack or single-ended VersaMax input and output expansion systems.
Cable length limitations:
- Multi-rack implementations: Maximum cable length of 15 meters (approximately 50 feet).
- Single-ended implementations with one expansion rack: Maximum cable length of one meter (approximately 3.3 feet).

Data Transfer Rates:

Data transfer rates are either 5 megabits per second or 2.765 megabits per second, depending on the implementation.

Expansion Ports:

Features two 26-pin female D-shell expansion ports:
- Top port: Inbound expansion cable.
- Bottom port: Used for daisy chaining the next expansion rack or connecting to the terminator plug.

Backplane Current Options:

Backplane current options: 5 volts or 3.3 volts.
Current consumption:
- For 5V backplanes: 70 milliamps
- For 3.3V backplanes: 20 milliamps

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
