GE Fanuc | 8521-RT-DE | RTU Controller

SKU: 8521-RT-DE

Manufacturer: GE Fanuc
Product No.: 8521-RT-DE
Condition：In stock
Product Type: RTU Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 1350g
Shipping port: Xiamen
Warranty: 12 months

Overview

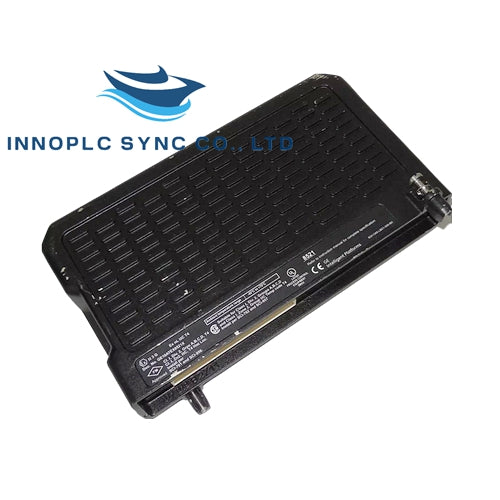

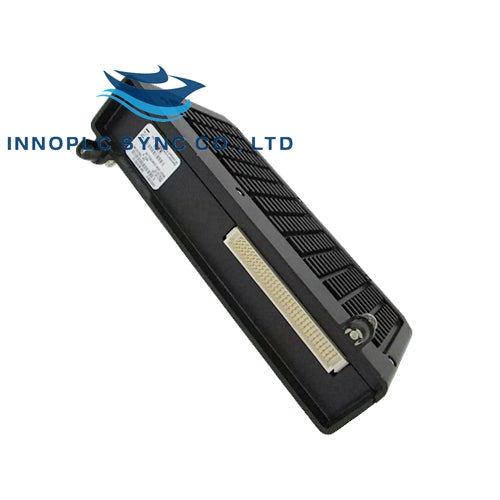

The GE Fanuc 8521-RT-DE is an RTU Controller designed for industrial automation systems. It supports multiple programming languages and is capable of handling up to 64 modules per controller.

Key Specifications

Manufacturer: GE Fanuc
Part Number: 8521-RT-DE
Product Type: RTU Controller
Programming Languages:
- Ladder Diagram (LD)
- Structured Text (ST)
- Instruction List (IL)
- Sequential Function Chart (SFC)
- Function Block Diagram (FBD)
- Flow Chart
LAN Communication Protocol: DNP3
Number of Controllers per LAN:
- 24 nodes with simplex controllers
- 12 nodes with redundant controllers
Number of Modules per Controller: 64
LAN Connections: 2 RJ45 Connectors per Controller
LAN Transmission Medium: 100Base TX or 10BaseT Ethernet
LAN Transmission Speed: 10 – 100 Mb/s
LAN Isolation: 1500 V dielectric withstand
Serial Connections:
- One male 9-pin D-type on each Controller
- Second female connector on Carrier
Serial Transmission Medium: RS485 half-duplex
Serial Transmission Speed: 1.2 – 115 kb/s
Controller Power:
- Direct connection to Controller: 12 VDC (10.9 – 12.6)
- Current Consumption: 0.4 A typical, 0.5 A max
- System Power Consumption: 15 mA (max)
Dimensions:
- Width: 232 mm (9.13 inches)
- Height: 69 mm (2.72 inches)
- Depth: 138 mm (5.43 inches)
Weight: 1.35 kg (2.98 lbs)
