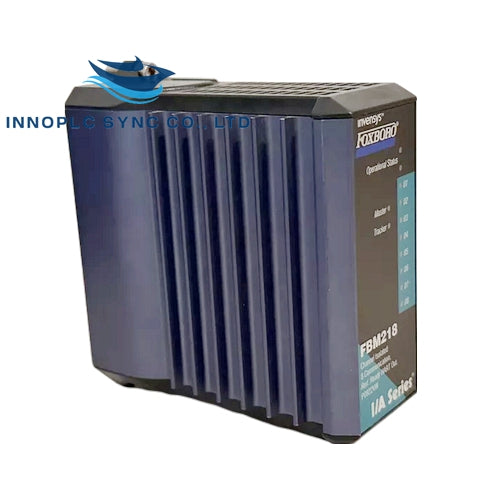

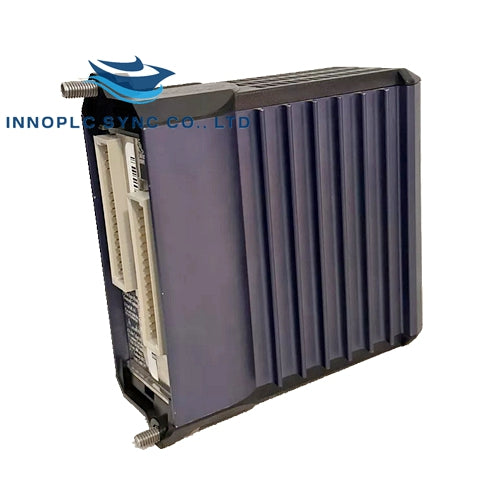

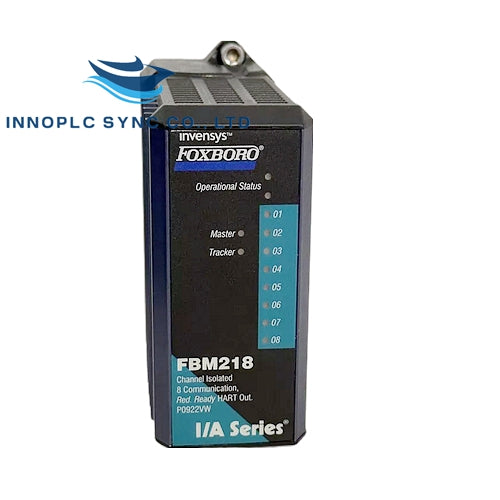

Foxboro | FBM218 P0922VW | Redundant Output Interface Module

SKU: FBM218 P0922VW

Manufacturer: Foxboro
Product No.: FBM218 P0922VW
Condition：In stock
Product Type: Redundant Output Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 185g
Shipping port: Xiamen
Warranty: 12 months

Overview

FBM218 P0922VW is a redundant output interface module supporting HART® communication, with 8 isolated output channels.

Field Device Channels

Supported HART Versions: Compatible with Version 5, 6, or 7 instruments
Interface: 8 isolated output channels
Communication: Point-to-point, master/slave, asynchronous, half-duplex, at 1200 baud
Error Checking: Parity per byte and 32-bit CRC per message
Speed: 2 messages per second
Fastest Block Period: 100 ms (Refer to Control Processor guidelines for optimal loading)

Distance and Compliance

Maximum Distance: Up to 3030 m (10,000 ft)

Current Outputs

Analog Accuracy: ±0.05% of span (4–20 mA)
Output Load: 750 Ω maximum
Rate of Change: 20 mA in 60 ms
Resolution: 13 bits

Loop Power and Isolation

Channel Protection: Galvanically isolated, current limited, voltage regulated
Maximum Current: 25 mA (100 mA in fault conditions)
Channel Isolation: Withstands 600 V AC between channels and ground

Environmental Specifications

Operating Temperature:
- Module: -20 to +60°C
- Termination Assembly: -20 to +70°C
Relative Humidity: 5–95% (non-condensing)
Altitude: -300 to +3,000 m

Storage Conditions

Temperature: -40 to +85°C
Relative Humidity: 5–95% (non-condensing)
Altitude: -300 to +12,000 m

Mounting

Module: Compact 200 Series 16-slot horizontal baseplate (DIN rail or 19-inch rack)
Termination Assembly: Compatible with 32 mm and 35 mm DIN rails

Dimensions and Mass

Module:
- Height: 130 mm
- Width: 25 mm
- Depth: 150 mm (with connectors: 139 mm)
- Mass: 185 g
Termination Assembly:
- Compression: 181 g
- Ring Lug: 249 g
