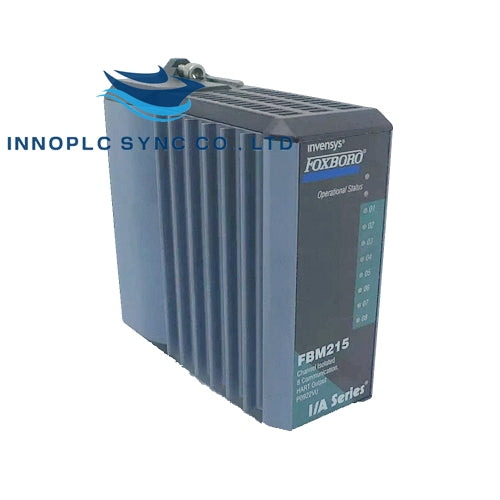

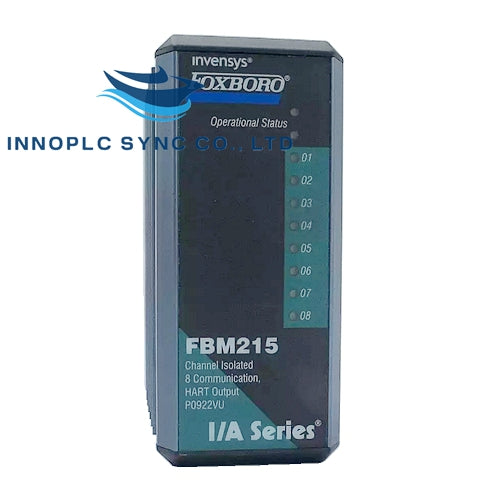

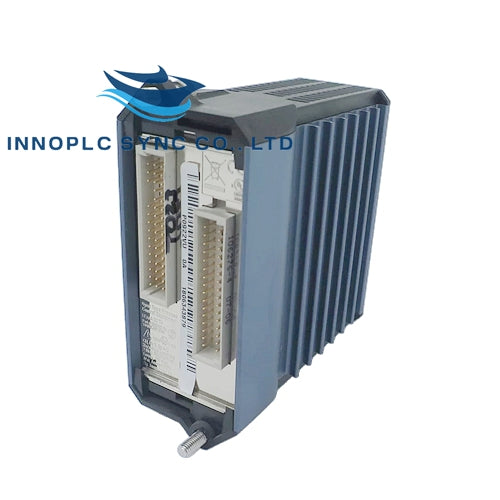

Foxboro | FBM215 P0922VU | HART Communication Output Module

SKU: FBM215 P0922VU

Manufacturer: Foxboro
Product No.: FBM215 P0922VU
Condition：In stock
Product Type: HART Communication Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 284g
Shipping port: Xiamen
Warranty: 12 months

Overview

The FBM215 P0922VU is a HART Communication Output Module designed to provide isolated communication channels for HART instruments.

Technical Specifications

Manufacturer: Foxboro
Model Number: FBM215 P0922VU
Product Type: HART Communication Output Module
Field Device Channels: 8 isolated output channels
Supported HART Instrument Types: HART instruments compliant to Version 5, 6, or 7
Communication to Device: Point-to-point, master/slave, asynchronous, half-duplex at 1200 baud
Error Checking: Parity on each byte, one CRC check byte on each message
Speed: 2 messages per second
Fastest Allowed ECB Block Period: 100 msec
Maximum Distance (FBM215 to Field Device): Up to 3030 m (10000 ft)
Current Outputs:
- Analog Accuracy: ±0.05% of span (between 4 mA and 20 mA)
- Output Load: 750 Ω maximum
- Maximum Rate of Change: 20 mA in 60 milliseconds
- Resolution: 13 bits
Loop Power Supply Protection:
- Galvanically isolated, current limited, and voltage regulated
- Maximum output current: 25 mA (normal), up to 100 mA if output FET shorts
Isolation: Channels are galvanically isolated from each other, ground, and module logic
Fieldbus Communication: Communicates via redundant 2 Mbps module Fieldbus
Power Requirements:
- Input Voltage Range (Redundant): 24 V DC +5%
- Consumption: 7 W (maximum)
- Heat Dissipation: 5 W (maximum)
- Calibration Requirements: Calibration of the module and termination assembly is not required
Environmental Specifications:
- Operating Temperature (Module): -20°C to +70°C (-4°F to +158°F)
- Operating Temperature (Termination Assembly): -40°C to +70°C (-40°F to +158°F)
- Relative Humidity: 5% to 95% (non-condensing)
- Altitude: -300 to +3000 m (-1000 to +10000 ft)
- Contamination: Suitable for Class G3 (Harsh) environments
- Vibration: 7.5 m/s² (0.75 g) from 5 to 500 Hz
Mounting:
- Module mounts on a modular baseplate, which can be mounted on a DIN rail or a 19-inch rack
- Termination Assembly mounts on a DIN rail
Weight:
- Module: 284 g (10 oz) approximate
- Termination Assembly: 181 g (0.40 lb) approximate
Dimensions (Module):
- Height: 102 mm (4 in) (114 mm (4.5 in) including mounting lugs)
- Width: 45 mm (1.75 in)
- Depth: 104 mm (4.11 in)
