FBM242 RH916TA | Foxboro Compact Discrete I/O Module

SKU: FBM242 RH916TA

Manufacturer: Foxboro
Product No.: FBM242 RH916TA
Condition：In stock
Product Type: Compact Discrete I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Overview

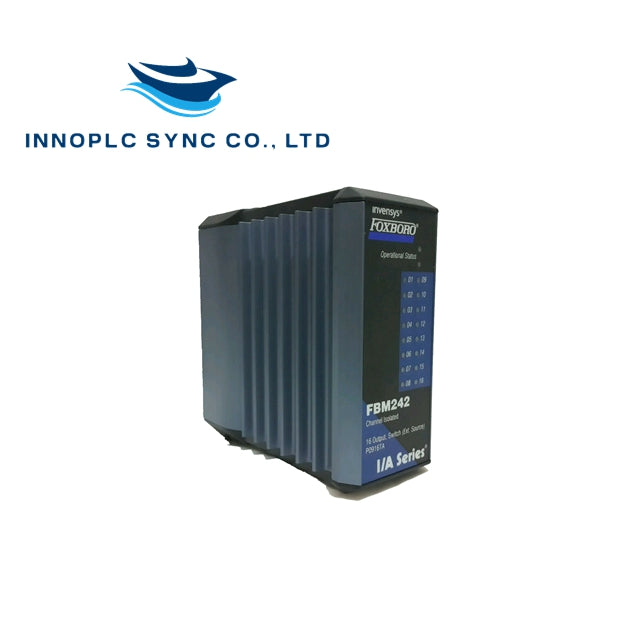

Foxboro FBM242: Compact Discrete Input/Output Module
The FBM242 features 8 isolated input channels for contact sensing and 8 isolated output channels for switching external loads, designed for reliable operation in industrial environments.

Input Channels

Type: Contact sensing
Range: Contact open (off) or closed (on)
Open-Circuit Voltage: 24 VDC ±15%
Short-Circuit Current: 2.5 mA (nominal)
On-State Resistance: 1.0 kΩ (maximum)
Off-State Resistance: 100 kΩ (minimum)

Output Channels

Type: Switch (externally sourced)
Applied Voltage: 60 VDC (maximum)
Load Current: 2.0 A (maximum)
Off-State Leakage Current: 0.1 mA (maximum)

Technical Specifications

Input Signal: 8 channels, contact sense 24 VDC
Output Signal: 8 channels, switch (externally sourced) 15 to 60 VDC at 2 A maximum, protected - fused

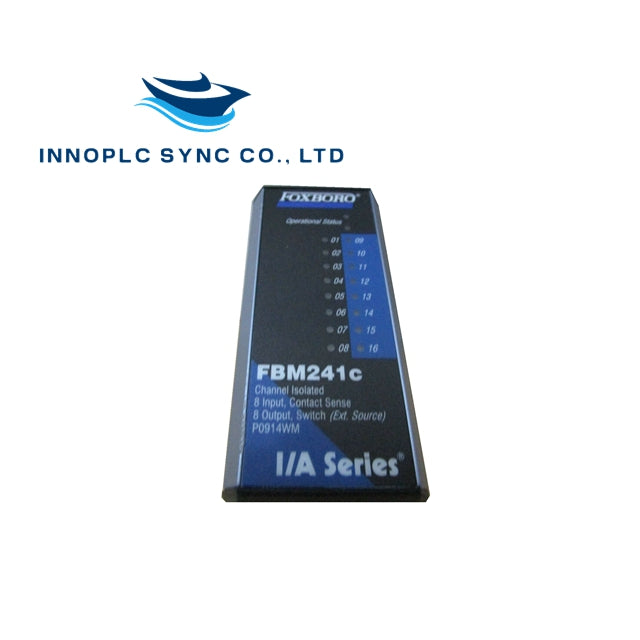

TA Part Number: FBM241c
Terminal Type: Compact
TA Cable Type: FBM241c
TA Certification Type: Channel isolation
