Epro | PR6480/041-000-CN+CON021 | Probe Holder with Converter

SKU: PR6480/041-000-CN+CON021

Manufacturer: Emerson
Product No.: PR6480/041-000-CN+CON021
Condition：In stock
Product Type: Probe Holder with Converter
Product Origin: Germany
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

PR6480/041-000-CN | Probe Holder

Overview
The PR6480/041-000-CN is a durable probe holder designed to securely mount sensors in various industrial applications. It features a stainless steel holder and an optional aluminum die-cast connection head, providing robust protection and high performance in demanding environments. The holder is designed to be used with the PR6422 and other related sensors.

Technical Specifications

Material:
- Holder: Stainless steel (1.4305)
- Connection Head (optional): Aluminum die-cast with polyester coating
- Protection Hose (optional): Stainless steel (1.4301)
Environmental Conditions:
- Differential Pressure: 2000 hPa (screwed in holder with sealing glued in sensor)
IP Protection Class:
- Connection Head: IP45
- IP65: When the adapter is glued in and sealed with adhesive (e.g., Loctite 620 or equivalent)
Mounting:
- The sensor can be fixed within the sensor sleeve either by locking it with an appropriate nut or gluing it in with adhesive (Loctite 620 or equivalent).
- Recommended Application: We recommend gluing in the adaptor sleeve for the PR6422 sensor.

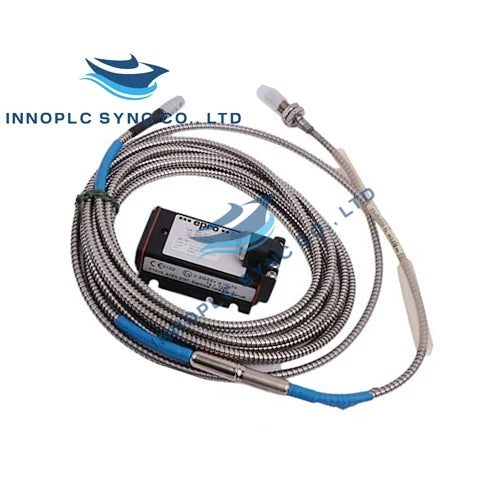

CON021 | Eddy Current Signal Converter

Overview
The CON021 is a high-performance dynamic converter designed for use with the PR6422 series of sensors (PR6423, PR6424, PR6425, PR6426, PR6453). It is designed to provide excellent dynamic performance, offering a wide frequency range and rapid rise time, making it ideal for high-speed measurement applications.

Technical Specifications

Dynamic Performance:
- Frequency Range: 0 to 20,000 Hz (-3 dB)
- Rise Time: <15 µs
- Note: Designed for use with the PR6422, PR6423, PR6424, PR6425, PR6426, and PR6453 sensors.
- Extended Range: For extended range use, consider the CON021/91x-xxx.
- PR6425 always requires an extended range converter.
Environmental Conditions:
- Operating Temperature Range: -30 to 100°C (-22 to 212°F)
- Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
- Protection Class: IP20
Power & Electrical:
- Supply Voltage Range:
  - -23V to -32V (Output Range: -4V to -20V)
  - -21V to -32V (Output Range: -2V to -18V)
Physical:
- Housing Material: LMgSi 0.5 F22
- Weight: ~120 grams (4.24 oz)
- Mounting: 4 screws (M5x20, included in delivery)
- Connections:
  - Transducer Self-Locking Lemo-Plug
  - Supply/Output Screw Terminal Type (max. 1.5 mm² wire)
