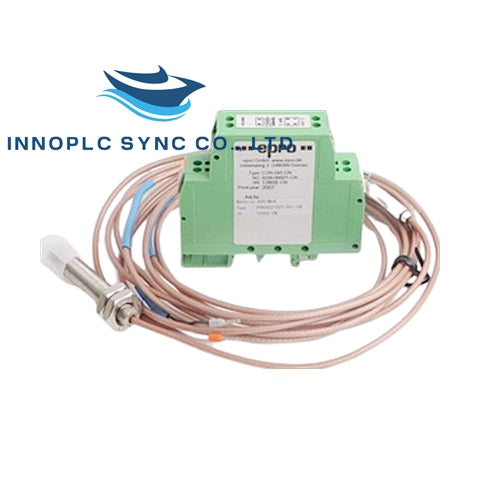

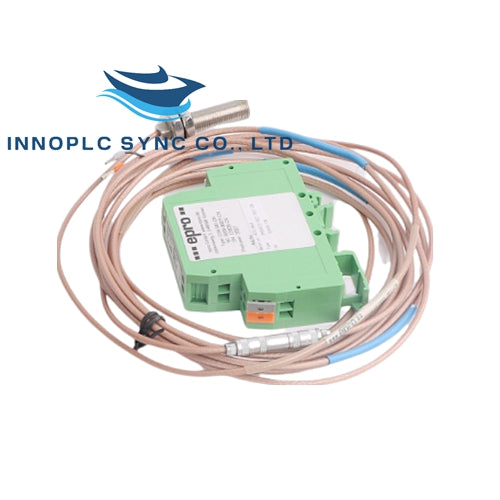

EPRO | CON041+PR6423/10R-131 | Eddy Current Sensor with Converter

SKU: CON041+PR6423/10R-131

Manufacturer: EPRO
Product No.: CON041+PR6423/10R-131
Condition：In stock
Product Type: Eddy Current Sensor with Converter
Product Origin: Germany
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

CON041 Overview

The EPRO CON041 is an eddy current signal converter designed for critical turbomachinery applications, including steam, gas, and hydro turbines, compressors, pumps, and fans.

CON041 Technical Specifications

Dynamic Performance:

Frequency Range (-3 dB): 0 to 20,000 Hz
Rise Time: < 15 µs

Environmental:

Operating Temperature Range: -30 to 100°C (-22 to 212°F)
Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
Protection Class: IP20

Power & Electrical:

Supply Voltage Range: -23V to -32V (Output Range -4V to -20V), -21V to -32V (Output Range -2V to -18V)

Physical:

Housing Material / Weight: PA 6.6 / ~60 grams (2.12 oz)
Mounting: DIN Rail
Connections: Screw Terminal (Max. 1.5 mm², Wire-end Sleeves)
Certifications: CE, ATEX, IEC-Ex, CSA

PR6423/10R-131 Overview

The EPRO PR6423/10R-131 is an eddy current sensor designed for non-contact measurement of vibration and displacement. It is ideal for monitoring the condition of critical machinery such as turbines, compressors, and pumps.

PR6423/10R-131 Technical Specifications

Linear Measurement Range:

0 to 10 mm

Incremental Scale Factor (ISF):

8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (32 to 113°F)

Deviation from Best Fit Straight Line (DSL):

± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (32 to 113°F)

Minimum Shaft Diameter:

25 mm (0.79 inches)

Target Material:

Ferromagnetic Steel (42CrMo4, AISI/SAE 4140 Standard)

Protection Class:

IP66, IEC 60529

Operating Temperature Range:

Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F)
Cable & Connector: -35 to +150°C (-31 to 302°F)

Material:

Sensor Tip: PEEK (Polyether Ether Ketone)
Case: Stainless Steel
Cable: PTFE (Polytetrafluoroethylene)
Connector: Brass, nickel-plated

Weight (Sensor with 1m Cable):

Approx. 100 grams (3.53 oz)

Output Signal:

4 to 20 mA

Power Supply:

12 to 24 VDC

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
