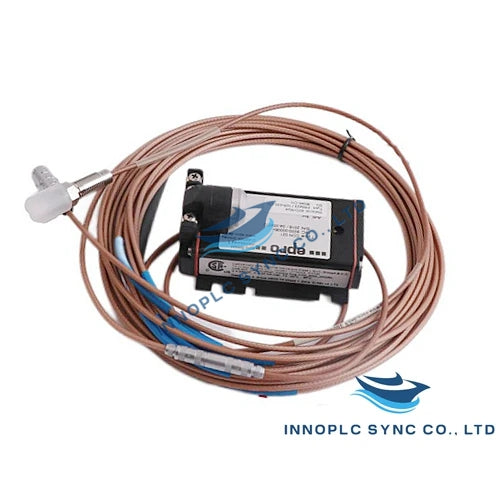

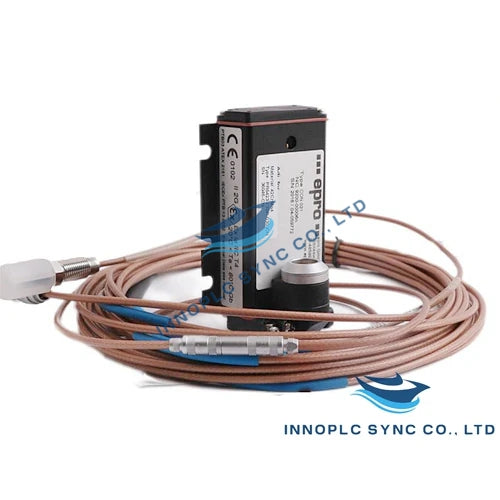

EPRO | CON021+PR6423/10R-030-CN | Eddy Current Sensor with Converter

SKU: CON021+PR6423/10R-030-CN

Manufacturer: EPRO
Product No.: CON021+PR6423/10R-030-CN
Condition：In stock
Product Type: Eddy Current Sensor with Converter
Product Origin: Germany
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

CON021 Overview

The EPRO CON021 is an eddy current signal converter designed to work with EPRO eddy current sensors. It converts analog signals from the sensors into formats suitable for data acquisition and analysis, ensuring accurate and reliable measurements.

CON021 Technical Specifications

Dynamic Performance:

Frequency Range (-3 dB): 0 to 20,000 Hz
Rise Time: < 15 µs

Environmental:

Operating Temperature Range: -30 to 100°C (-22 to 212°F)
Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
Protection Class: IP20

Power & Electrical:

Supply Voltage Range: -23V to -32V (Output Range -4V to -20V), -21V to -32V (Output Range -2V to -18V)

Physical:

Housing Material: LMgSi 0.5 F22
Weight: ~120 grams (4.24 oz)
Mounting: 4 Screws M5x20 (Included in Delivery)
Connections: Transducer Self-Locking Lemo-Plug, Supply/Output Screw Terminal Type (max. 1.5 mm², wire)

PR6423/10R-030-CN Overview

The EPRO PR6423/10R-030-CN is a high-precision eddy current sensor designed for non-contact measurement of vibration and displacement. It is ideal for monitoring the condition of critical machinery such as turbines, compressors, and pumps.

PR6423/10R-030-CN Technical Specifications

Linear Measurement Range:

0 to 10 mm

Sensitivity/Linearity:

4 V/mm (101.6 mV/mil) ≤ ±1.5%

Initial Air Gap:

0.5 mm (20 mils)

Long Term Drift:

< 0.3%

Operating Temperature Range:

-35 to 150°C (-31 to 302°F)

Shock and Vibration Resistance:

5g @ 60 Hz @ 25°C (77°F)

Pressure Resistance to Sensor Head:

10,000 hPa (145 psi)

Protection Class:

IP66, IEC 60529

Material:

Sensor Tip: PEEK (Polyether Ether Ketone)
Case: Stainless Steel
Cable: PTFE (Polytetrafluoroethylene)
Connector: Brass, nickel-plated

Weight (Sensor with 1m Cable):

Approx. 100 grams (3.53 oz)

Minimum Shaft Diameter:

25 mm (0.79 inches)

Target Material:

Ferromagnetic Steel (42CrMo4 Standard)

Deviation from Best Fit Straight Line (DSL):

± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (32 to 113°F)

Output Signal:

4 to 20 mA
