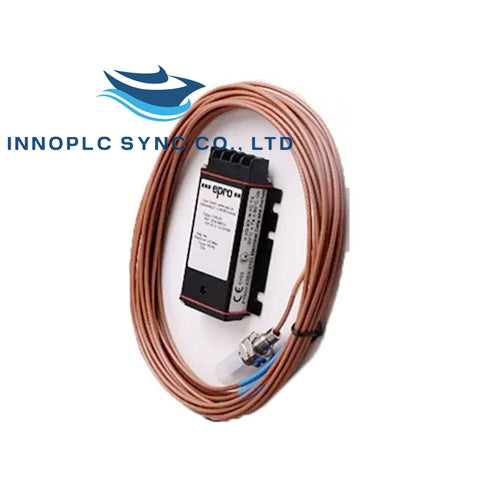

EPRO | CON021+PR6423/10R-010-CN | Eddy Current Sensor with Converter

SKU: PR6423/10R-010-CN

Manufacturer: EPRO
Product No.: PR6423/10R-010-CN
Condition：In stock
Product Type: Eddy Current Sensor with Converter
Product Origin: Germany
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

CON021 Overview

The EPRO CON021 is an eddy current signal converter designed to work seamlessly with various EPRO eddy current sensors. It ensures accurate and reliable measurements by converting analog signals from the sensors into formats suitable for data acquisition and analysis.

CON021 Technical Specifications

Dynamic Performance:
- Frequency Range (-3 dB): 0 to 20,000 Hz
- Rise Time: < 15 µs
Environmental:
- Operating Temperature Range: -30 to 100°C (-22 to 212°F)
- Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
- Protection Class: IP20
Power & Electrical:
- Supply Voltage Range: -23V to -32V (Output Range -4V to -20V), -21V to -32V (Output Range -2V to -18V)
- Output Signal: 4 to 20 mA
Physical:
- Housing Material: LMgSi 0.5 F22
- Weight: ~120 grams (4.24 oz)
- Mounting: 4 Screws M5x20 (Included in Delivery)
- Connections: Transducer Self-Locking Lemo-Plug, Supply/Output Screw Terminal Type (max. 1.5 mm², wire)

PR6423/10R-010-CN Overview

The EPRO PR6423/10R-040-CN is an eddy current sensor designed for high-precision non-contact measurement of vibration and displacement. It is ideal for monitoring critical machinery such as turbines, compressors, and pumps.

PR6423/10R-010-CN Technical Specifications

Measurement Range: 0 to 5 mm
Sensitivity: 7.87 V/mm (200 mV/mil) ± 5%
Initial Air Gap: 1 mm (40 mils)
Target Material: Ferromagnetic Steel (AISI 4140)
Minimum Shaft Diameter: 50 mm (1.97 inches)
Temperature Coefficient: ±0.1%/°C
Cable Length: 5 meters (16.4 ft)
Operating Temperature Range:
- Sensor: -40 to +180°C (-40 to +356°F)
- Cable: -40 to +150°C (-40 to +302°F)
Protection Class: IP67
Material:
- Sensor Body: Stainless Steel
- Cable Insulation: Fluoropolymer
Weight: 200 grams (7.05 oz)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
