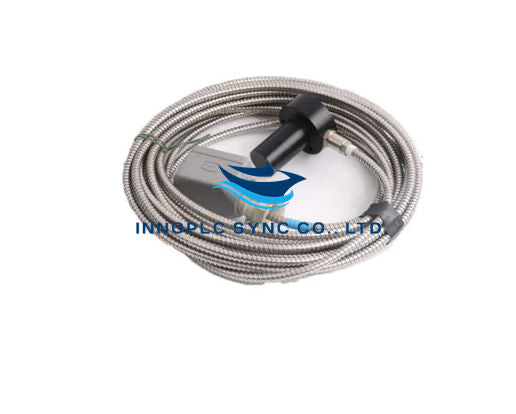

Emerson | EPRO | PR6423/003-010-CN+CON021 | Eddy Current Displacement Sensor

SKU: PR6423/003-010-CN+CON021

Manufacturer: Emerson
Product No.: PR6423/003-010-CN+CON021
Condition：In stock
Product Type: Eddy Current Displacement Sensor
Product Origin: Germany
Payment:T/T, Western Union
Weight: 4000g
Shipping port: Xiamen
Warranty: 12 months

Description

Technical Specifications

General:

Measuring Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material: Ferromagnetic Steel (42CrMo4, AISI/SAE 4140 standard, other on request)
Protection Class: IP66, IEC 60529
Operating Temperature Range:
- Sensor (including 1m cable): -35 to +200°C (-31 to 392°F)
- Cable & Connector: -35 to +150°C (-31 to 302°F)
Material:
- Sensor Tip: PEEK (Polyether Ether Ketone)
- Case: Stainless Steel
- Cable: PTFE (Polytetrafluoroethylene)
- Connector: Brass, nickel-plated
Weight (Sensor with 1m Cable): Approx. 100 grams (3.53 oz)

Additional Specifications:

Operating Frequency Range: 10 Hz to 10 kHz
Sensitivity: 10 mV/(mm/s)
Output Voltage: 0 to 10 V
Accuracy: ±0.5%
Temperature Range: -20°C to 80°C
Weight: 0.3 kg

This sensor is designed for high-precision applications, ensuring reliable measurements in various environments

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
