Emerson | DeltaV | KL1604X1-BA1 | Safety Isolation Port (Copper)

SKU: KL1604X1-BA1

Manufacturer: Delta V
Product No.: KL1604X1-BA1
Condition：In stock
Product Type: Safety Isolation Port (Copper)
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

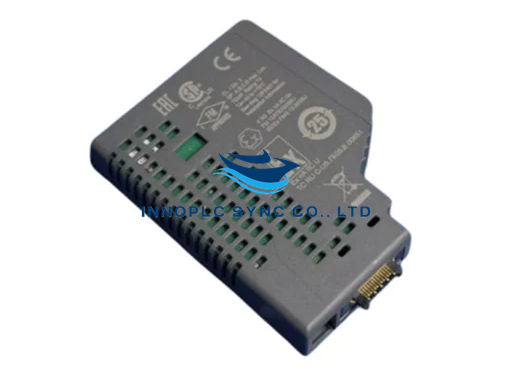

KL1604X1-BA1 Safety Isolation Port (Copper)

Hazardous Atmosphere Certifications

II 3G Ex ec IIC Gc
FM19ATEX0173U
IECEx FMG 19.0019U
FM21UKEX0017U
CL. I Div. 2 GP. A,B,C,D
CL. I Zone 2 AEx/Ex ec IIC Gc
FM17CA0145U
FM17US0286U

Power Specifications

Input power: +5.0 VDC at 200 mA

Environmental Specifications

Ambient Temperature: -40 °C to +70 °C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing

Additional Information

Note: Refer to the product label for serial number and location and date of manufacture.
Warning: This product has specific instructions for installation, removal, and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual.
Removal and Insertion: This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous.
Maintenance and Adjustment: This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.
