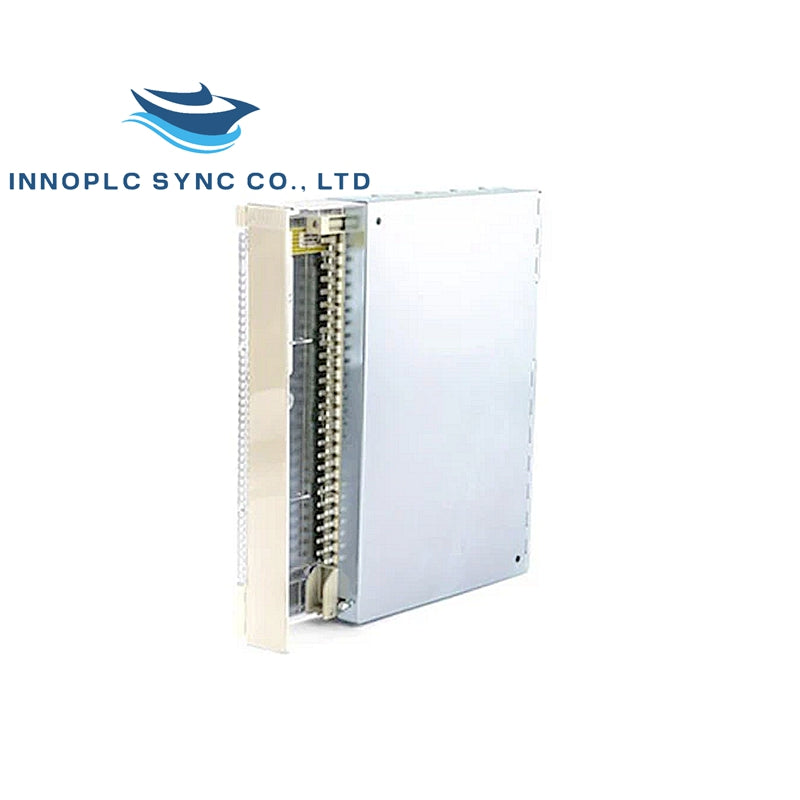

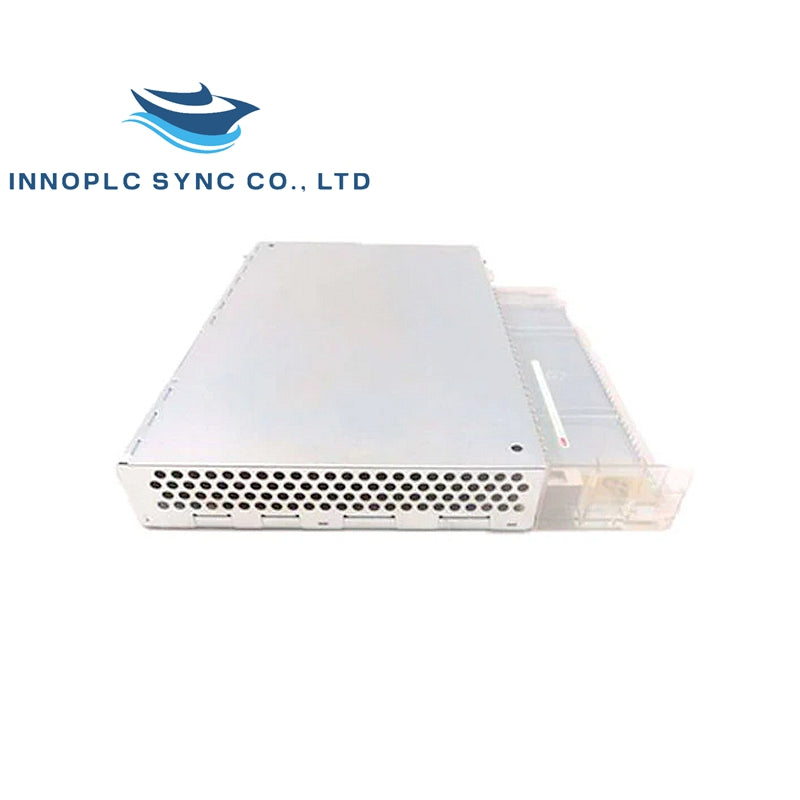

DP640 3BHT300057R1 | ABB | Rotational Speed Meter Module

SKU: DP640 3BHT300057R1

Manufacturer: ABB
Product No.: DP640 3BHT300057R1
Condition：In stock
Product Type: Rotational Speed Meter Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1330g
Shipping port: Xiamen
Warranty: 12 months

General Information

Product ID: 3BHT300057R1
ABB Type Designation: DP640
Catalog Description: DP640 Rotational Speed Meter Module
Long Description: DP640 Rotational Speed Meter Module

Additional Information

Medium Description: DP640 Rotational Speed Meter Module
Product Type: I-O_Module
Technical Information: S600 I/O speed meter input, max 50 kHz, ±13 mA, 24 V d.c. or 5 V d.c., detection of direction through second speed meter input, overspeed trip logic with trip signal output via solid state 24 V d.c. and dry contact 60 V d.c., speed meter inputs and solid state output are individually opto-isolated.

Dimensions

Product Net Depth / Length: 252 mm
Product Net Height: 273 mm
Product Net Width: 40 mm
Product Net Weight: 1.33 kg

Technical

Channel Type: DI
Number of Input Channels: 2

Environmental

RoHS Status: Following EU Directive 2011/65/EU
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries: 0

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
