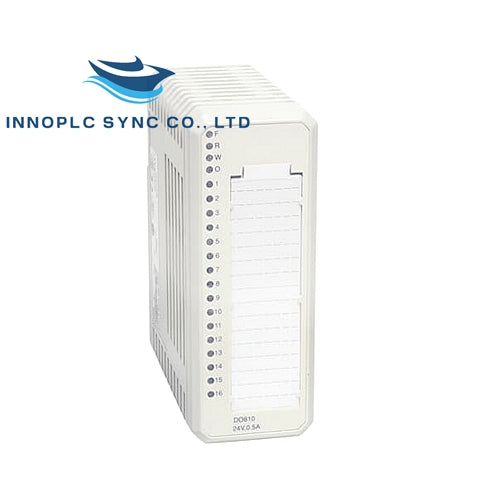

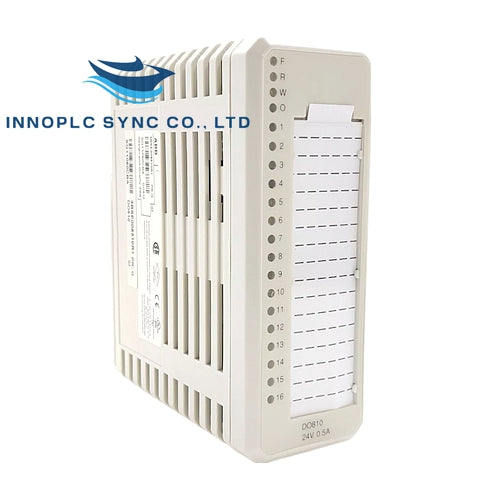

DO810 | ABB | Digital Output
SKU: DO810

  • Manufacturer: ABB

  • Product No.: DO810

  • Condition：In stock

  • Product Type: Digital Output

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 180g

  • Shipping port: Xiamen

  • Warranty: 12 months

General Information

  • Article Number: 3BSE008510R1
  • Type: Digital Output
  • Signal Specification: 24V d.c. (12 - 32 V d.c.), 0.5 A
  • Number of Channels: 16
  • Signal Type: Current sourcing, current limiting
  • HART: No
  • SOE: No
  • Redundancy: No
  • High Integrity: No
  • Intrinsic Safety: No
  • Mechanics: S800

Detailed Data

  • Isolation: Groupwise isolated from ground
  • Output Load: < 0.4 Ω
  • Current Limiting: Short circuit proof current limited output
  • Maximum Field Cable Length: 600 meters (656 yards)
  • Rated Insulation Voltage: 50 V
  • Dielectric Test Voltage: 500 V a.c.
  • Power Dissipation: Typ. 2.1 W
  • Current Consumption +5 V Modulebus: 80 mA

Compatibility

  • Use with MTU: TU810, TU812, TU814, TU830
  • Keying Code: AA

Dimensions

  • Width: 45 mm (1.77”)
  • Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
  • Height: 119 mm (4.7”)
  • Weight: 0.18 kg (0.4 lbs.)
