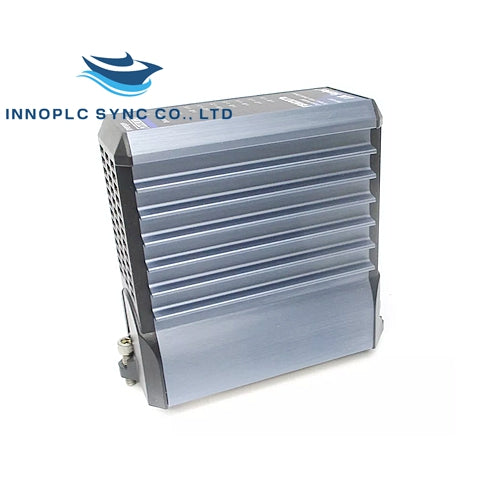

Compact FBM207b Contact Sense Input Interface Module | Foxboro
SKU: FBM207b

  • Manufacturer: Foxboro

  • Product No.: FBM207b

  • Condition：In stock

  • Product Type: Contact Sense Input Interface Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 185g

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

The Compact FBM207b Contact Sense Input Interface Module from Foxboro is a versatile, reliable module designed for industrial control systems. It features 16 isolated input channels and supports pulse counting, ladder logic, and event sequencing with configurable input filters. The module is designed to withstand harsh environments, making it ideal for use in Class G3 conditions.

Features

  • Sixteen Discrete Inputs: 24 V dc contact sense, each channel galvanically isolated.
  • Flexible Module Options: Available as single or redundant modules.
  • Rugged Design: Built for installation in harsh environments (Class G3).
  • Advanced Logic Support: Executes programs for discrete input, ladder logic, pulse count, and sequence of events.
  • Termination Assemblies: Supports local or remote field wiring connections.

Functional Specifications

  • Communication: Interfaces with FCM or FCP via 2 Mbps redundant Fieldbus.
  • Input: 16 isolated and independent channels.
  • Accuracy: Pulse count without missing pulses, 0 to 250 Hz.
  • Contact Sensor Function:
    • Open-Circuit Voltage: 24 V dc ±15%.
    • Short-Circuit Current: 3.2 mA (typical).
    • Logic One (On-State Resistance): 1.0 kΩ max.
    • Logic Zero (Off-State Resistance): 100 kΩ min.
    • Isolation: Galvanic isolation withstanding 600 V ac for 1 minute.

Power Requirements

  • Input Voltage Range (Redundant): 24 V dc +5%, -10%.
  • Maximum Power Consumption: 5 W.
  • Heat Dissipation: 5 W.
  • Loop Power Supply Protection: Current limited to 3.2 mA (typical).

Environmental Specifications

  • Operating Temperature:
    • FBM207b: -20°C to +60°C (-4°F to +140°F).
    • Termination Assembly: PVC: -20°C to +50°C (-4°F to +122°F); PA: -20°C to +70°C (-4°F to +158°F).
  • Relative Humidity: 5 to 95% (non-condensing).
  • Altitude: -300 to +3,000 m (-1,000 to +10,000 ft).
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Vibration: 7.5 m/s² from 5 to 500 Hz.
  • Contamination: Suitable for Class G3 (Harsh) environments per ISA Standard S71.04.

Physical Specifications

  • Mounting:
    • Module: Mounts on Compact 200 Series 16-slot horizontal baseplate.
    • Termination Assembly: Mounts on DIN rail, compatible with multiple rail styles (32 mm or 35 mm).
  • Mass:
    • Module: 185 g (6.5 oz).
    • Termination Assembly (Compression): 127 mm (5.02 in) – 272 g (0.60 lb); 146 mm (5.75 in) – 317 g (0.7 lb).
    • Termination Assembly (Ring Lug): 198 mm (7.78 in) – 400 g (0.90 lb); 216 mm (8.51 in) – 440 g (1.0 lb).
  • Dimensions:
    • Module: 130 mm (5.12 in) height, 25 mm (0.98 in) width, 150 mm (5.9 in) depth.

Part Numbers

  • Compact FBM207b Module: RH101AF
  • Redundant Adapter: RH101AZ
  • Termination Cables: Up to 30 m (98 ft), PVC or Low Smoke Zero Halogen (LSZH), 37-pin male D-subminiature.

Cable Specifications

  • Cable Length: Up to 30 m (98 ft).
  • Cable Material: PVC or Low Smoke Zero Halogen (LSZH).
  • Cable Connection: 37-pin male D-subminiature.
  • Wiring Sizes:
    • Compression: 0.2 to 4 mm² (24 to 12 AWG).
    • Ring Lug: #6 size connectors (0.375 in, 9.5 mm), 0.5 to 4 mm² (22 AWG to 12 AWG).
Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

Check now

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
Check now
