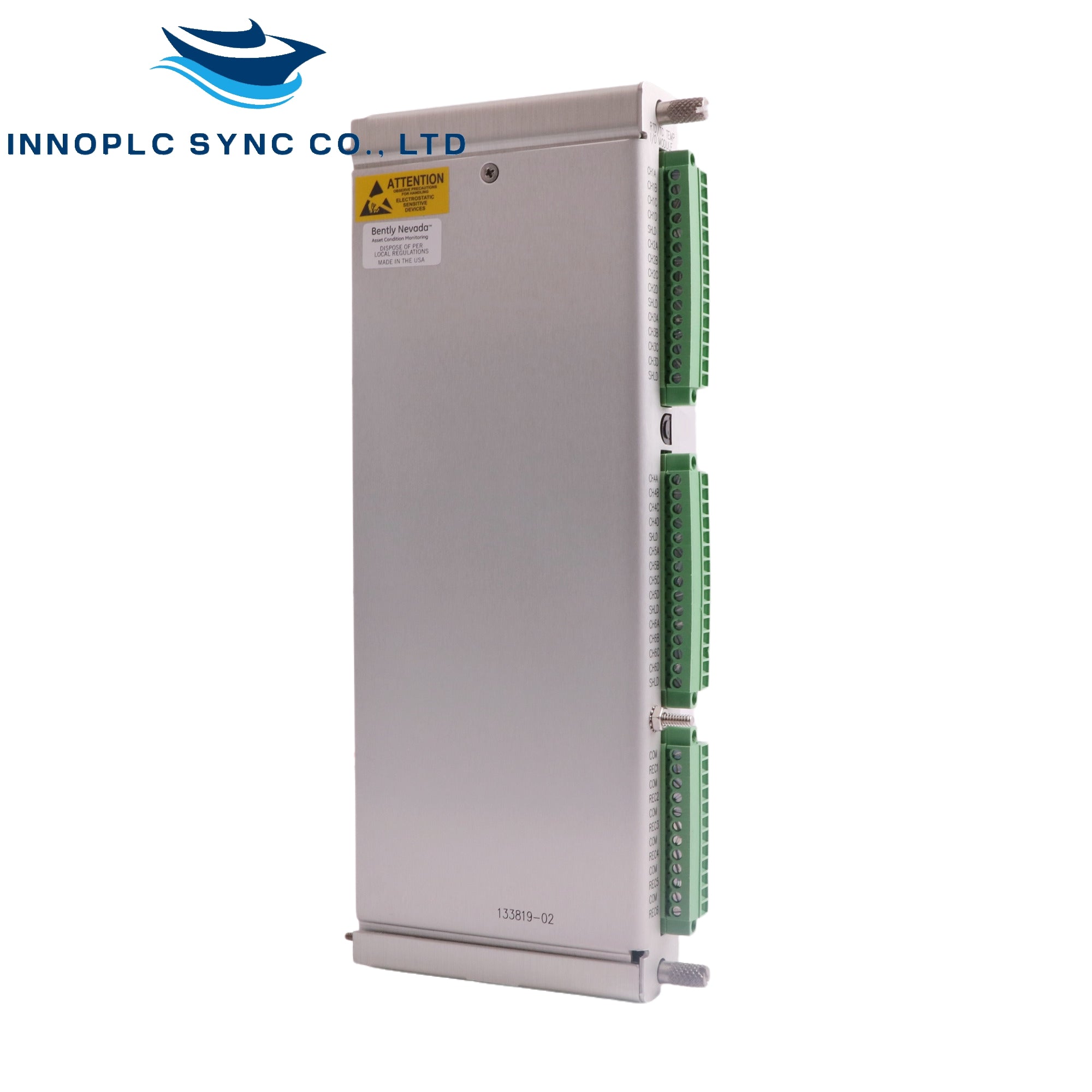

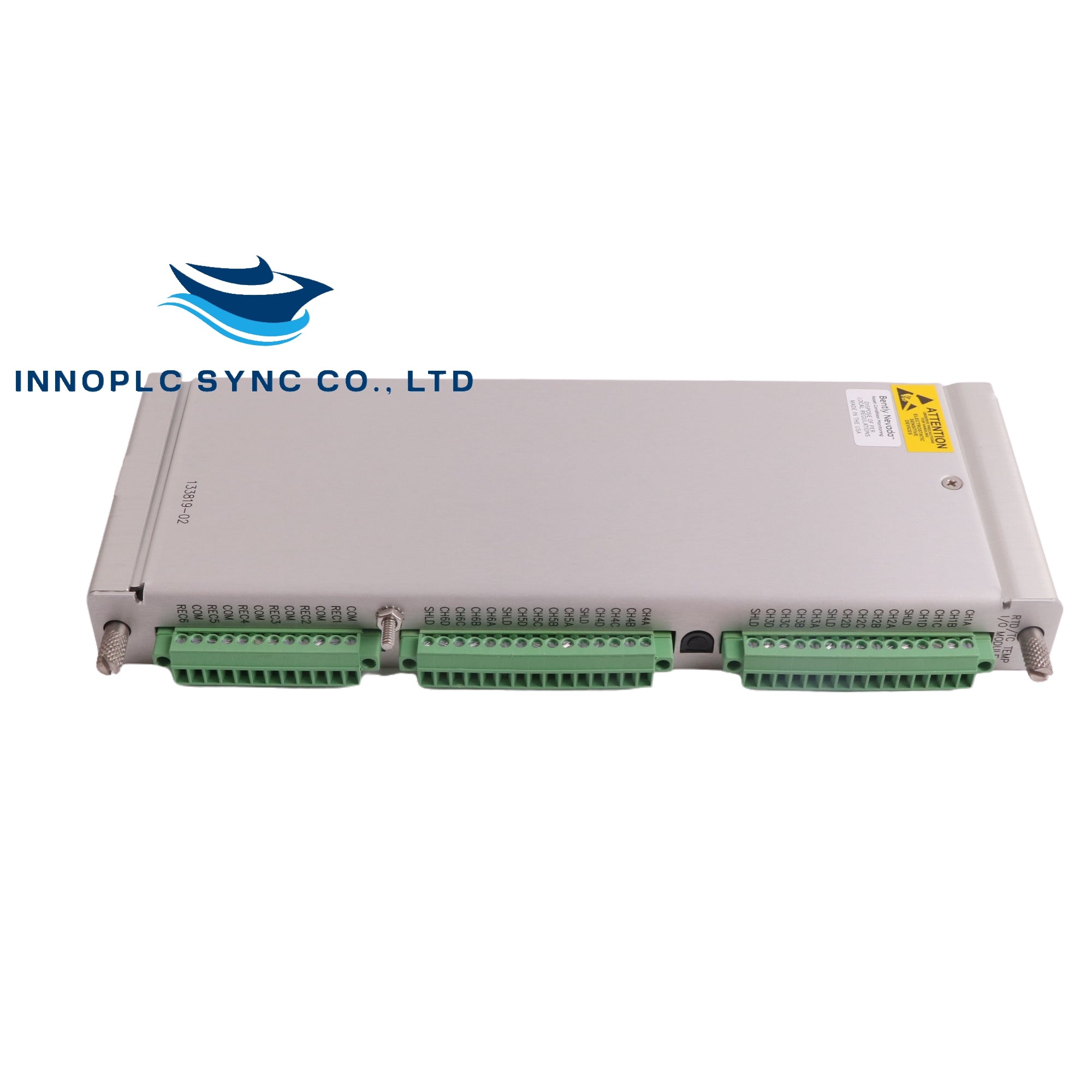

Bently Nevada|3500/61 133819-02| I/O Module

SKU: 133819-02

Manufacturer: Bently Nevada
Product No.: 133819-02
Condition：In stock
Product Type: I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

The 3500/60 and 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. These modules condition the inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 offer identical functionality, with the key difference being that the 3500/61 provides recorder outputs for each of its six channels, while the 3500/60 does not.

Temperature Monitoring: Six channels of temperature monitoring.
Input Types: Accepts both RTD and TC temperature inputs.
Alarm Setpoints: User-programmable alarm setpoints.
Configuration: The modules can be programmed to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software.
I/O Module Types:
- RTD/TC Non-Isolated I/O Module with Internal Terminations
- RTD/TC Non-Isolated I/O Module with External Terminations
- TC Isolated I/O Module with Internal Terminations
- TC Isolated I/O Module with External Terminations
- RTD/TC Non-Isolated I/O Module with Internal Barriers
Channel-to-Channel Isolation: The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
Triple Modular Redundant (TMR) Configuration: When used in TMR configuration, temperature monitors must be installed adjacent to each other in groups of three. The system employs two types of voting to ensure accurate operation and to avoid single-point failures.

Recorder Outputs

3500/61-AA-BB
- A: I/O Module Type
  - 01: RTD/TC Non-isolated I/O Module with Internal Terminations
  - 02: RTD/TC Non-isolated I/O Module with External Terminations
  - 03: TC Isolated I/O Module with Internal Terminations
  - 04: TC Isolated I/O Module with External Terminations
  - 05: RTD/TC Non-isolated I/O Module with Internal Barriers
- B: Agency Approval Option
  - 00: None
  - 01: CSA/NRTL/C (Class 1, Div 2)
  - 02: ATEX/IECEx/CSA (Class 1, Zone 2)
