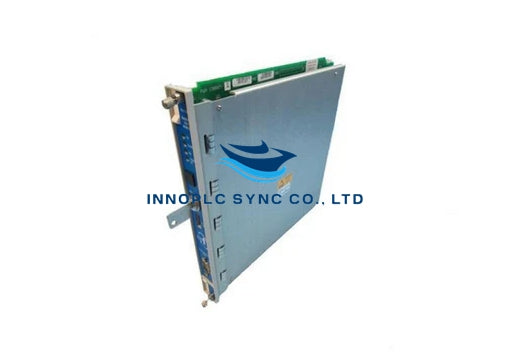

Bently Nevada|3500/53 133388-01|Overspeed Detection Module

SKU: 133388-01

Manufacturer: BENTLY NEVADA
Product No.: 133388-01
Condition：In stock
Product Type: Overspeed Detection Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Product Description

The Bently Nevada 133388-01 Electronic Overspeed Detection System for the 3500 Series Machinery Detection System offers a highly reliable and fast response solution for overspeed protection. Specifically designed to meet the standards set by the American Petroleum Institute (API) Standards 670 and 612, this system provides redundant tachometer functionality, ensuring robust protection against overspeed conditions.

Key Features:

Highly reliable and fast response
Redundant tachometer system
Designed to meet API Standards 670 and 612

Specifications:

Inputs:

Signal Range: +10.0 V to -24.0 V
Input Impedance: 20 kΩ
Power Consumption: 8.0 watts (typical)

Outputs:

Output Impedance: 550 Ω
Transducer Power Supply: -24 Vdc, 40 mA maximum
Recorder: +4 to +20 mA, proportional to module full-scale range (rpm)
Voltage Compliance (current output): 0 to +12 Vdc range across load
Resolution: 0.3662 µA per bit, ±0.25% error at room temperature, ±0.7% error over temperature range

Relays:

Type: Single-pole, double-throw (SPDT) relays
Contact Ratings Max Switched Power:
- DC: 120 W
- AC: 600 VA
Max Switched Current: 5 A
Min Switched Current: 100 mA @ 5 Vdc
Max Switched Voltage:
- DC: 30 Vdc
- AC: 250 Vac
Contact Life: 100,000 cycles @ 5 A, 24 Vdc or 120 Vac

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
