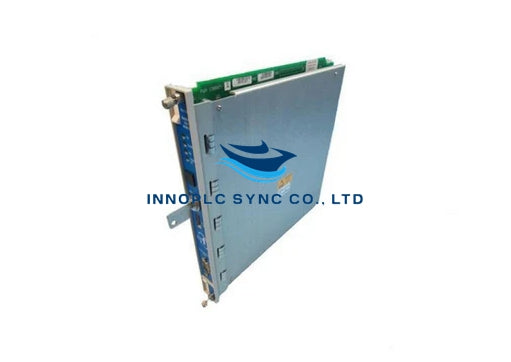

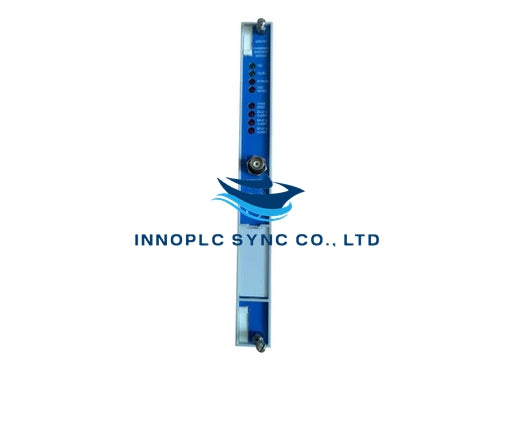

Bently Nevada|288055-01|3500/22M| CPU Module

SKU: 288865-01

Manufacturer: Bently Nevada
Product No.: 288865-01
Condition：In stock
Product Type: CPU Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Inputs:Power Consumption: 10.5 Watts

Data:

Front Panel: 115.2 kbaud maximum RS232 serial communications
10Base-T / 100Base-TX I/O: 10Base-T or 100Base-TX Ethernet, autosensing
100Base-FX I/O: 100Base-FX Fiber-Optic Ethernet

Operating Conditions:

Operating Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Humidity: 95%, non-condensing

Battery Life:

Powered TDI: 38 years @ 50°C (122 °F)
Un-powered TDI: 12 years @ 50°C (122 °F)

Hazardous Area Approvals:

North American Approval Option (01): Class 1, Div 2, Groups A, B, C, D, T4 @ Ta = -20 °C to +65 °C (-4 °F to +150 °F)
North American Approval Option (02): Ex nC[L] IIC, Class 1, Zone 2, Class 1, Div 2, Groups A, B, C, D, T4 @ Ta = -20 °C to +65 °C (-4 °F to +150 °F)
ATEX Approval Option (02): II 3/(3) G, Ex nC[L] IIC, T4 @ Ta = -20 °C to +65 °C (-4 °F to +150 °F)

Physical:

TDI Module Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Weight: 0.91 kg (2.0 lbs)
