Bently Nevada | 2300/20-00 | Condition Monitoring System Kit

SKU: 2300/20-00

Manufacturer: BENTLY NEVADA
Product No.: 2300/20-00
Condition：In stock
Product Type: Condition Monitoring System Kit
Product Origin: USA
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description:

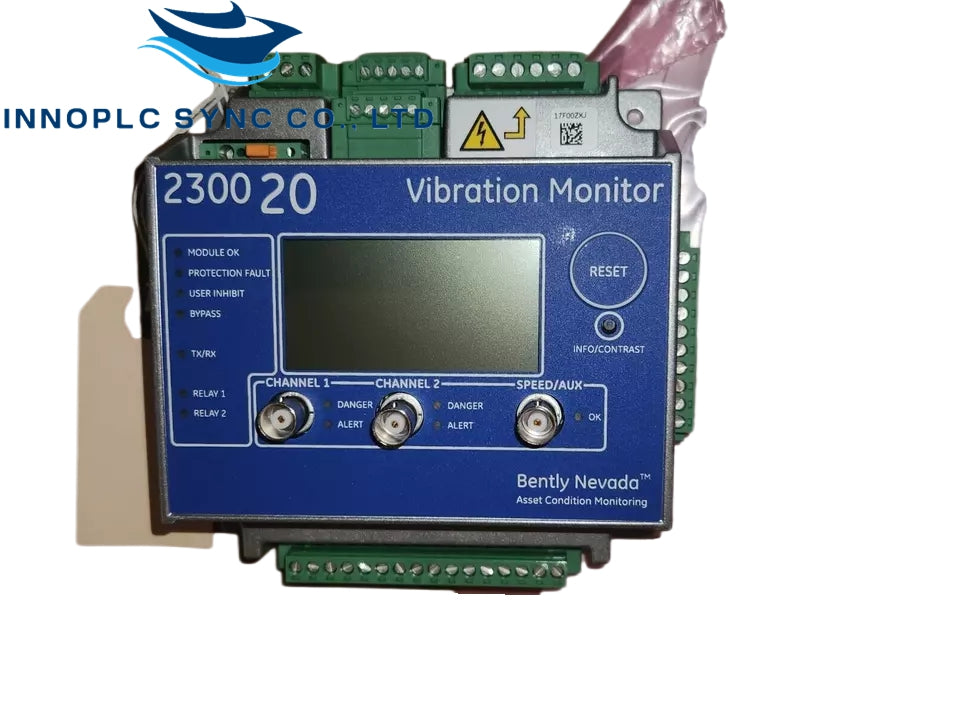

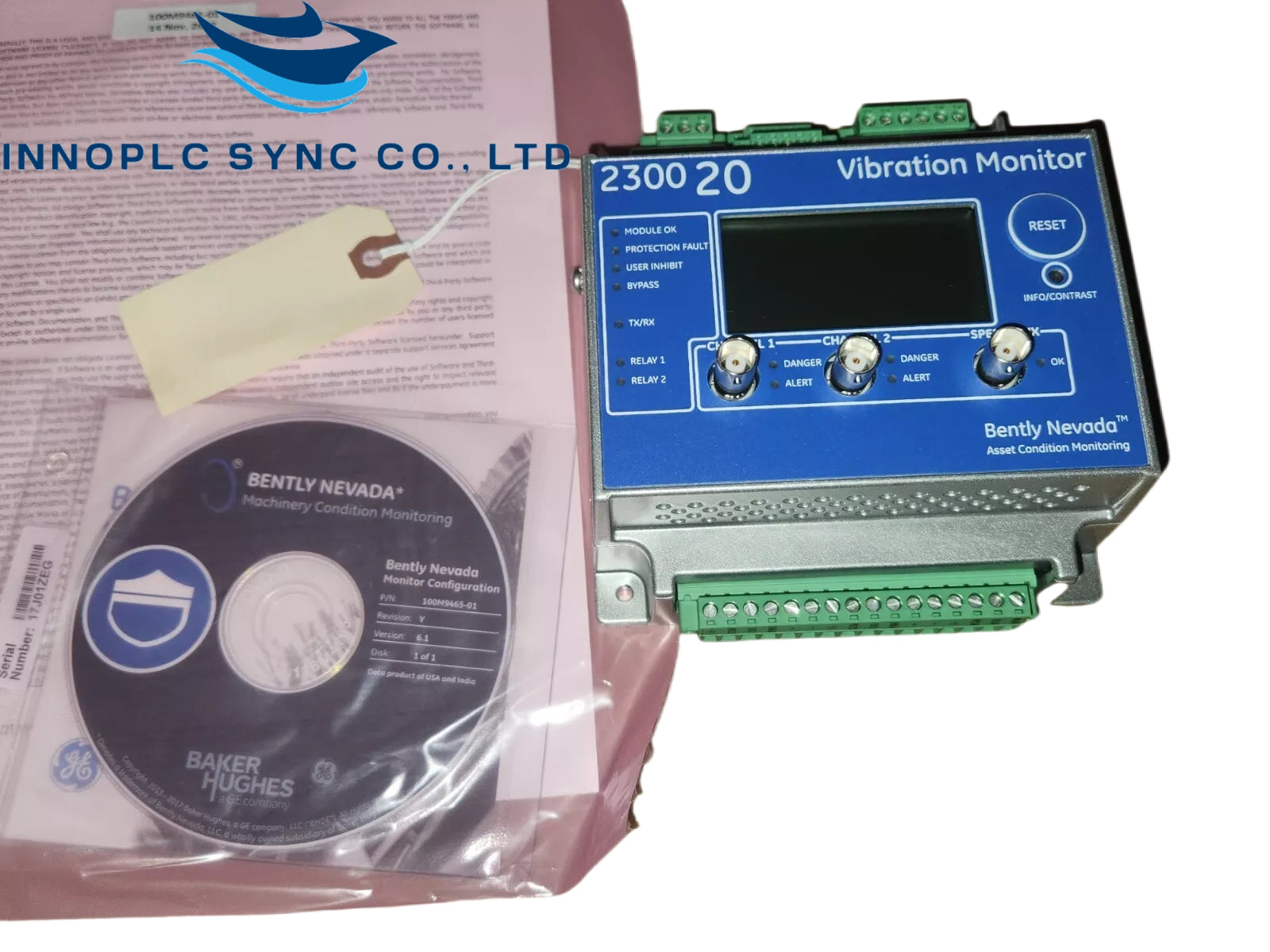

The Bently Nevada 2300/20-00 Vibration Monitor is designed for continuous vibration monitoring and protection of medium to low criticality machinery. It is suitable for industries such as oil & gas, power generation, water treatment, pulp and paper, manufacturing, mining, and cement. This monitor provides cost-effective vibration monitoring and high vibration level alarming.

Features:

Continuous monitoring and protection.
Two channels for seismic or proximity measurements.
One dedicated speed channel.
Configurable 4-20 mA output for DCS interface.
Real-time key measurements (acceleration, velocity, displacement, speed) with alarm configuration.
LCD and LED for real-time value and status display.
Ethernet 10/100 Base-T communication with RSA encryption.
Local contacts for monitor bypass, configuration lockout, and latched alarm/relay reset.

Technical Specifications:

Model Number: 2300/20-00
Channels: 2 acceleration/velocity/proximity inputs, 1 speed channel
Output: 2 configurable 4-20 mA outputs with internal current loop power supply
Measurements: Acceleration pk/rms, Velocity pk/rms, Displacement pp/rms, Speed
Display: LCD and LED
Communication: Ethernet 10/100 Base-T
Mounting: Panel mount or DIN rail (adapter included)
Dimensions: 127mm x 127mm x 76.2mm (5in. x 5in. x 3in.)
Weight: 1.03 kg (2.26 lbs)
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Compliance: FCC, EMC, Electrical Safety, ATEX, RoHS

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
