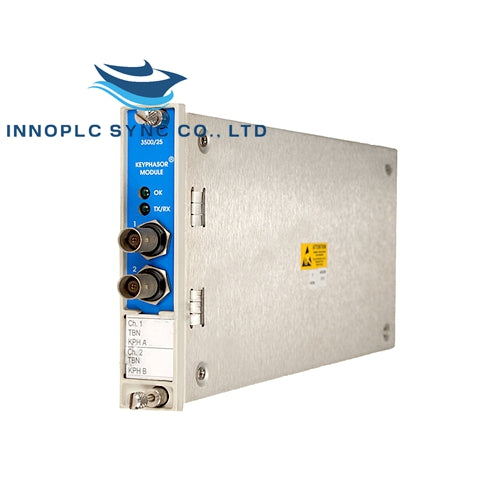

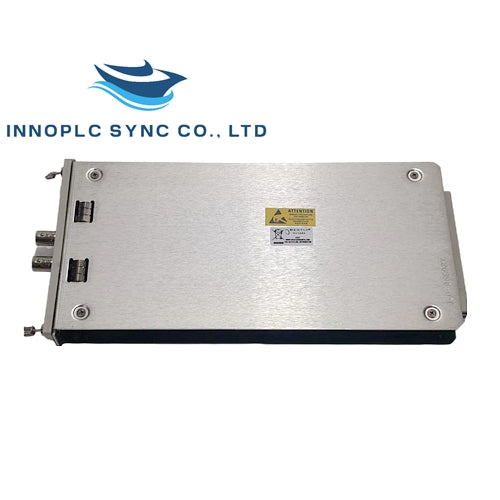

Bently Nevada 149369-01 Enhanced Keyphasor Module

SKU: 149369-01

Manufacturer: Bently Nevada
Product No.: 149369-01
Condition：In stock
Product Type: Enhanced Keyphasor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Bently Nevada 149369-01 is an Enhanced Keyphasor Module designed to provide precise timing measurements for machinery monitoring. It is part of the 3500 Machinery Protection System, converting input signals from proximity probes or magnetic pickups into digital Keyphasor signals.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada (Baker Hughes)
Product No.	149369-01
Product Type	Enhanced Keyphasor Module
Input Signal Range	+0.8 V to -21.0 V (Non-Isolated I/O modules)
	+5V to -11V (Isolated I/O modules)
Input Impedance	21.8 kΩ minimum
Input Range	1 to 1,200,000 cpm (0.017 to 20 kHz)
Output Range	1 to 99,999 cpm (0.017 to 1667 Hz)
Output Impedance	504 Ω maximum buffered output impedance
Power Consumption	3.2 Watts typical
Power Supply	-24 VDC, 40 mA maximum per channel

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
