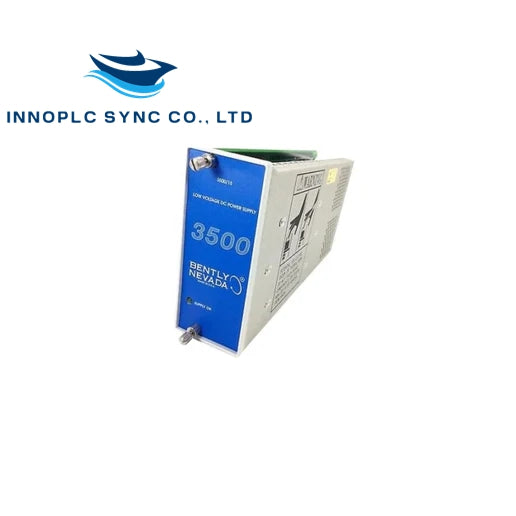

Bently Nevada | 127610-01 | 3500/15 AC Power Supply Module

SKU: 3500/15 127610-01

Manufacturer: BENTLY NEVADA
Product No.: 3500/15 127610-01
Condition：In stock
Product Type: Power Supply Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Manufacturer: Bently Nevada
Model: 3500/15-01-01-00
Ordering Information: 127610-01
Catalog: 3500
Description: Bently Nevada 3500/15-01-01-00 AC Power Supply Module
Origin: United States (US)
HS Code: 85389091
Dimensions: 16 cm x 16 cm x 12 cm
Weight: 0.8 kg

Details

The 3500/15 AC and DC Power Supplies are half-height modules designed for installation in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies in any combination of AC and DC.

Power Supply Functionality:
- Either supply can power a full rack.
- If two power supplies are installed, the lower slot acts as the primary supply and the upper slot serves as the backup.
- Removing or inserting either module does not disrupt operation as long as a second supply is installed.
Input Voltage Range:
- Accepts a wide range of input voltages and converts them for use by other 3500 modules.
Available Power Supplies:
- Universal AC Power
- High Voltage DC Power Supply
- Low Voltage DC Power Supply

Compatibility Note: The Universal AC Power Supply and PIM (Power Input Module) are not compatible with legacy 3500 models.

Ordering Information

Power Supply Module Code Format: 3500/15 - - AA - BB - CC

A: Power Supply Type (Top Slot)
- 01: Low Voltage AC (85 to 132 Vac rms)
- 02: High Voltage AC (175 to 264 Vac rms)
- 03: High Voltage DC (88 to 140 Vdc)
- 04: Low Voltage DC (20 to 30 Vdc)
B: Power Supply Type (Bottom Slot)
- 00: No supply (for single supply configurations)
- 01: Low Voltage AC (85 to 132 Vac rms)
- 02: High Voltage AC (175 to 264 Vac rms)
- 03: High Voltage DC (88 to 140 Vdc)
- 04: Low Voltage DC (20 to 30 Vdc)
C: Agency Approval Option
- 00: None
- 01: CSA/NRTL/C
- 02: ATEX/CSA (Class 1, Zone 2)
