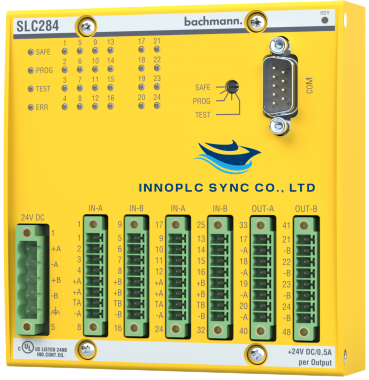

Bachmann|SLC284 | Safety Processor Module

SKU: SLC284

Manufacturer: Bachmann
Product No.: SLC284
Condition：In stock
Product Type: Safety Processor Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Overview: The SLC284 is an independent, safe, and modern safety controller designed for integration with the M1 controller.
Approval: IEC 61508
Communication: No additional cabling needed for communication with safety I/O modules SDI208 and SDO204 via FASTBUS, CAN, or bluecom.

Features

Processor: 2x LPC2468, 72 MHz, 32-bit
Program Cycle: Minimum 5 ms
I/O Expansion: Via SDI208, SDO204, or SCT202 modules
Digital Inputs: 16 inputs, can be used redundantly in pairs (PL e/SIL3/Cat 4)
- Input voltage range (H): 15 to 34 V DC
- Input voltage range (L): -34 to +5 V DC
- Input delay: HW 300 µs, SW 1 ms
Digital Outputs: 8 outputs, can be used redundantly in pairs (PL e/SIL3/Cat 4)
- Output voltage range: 18 to 34 V DC
- Output current per channel: 0.5 A nominal
- Total current per group: 2 A
- Delay: 0 to 1 Max. 35 µs, 1 to 0 Max. 155 µs
- Switching frequency: 500 Hz
- Emergency shut-off: Configurable from 0 to 1800 s (resolution 100 ms)
Galvanic Isolation: 500 V between groups and system bus
Power Supply: 24 V DC (18 to 34 V), reverse polarity protection
Current Consumption: Internal 5 V / 550 mA via backplane, external 95 mA at +24 VDC
Connection Technology: I/O and power supply via screw or spring terminal connectors
Status Display: LEDs for each channel, operating modes (SAFE, PROG, TEST, ERROR)
Programming: Via controller (I/O bus) or serial interface (COM)
Operating Mode Selector: Hex switch
Approvals: CE, cULus, CCC, DNV GL, LR, ABS, BV, NK, KR, RINA
