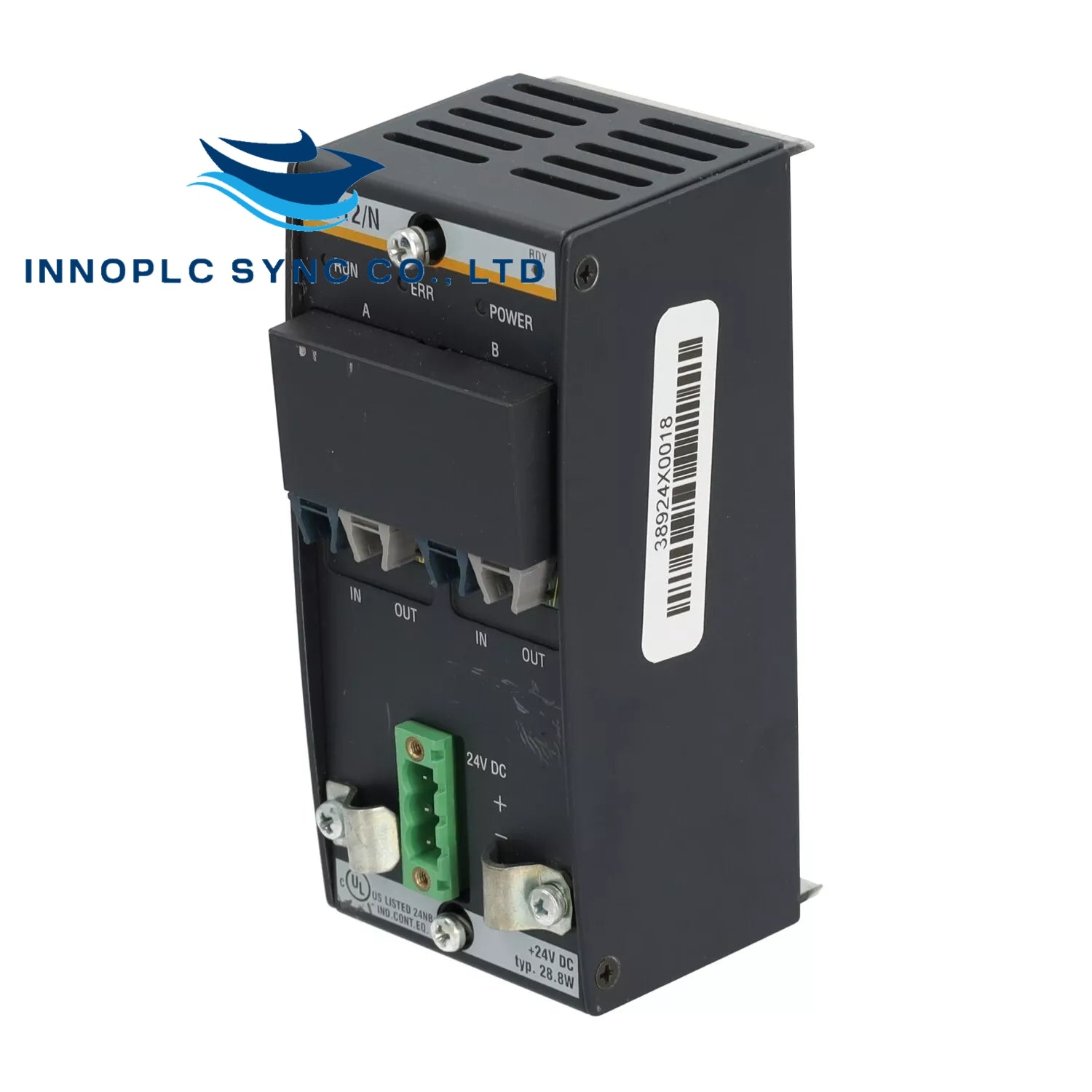

Bachmann|FS221/N| FASTBUS Slave Module

SKU: FS221/N

Manufacturer: Bachmann
Product No.: FS221/N
Condition：In stock
Product Type: FASTBUS Slave Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Overview: The FS221/N is a FASTBUS slave module designed for long-distance signal distribution with minimal delay.
Power Supply: Integrated power supply for I/O modules of a substation.
Connection: Robust Harting PushPull® connector or LC patch cable.

Features

FO Interface: 1 FO-port
Fiber Type: 50/62.5 µm multimode fiber
Distance: Up to 2000 m
Signal Delay: Minimal
ColdClimate Model: Available
Diagnostic LEDs: Three-color status LED for received light output
Software Diagnostics: 0 – 100%

Specifications

Line Length: 2000 m between stations, total length max: 2300 m
Transmission Medium: Multimode fiber (50/125 µm and 62.5/125 µm)
Connector Type: LC
Guide Wavelength: 1310 nm
Number of Stations: Max. 16 (max. 10 per line)
Link Budget: > 8 dB (3 dB reserve)

Power Supply

Input Voltage: 24 VDC (18 to 34 V)
Nominal Power: 18.25 W
Output Current:
- +5 V: 3000 mA
- +15 V: 250 mA
- -15 V: 200 mA
