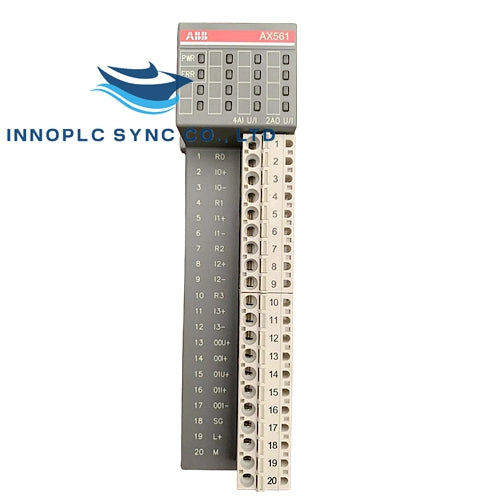

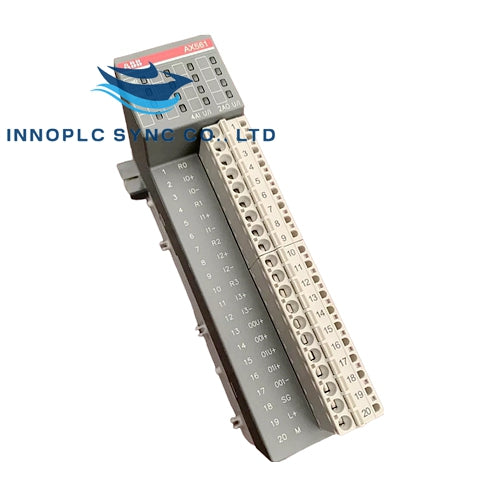

AX561 | ABB | Analog Input/Output Module

SKU: AX561

Manufacturer: ABB
Product No.: AX561
Condition：In stock
Product Type: Analog Input/Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Ordering Information

Part no: 1TNE 968 902 R1301
Description: AX561, analog input/output module, 4 AI, 2 AO, U/I
Product life cycle phase: Active
Part no: 1TNE 968 901 R3101
Description: Terminal block TA563-9, 9 pins, screw front, cable side, 6 pieces per unit
Product life cycle phase: Active
Part no: 1TNE 968 901 R3102
Description: Terminal block TA563-11, 11 pins, screw front, cable side, 6 pieces per unit
Product life cycle phase: Active
Part no: 1TNE 968 901 R3103
Description: Terminal block TA564-9, 9 pins, screw front, cable front, 6 pieces per unit
Product life cycle phase: Active
Part no: 1TNE 968 901 R3104
Description: Terminal block TA564-11, 11 pins, screw front, cable front, 6 pieces per unit
Product life cycle phase: Active
Part no: 1TNE 968 901 R3105
Description: Terminal block TA565-9, 9 pins, spring front, cable front, 6 pieces per unit
Product life cycle phase: Active
Part no: 1TNE 968 901 R3106
Description: Terminal block TA565-11, 11 pins, spring front, cable front, 6 pieces per unit
Product life cycle phase: Active

Technical Specifications

Process supply voltage (L+): 24 V DC
Current consumption via L+: 0.14 A + output load
Inrush current: 0.05 A
Max. ripple: 5 %
Reverse voltage protection: Yes
Recommended protection fuse: Yes
Current consumption from 24 V DC (CPU/communication interface module): 5 mA
Galvanic isolation: No
Surge voltage (max.): 35 V DC for 0.5 s
Max. power dissipation: 4.9 W
Weight: 120 g
Mounting position: Horizontal or vertical
Cooling: Unobstructed natural convection

Analog Inputs

Number of channels per module: 4 individually configurable voltage or current inputs
Channel distribution: 1 group (4 channels per group)
Voltage input ranges:
- Unipolar: 0 V ... +5 V, 0 V ... +10 V, 12 bits
- Bipolar: -2.5 V ... +2.5 V, -5 V ... +5 V, 12 bits (including sign)
Current input ranges:
- Unipolar: 0 mA ... 20 mA, 4 mA ... 20 mA, 12 bits
Signal connection (I0- to I3-): Terminals 3, 6, 9, 12
Signal connection (I0+ to I3+): Terminals 2, 5, 8, 11
Input type: Differential
Common mode input range: ± 12 V
Input resistance (voltage): >1 MW
Input resistance (current): 250 W
Conversion error: Typ. ± 0.5 % (voltage/current), Max. ± 2 % (temperature/EMC disturbance)
Input filter time constant (voltage): 300 µs
Input filter time constant (current): 300 µs
Analog to digital conversion time: 500 µs per channel
Unused inputs: Can be left open and configured as "unused"
Input data length: 8 bytes
Overvoltage protection: Yes, up to 30 V DC (voltage input)
Max. cable length (unshielded wire): 10 m
Max. cable length (shielded wire): 100 m

Analog Outputs

Number of channels per module: 2 configurable voltage or current outputs
Channel distribution: 1 group (2 channels per group)
Signal connection (O0U- and O1U+): Terminals 13 and 15
Signal connection (O0I+ and O1I+): Terminals 14 and 16
Output type: Bipolar with voltage, unipolar with current
Resolution: 12 bits (including sign)
Output resistance (current output): 0 W ... 500 W
Output load ability (voltage output): 2 mA max.
Conversion error: Typ. ± 0.5 % (voltage/current), Max. ± 2 % (temperature/EMC disturbance)
Unused outputs: Can be left open and configured as "unused"
Output data length: 4 bytes
Overvoltage protection: Yes, up to 30 V DC
Max. cable length (unshielded wire): 10 m
Max. cable length (shielded wire): 100 m
