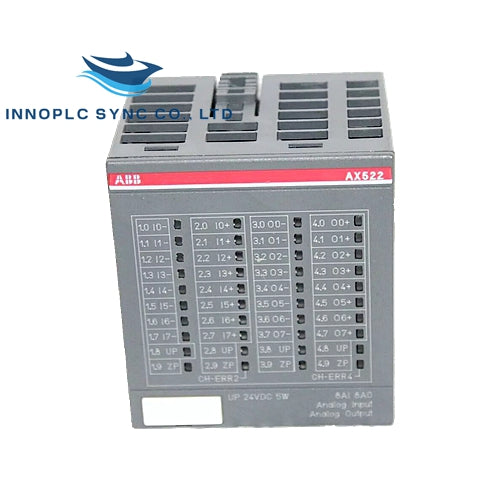

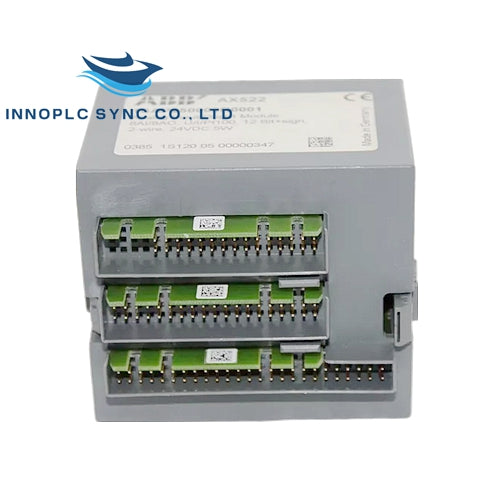

AX522 | ABB | AC500 Analog Input/Output Module

SKU: AX522

Manufacturer: ABB
Product No.: AX522
Condition：In stock
Product Type: Analog Input/Output Module
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Overview

AX522 is an ABB analog input/output module designed with 8 analog inputs and 8 analog outputs. It supports voltage, current, and temperature sensor configurations, with a resolution of 12 bits + sign.

Ordering Information

1SAP 250 000 R0001: Standard AX522 module, active
1SAP 450 000 R0001: AX522-XC for extreme conditions, active

General Specifications

Process Voltage: 24 VDC (±15%), protected against reverse polarity
Ripple Tolerance: Maximum 5%
Current Consumption: ~2 mA from CPU supply, 0.15 A + output loads during normal operation
Galvanic Isolation: Provided for all modules
Weight: 300 g
Mounting Position: Horizontal or vertical with reduced output load at higher temperatures

Analog Input Specifications

Channels: 8 inputs, configured individually
Supported Signals: Voltage (0 V...10 V, ±10 V), Current (0 mA...20 mA, 4 mA...20 mA), Pt100/Pt1000/Ni1000 sensors
Input Resistance: Voltage > 100 kΩ; Current ~330 Ω
Conversion Cycle: 2 ms for all channels; 1 s for temperature sensors
Resolution: 12 bits for all ranges
Accuracy: Typical ±0.5% of full scale at 25°C; Maximum ±1% at 0–60°C

Analog Output Specifications

Channels: 8 outputs; the first 4 support current configuration
Supported Signals: Voltage (±10 V), Current (0 mA...20 mA, 4 mA...20 mA)
Output Load: Up to 500 Ω for current, ±10 mA for voltage
Resolution: 12 bits + sign
Accuracy: Typical ±0.5% of full scale at 25°C; Maximum ±1% at 0–60°C

Environmental Conditions

24 VDC Supply: Voltage -15% to +20%, interruption <10 ms
AC Supply (120/230 VAC): Voltage -15% to +10%, frequency 50/60 Hz (-6%, +4%)
Wide Range Supply: 120–240 VAC (-15%, +10%)
Temperature Range: Compliant with EN 61131-2 standards
