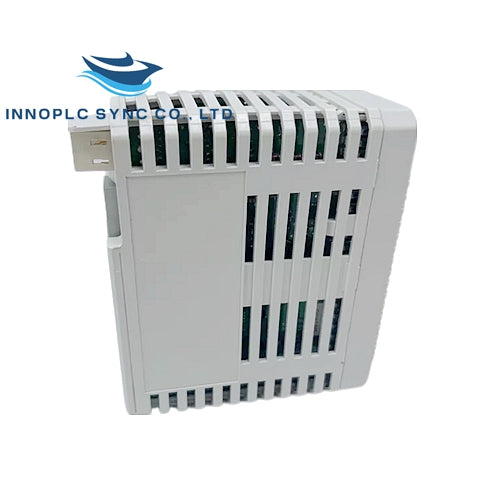

AO815 | ABB | S800 I/O | Analog Output

SKU: AO815

Manufacturer: ABB
Product No.: AO815
Condition：In stock
Product Type: Analog Output
Product Origin: USA
Payment:T/T, Western Union
Weight: 210g
Shipping port: Xiamen
Warranty: 12 months

Overview

The AO815 is an ABB Analog Output module designed for the S800 I/O system. It provides precise analog signal output capabilities, supporting 4-20 mA signals. This module is ideal for controlling actuators, valves, and other analog devices in industrial automation applications, ensuring reliable performance and seamless integration into ABB’s automation systems.

General Information

Article Number: 3BSE052605R1
Type: Analog Output
Signal Specification: 4..20 mA
Number of Channels: 8
HART: Yes
SOE (Sequence of Events): No
Redundancy: No
High Integrity: No
Intrinsic Safety: No
Mechanics: S800

Detailed Data

Resolution: 12 bit
Isolation: Groupwise isolated from ground
Under/Over Range: -12.5% / +15%
Output Load: Max 750 Ω
Error: Max. 0.1%
Temperature Drift: Max. 50 ppm/°C
Input Filter (Rise Time 0-90%):
- 23 ms (0-90%),
- Max 4 mA / 12.5 ms
Update Cycle Time: 10 ms
Current Limiting: Short circuit-proof current-limited output
Maximum Field Cable Length: 600 meters (656 yards)
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 3.5 W (typ.)
Current Consumption +5 V Modulebus: Max. 125 mA
Current Consumption +24 V Modulebus: 0
Current Consumption +24 V External: Max. 165 mA

Diagnostics

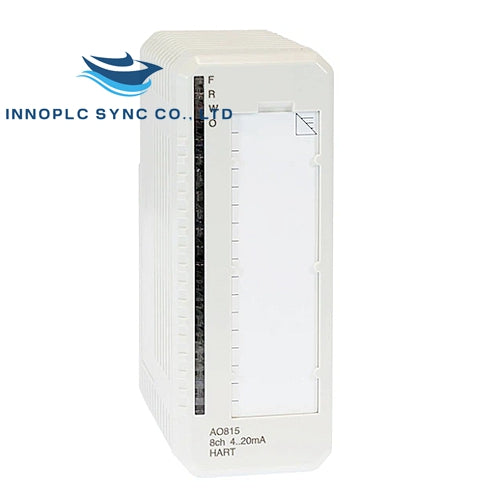

Front LEDs:
- F (Fault)
- R (Run)
- W (Warning)
- O (Output State)
Supervision:
- Module Error: Output power low
- Channel Error: Open circuit (for current > 1 mA)
Status Indication of Supervision:
- Module Error
- Module Warning
- Channel Error

Compatibility

Use with MTU: TU810, TU812, TU814, TU830, TU833
Keying Code: DB

Dimensions and Weight

Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)
Weight: 0.21 kg (0.46 lbs.)
