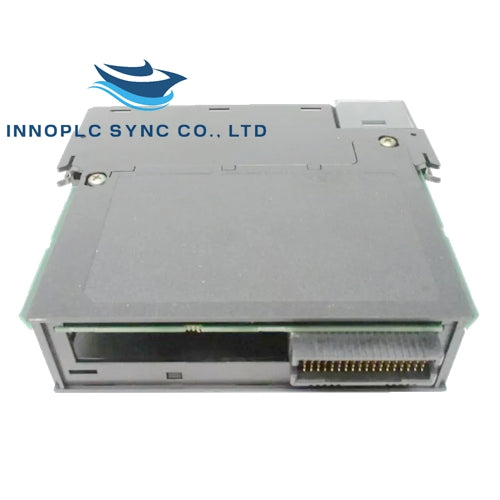

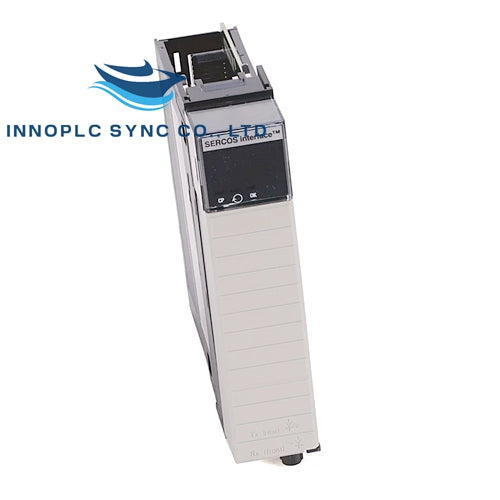

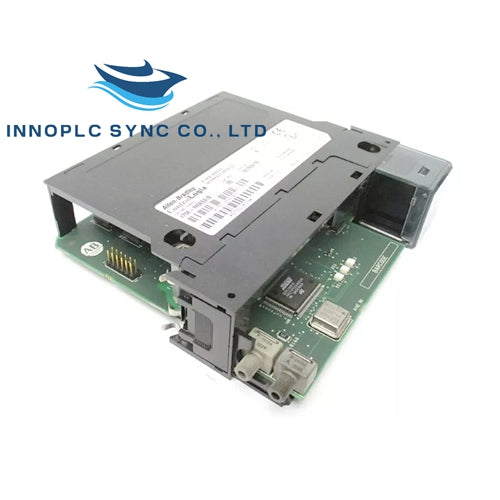

Allen-Bradley Controllogix 1756-M08SE Serco Interface Module

SKU: 1756-M08SE

Manufacturer: Allen-Bradley
Product No.: 1756-M08SE
Condition：In stock
Product Type: Serco Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Allen-Bradley 1756-M08SE is a ControlLogix Serco Interface Module. This module supports up to eight (8) drives with SERCOS data rates of 4 Mbps and 8 Mbps. It supports position, velocity, and torque drive control modes and is compatible with various Kinetix drives, including the 2093 Kinetix 2000 multi-axis servo drive, 2094 Kinetix 6000 multi-axis servo drive, 2099 Kinetix 7000 high-power servo drive, and 2098 Ultra3000 SERCOS servo drive.

Specifications

Manufacturer: Rockwell Automation
Module Type: SERCOS Interface Module
Series: ControlLogix
Part Number/Catalog No.: 1756-M08SE
Enclosure: None
Power Dissipation: 5.0 Watts
Backplane Current (24 Volts): 2.5 milliamps
Backplane Current (5 Volts): 760 milliamps

Supported Data Rates

Data Rate Options: 4 Mbps; 8 Mbps
SERCOS Cycle Time @ 4 Mbps:
- 0.5 ms for up to 2 drives
- 1 ms for up to 4 drives
- 2 ms for up to 8 drives
SERCOS Cycle Time @ 8 Mbps:
- 0.5 ms for up to 4 drives
- 1 ms for up to 8 drives
- 2 ms for up to 16 drives

Compatibility

Compatible Chassis:
- 1756-A4
- 1756-A7
- 1756-A10
- 1756-A13
- 1756-A17
Compatible Power Supplies:
- Standard:
  - 1756-PA72/C
  - 1756-PA75/B
  - 1756-PB72/C
  - 1756-PB75/B
  - 1756-PC75/B
  - 1756-PH75/B
- Redundant:
  - 1756-PA75R
  - 1756-PB75R
  - 1756-PSCA2

Drive Control Modes

Modes Supported: Position, velocity, and torque
Axes per Module: 8
Axes per Controller: 32

Electrical Characteristics

SERCOS Data Rate: 4 or 8 Megabits/Second
Current Draw (5.1 Volts): 1.2 amps
Thermal Dissipation: 21.2 BTU/hour
Isolation Voltage: 50 Volts Continuous

Environmental Specifications

Operating Temperature Range: 0 to 60 °C
Storage Temperature Range: -40 to 85 °C
Relative Humidity: 5% to 95% (non-condensing)
Vibration: 2 g at 10 to 500 Hz
Operating Shock: 30 g
Non-operating Shock: 50 g

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
