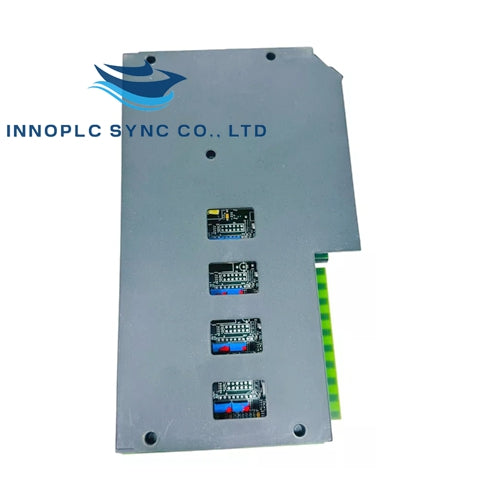

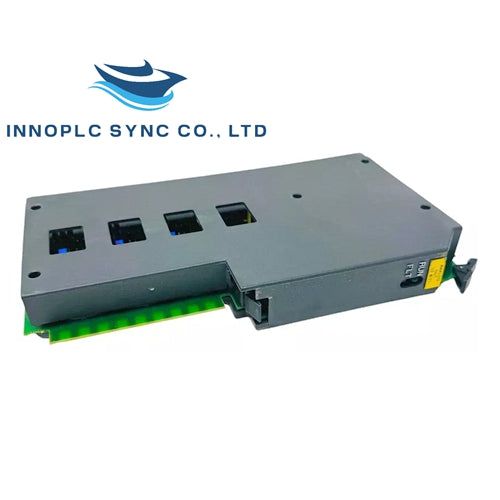

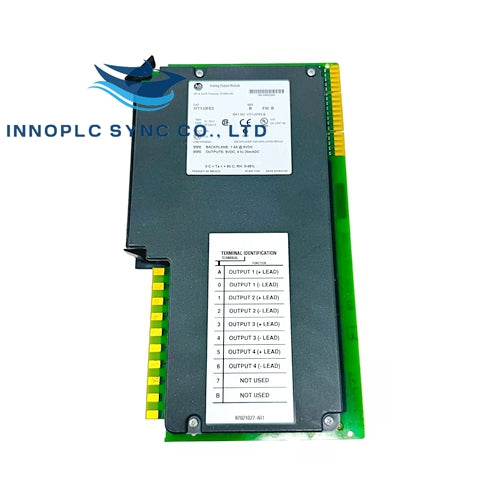

Allen-Bradley | Analog Output Module | 1771-OFE2

SKU: 1771-OFE2

Manufacturer: Allen-Bradley
Product No.: 1771-OFE2
Condition：In stock
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 1771-OFE2 is an analog output module with individually isolated channels. This module is part of the 1771 product bulletin that features four (4) output channels that deliver 4-20 mA output current. It occupies a single slot of any 1771 I/O chassis. This module has a digital resolution of 12-bit binary.

Specifications

Manufacturer: Rockwell Automation
Power Dissipation: 7.9 Watts
Part Number/Catalog No.: 1771-OFE2
Module Type: Individually isolated analog output module
Brand: Allen-Bradley
Series: 1771 Product Bulletin
No. of Outputs: Four (4) outputs
Output Current: 4-20 mA
Module Location: 1771 I/O chassis
Module Width: Single slot
Digital Resolution: 12-bit binary
Backplane Power: 1.50 A
Thermal Dissipation: 26.9 BTU/hr
Keying: Between 10 and 12; Between 26 and 28
Field Wiring Arm: Cat. No. 1771-WC
Wiring Arm Screw Torque: 7-9 inch-pounds
Number of I/O: 4 Isolated (1000 Volt) Differential
Data Format: Natural Binary or BDC Scaling to +/- 9999
Voltage Range: N/A
Current Range: 4-20 Milliamperes
Backplane Current: 1.5 Milliamperes
External Power: None
Wiring Arm: 1771-WH
Coating: Conformal Coat
Typical AC Signal Delay (Off): 45 (+/- 15) ms
Typical DC Signal Delay (Off): 50 ms
Mounting: Rack Mountable
Indicators: 2 LED
