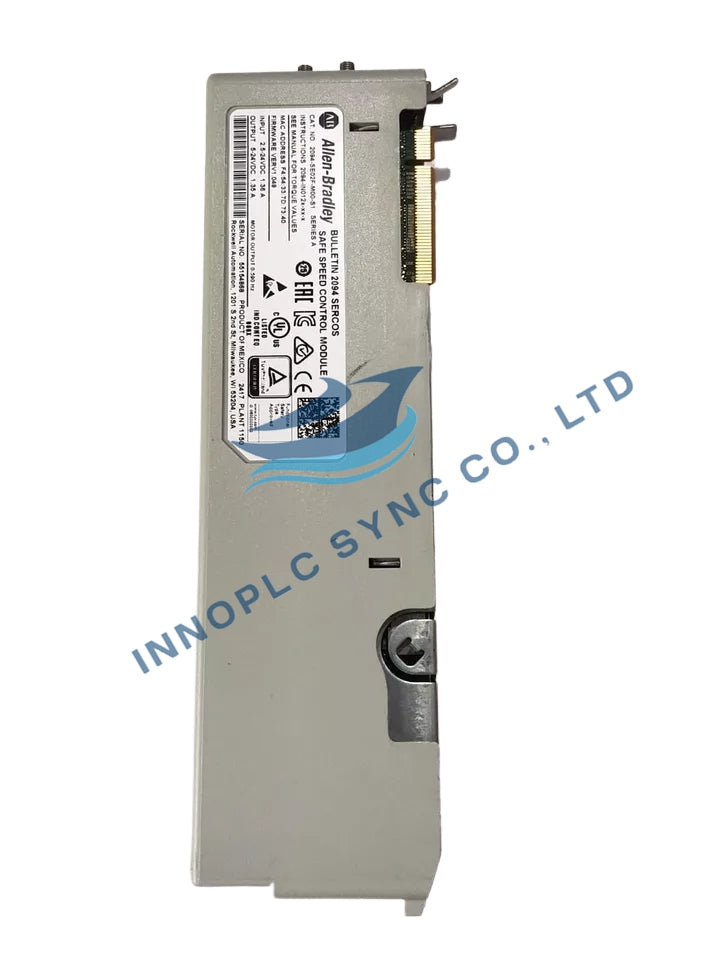

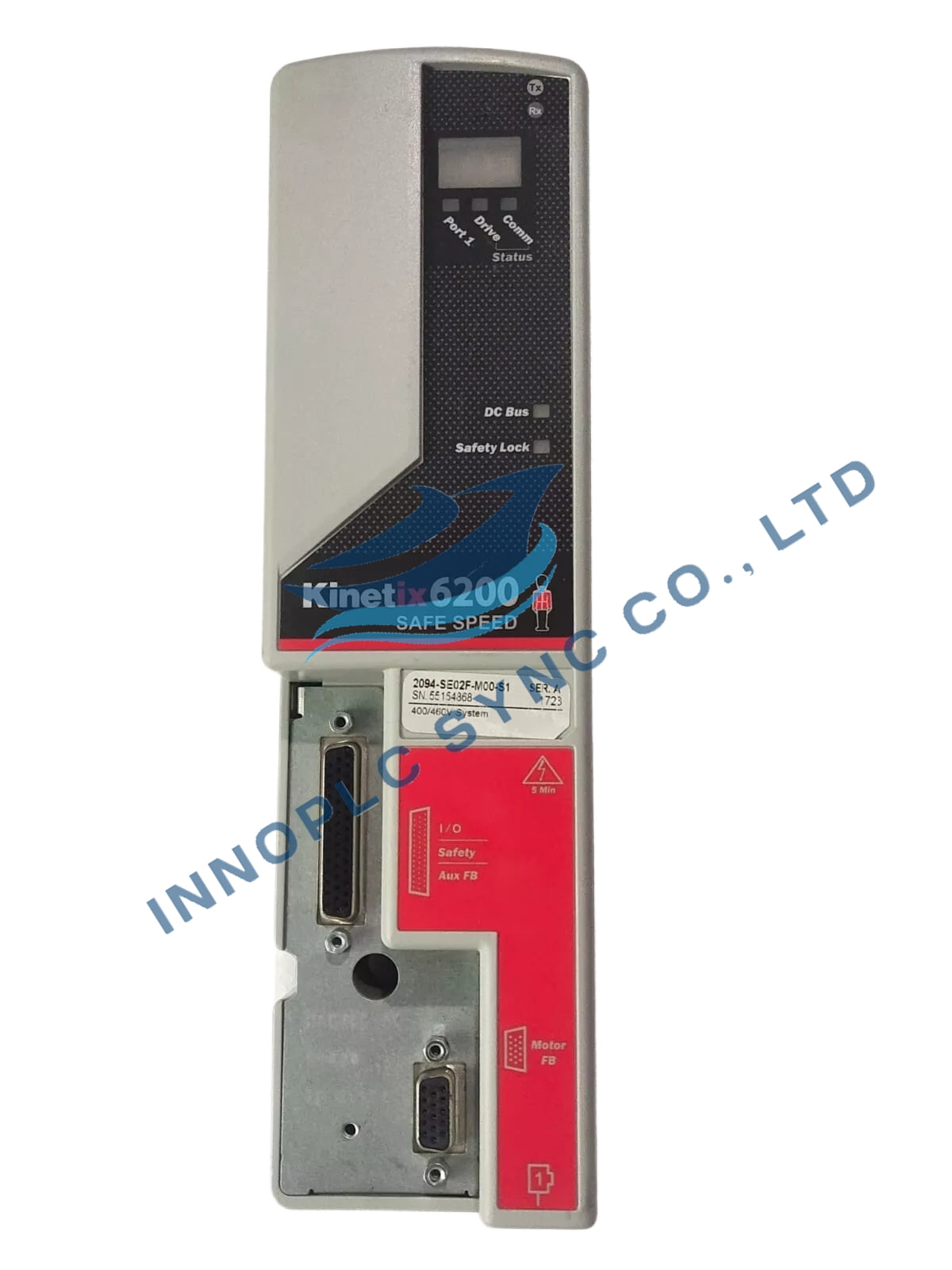

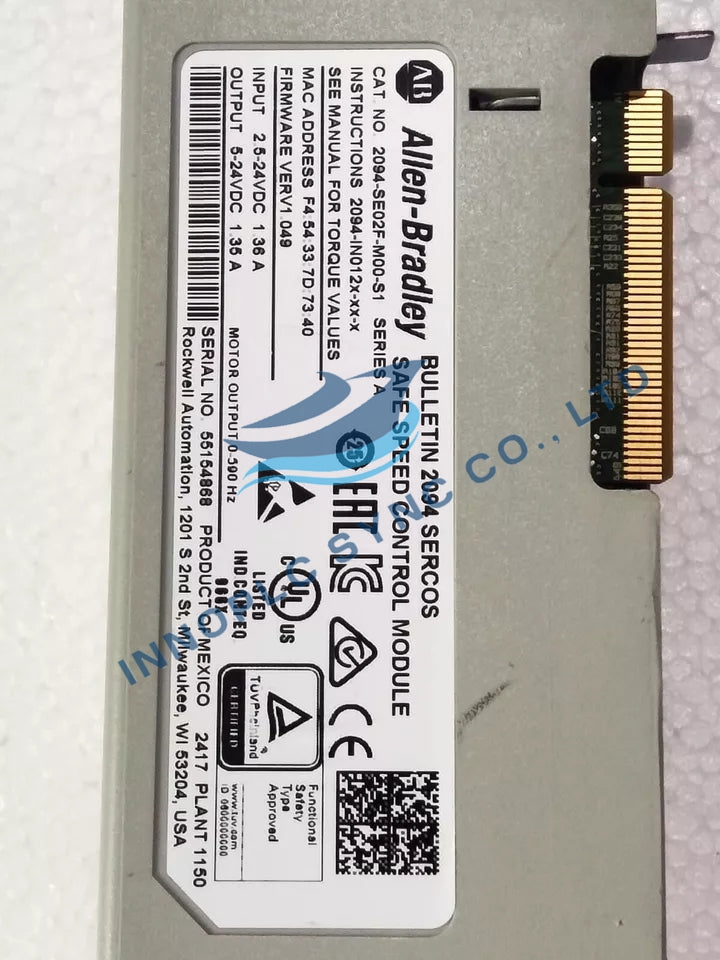

Allen-Bradley|2094-SE02F-M00-S1|Control Module

SKU: 2094-SE02F-M00-S1

Manufacturer: Allen-Bradley
Product No.: 2094-SE02F-M00-S1
Condition：In stock
Product Type: Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description

The 2094-SE02F-M00-S1 is a component of the Rockwell Automation Kinetix 6000 multi-axis servo drive system, designed for high-precision motion control applications. This module offers robust control capabilities and flexibility, making it ideal for industrial automation environments that require precise position, speed, and torque control.

Features

Integrated Control: Supports multi-axis synchronized control
High Performance: Features fast response times and high accuracy
Flexible Configuration: Communicates via EtherNet/IP and Sercos III interfaces
Built-in Diagnostics: Equipped with LED indicators for status monitoring and troubleshooting
Compact Design: Space-saving, easy to install and maintain

Technical Specifications

Power Requirements:
- Input Voltage: 200-240 VAC, 50/60 Hz
- Maximum Power Dissipation: See below when used with IAM or AM modules
Communication Interfaces:
- EtherNet/IP
- Sercos III
Physical Dimensions:
- Height: 1U (44.5 mm)
- Width: 178 mm
- Depth: 220 mm
Environmental Conditions:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
Performance Parameters:
- Maximum Number of Axes: Up to 8 axes
- Update Frequency: Typically 2 to 10 milliseconds
- Input Image Size: 250 words
- Output Image Size: 248 words
Power Consumption:
- IAM (Converter) Modules:
  - 2094-AC05-MP5-S: 8 W (20%), 11 W (40%), 15 W (60%), 19 W (80%), 24 W (100%)
  - 2094-AC05-M01-S: 9 W (20%), 12 W (40%), 16 W (60%), 20 W (80%), 25 W (100%)
Control System:
- Compatible with Logix 5000 controllers
- Supports precharge circuits for common-bus configurations
Safety Features:
- Complies with Class I, Division 2 wiring methods as per National Electrical Code NFPA 70
- Explosion-proof design for hazardous locations
Installation:
- Requires suitably trained personnel for installation, configuration, and maintenance
- Must be installed in accordance with applicable codes, laws, and standards
