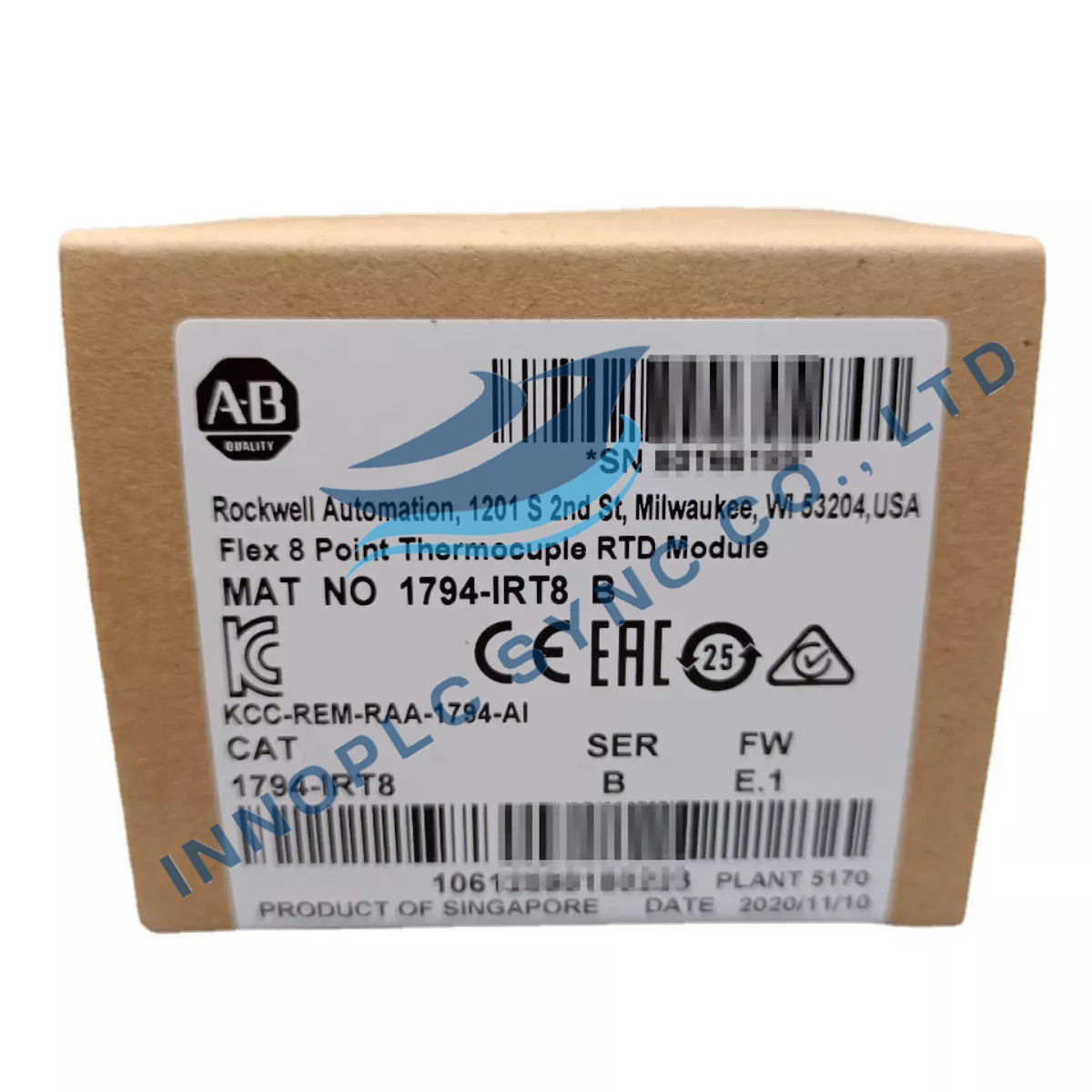

Allen-Bradley|1794-IRT8|Analog Input Module
SKU: 1794-IRT8

  • Manufacturer: Allen-Bradley

  • Product No.: 1794-IRT8

  • Condition：In stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description
The Allen-Bradley 1794-IRT8 is a FLEX I/O thermocouple/RTD input analog module for industrial temperature measurement, supporting up to 8 channels.

Features

  • Supports thermocouples and RTDs with high accuracy.
  • Configurable sensor modes (2-wire, 3-wire, 4-wire RTD).
  • Resolution: 14 bits.

Technical Specifications

  • Input Voltage Range: -40 to 100 mV (thermocouples), 0 to 325 mV (RTDs).
  • Thermocouple Types: B, E, J, K, TXK/XK(L), N, R, S, T.
  • RTD Types: 100 Ω Pt, 200 Ω Pt, 100 Ω Nickel, 200 Ω Nickel, 120 Ω Nickel, 10 Ω Copper.
  • Accuracy: ±0.05% of full range with filtering.
  • Common Mode Rejection: -80 dB @ 5V peak-to-peak, 50-60 Hz.
  • Isolation Voltage: 50V continuous, tested at 1365V AC for 60 seconds.
  • System Throughput: 7.4 ms (millivolt mode), 8.0-10.8 ms (RTD/thermocouple modes).
  • Operating Temperature: -20 to 55°C.
  • Power Supply: 24V DC nominal, 19.2-31.2V DC range.
  • Power Dissipation: 3.0W max @ 31.2V DC.
