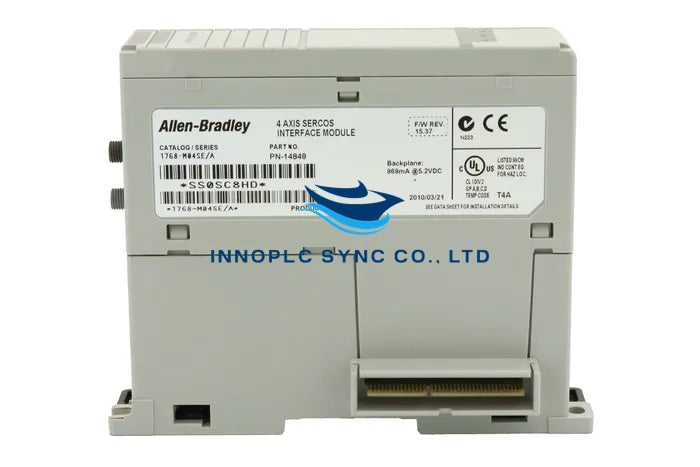

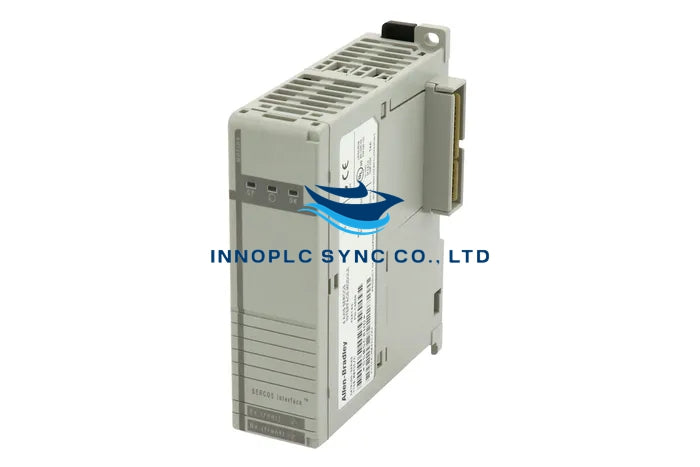

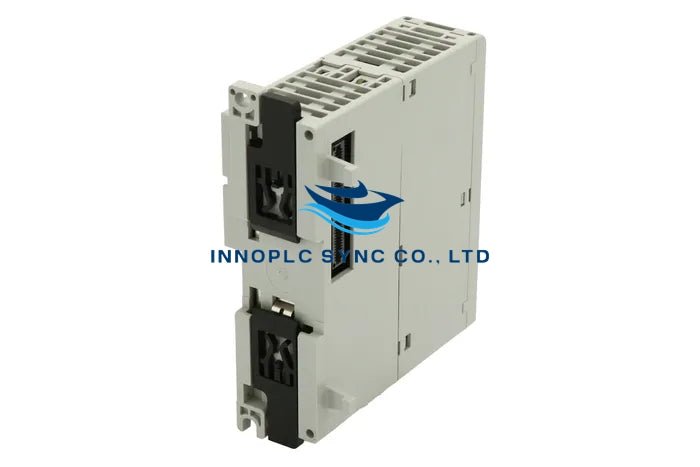

Allen-Bradley|1768-M04SE|CompactLogix SERCOS interface Module
SKU: 1768-M04SE

  • Manufacturer: Allen-Bradley

  • Product No.: 1768-M04SE

  • Condition：In stock

  • Product Type: CompactLogix SERCOS interface Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

The specifications for the CompactLogix SERCOS Interface Module (1768-M04SE):

  • Backplane Current: 969 mA @ 5.2V DC
  • Connections Consumed: 3
  • Dimensions (HxWxD):
    • Metric (Approx.):
      • Overall: 132.015 x 56.68 x 105.1 mm
      • Installed and including mounting tabs: 132.015 x 34.5 x 105.1 mm
      • Installed but not including mounting tabs: 118 x 34.5 x 105.1 mm
    • Imperial (Approx.):
      • Overall: 5.2 x 2.23 x 4.14 in.
      • Installed and including mounting tabs: 5.2 x 1.36 x 4.14 in.
      • Installed but not including mounting tabs: 4.65 x 1.36 x 4.14 in.
  • Fiber Optic Bend Radius:
    • Plastic cable without a jacket: 25 mm (0.98 in.)
    • Plastic cable with a standard jacket: 25 mm (0.98 in.)
    • Plastic cable with a nylon jacket: 40 mm (1.6 in.)
    • Glass cable: 30 mm (1.2 in.)
  • Fiber Optic Cable Attenuation:
    • Plastic cable: 140 dB/km @ 650 nm
    • Glass cable: 6.0 dB/km @ 820 nm
  • Fiber Optic Cladding Diameter:
    • Plastic cable: 1000 µm ± 60 µm
    • Glass cable: 230 µm +0/-10 µm
  • Fiber Optic Connector: F-SMA standard screw-type connector
  • Fiber Optic Core Diameter:
    • Plastic cable: 980 µm ± 60 µm
    • Glass cable: 200 µm ± 4 µm
  • Fiber Optic Operating Temperature:
    • Plastic cable: -55 to 85 °C
    • Glass cable: -20 to 85 °C
  • Fiber Optic Transmission Range:
    • Plastic cable: 1 to 32 m
    • Glass cable: 1 to 200 m
  • Mounting Screw Torque: 1.16 Nm (10 lb-in.), using M4 or #8 screws
  • Number of Axes per Module, Max: 4 drives and 2 auxiliary feedback axes
  • Power Dissipation: 5.04 W
  • Power Supply Distance Rating: 2 (Keep the module within 2 slots from the power supply)
  • SERCOS Class: Class B (Position or Velocity)
  • SERCOS Data Rate: 4 M or 8 M
  • SERCOS Operating Cycle:
    • Only Kinetix 6000 drives let you use a 0.5 ms Cycle Time
    • 4 M Data Rate and up to 2 drives: 0.5 ms Cycle Time
    • 4 M Data Rate and up to 4 drives: 1 ms Cycle Time
    • 8 M Data Rate and up to 4 drives: 0.5 ms Cycle Time
  • Weight:
    • Imperial: 7.11 oz
    • Metric: 0.20 kg
