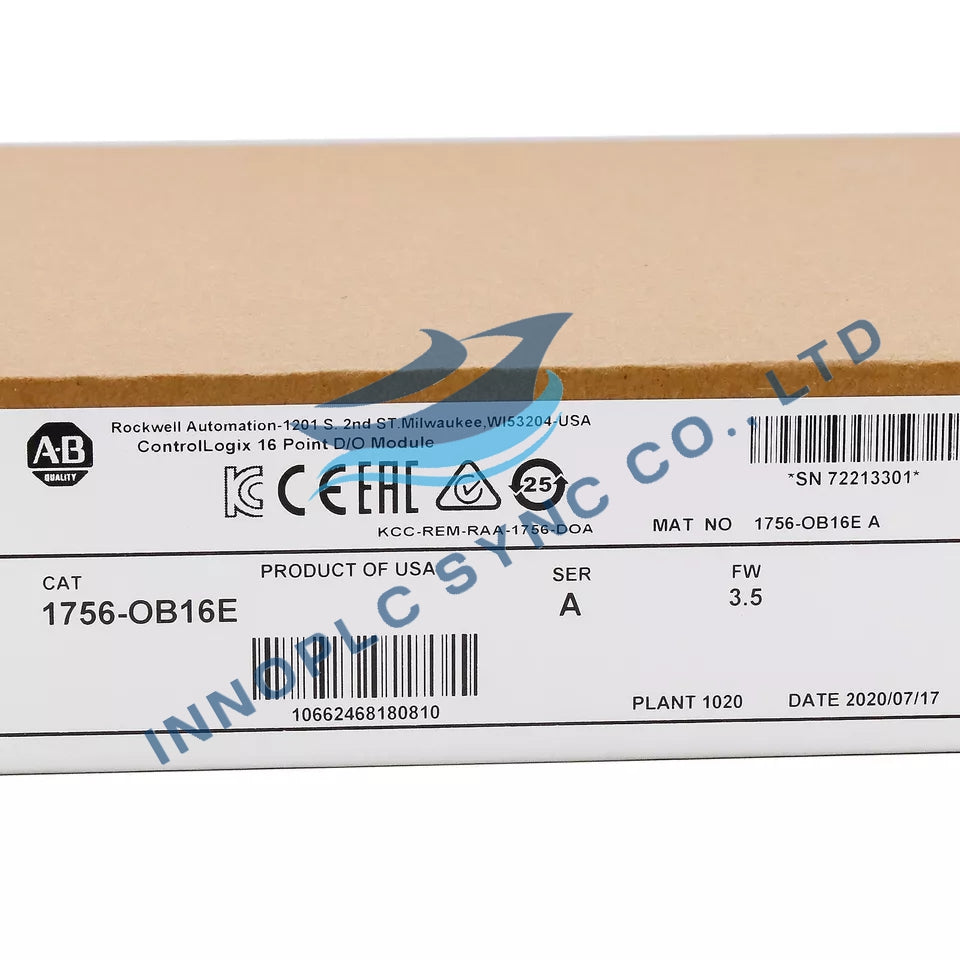

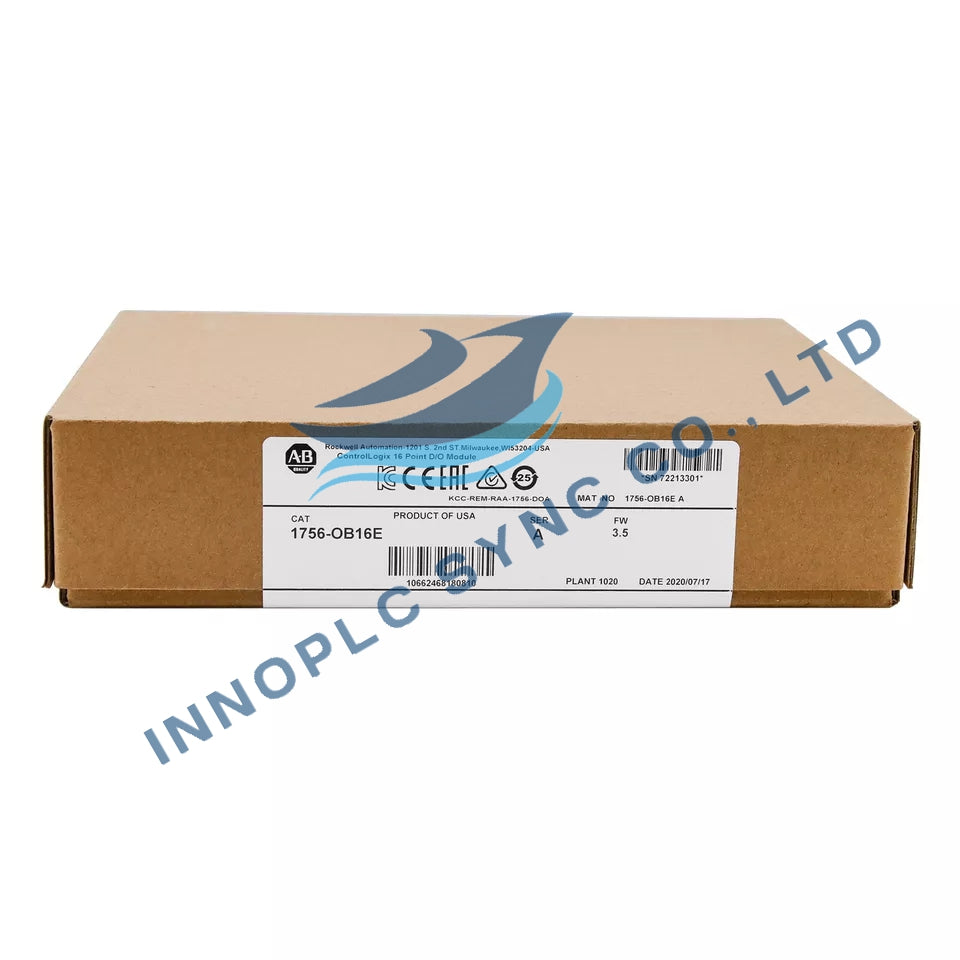

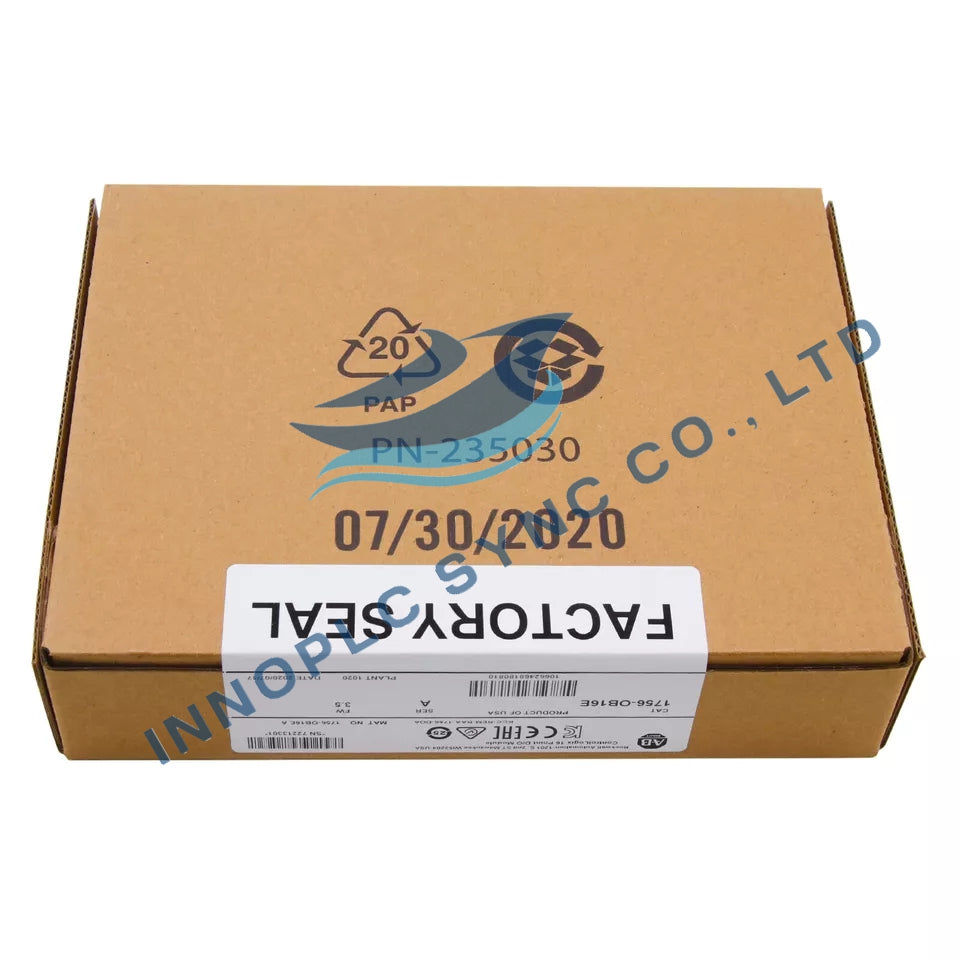

Allen-Bradley|1756-OB16E| ControlLogix DC Output Module

SKU: 1756-OB16E

Manufacturer: Allen-Bradley
Product No.: 1756-OB16E
Condition：In stock
Product Type: ControlLogix DC Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Module Overview:
The 1756-OB16E is a ControlLogix DC output module with 16 electronically fused outputs, grouped into two sets of 8 points each.

Key Features:

Operates on 12/24V DC sources.
Supports an operating voltage range of 10–31.2V DC.

Technical Specifications:

Current draw: 250 mA at 5.1V, 2 mA at 24V.
Max power dissipation: 4.1W at 60°C.
Output current: Up to 1A per point, 8A total per module.
Off-state leakage: ≤1 mA per point.
On-state voltage drop: ≤400 mV DC at 1A.
Surge current: 2A for 10ms per point, repeatable every 2s at 0°C.

Environmental Conditions:

Operating temperature: 0–60°C.
Humidity: 5–95% noncondensing.

Compliance & Certifications:

Standards: ESD (6kV contact, 8kV air), RF immunity, surge transient.
Certifications: UL, CSA, CE, C-Tick, Ex, FM, KC.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
