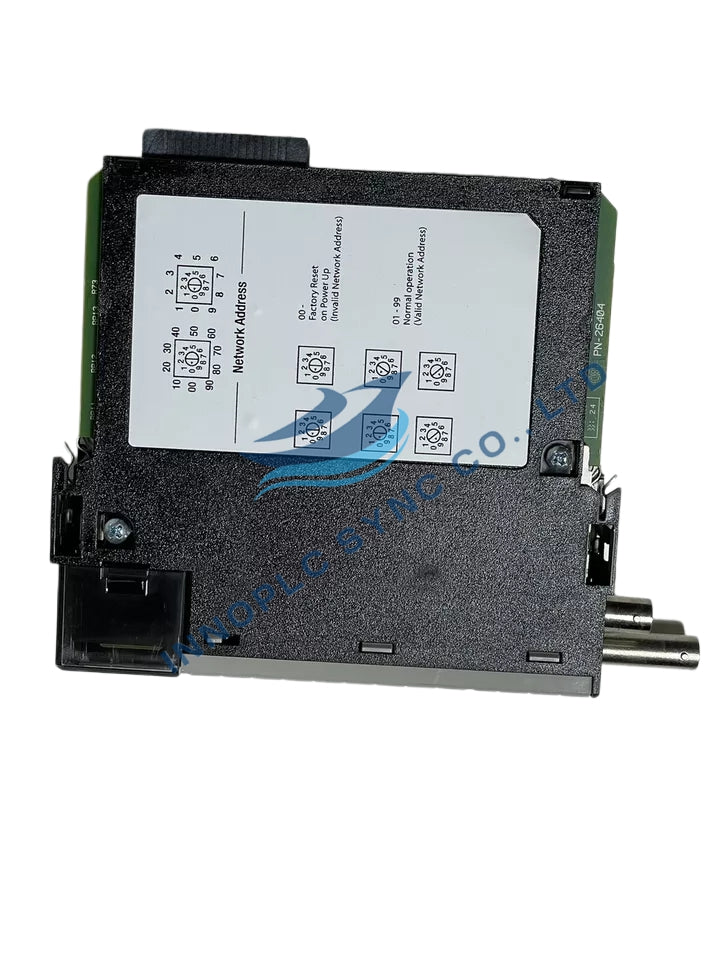

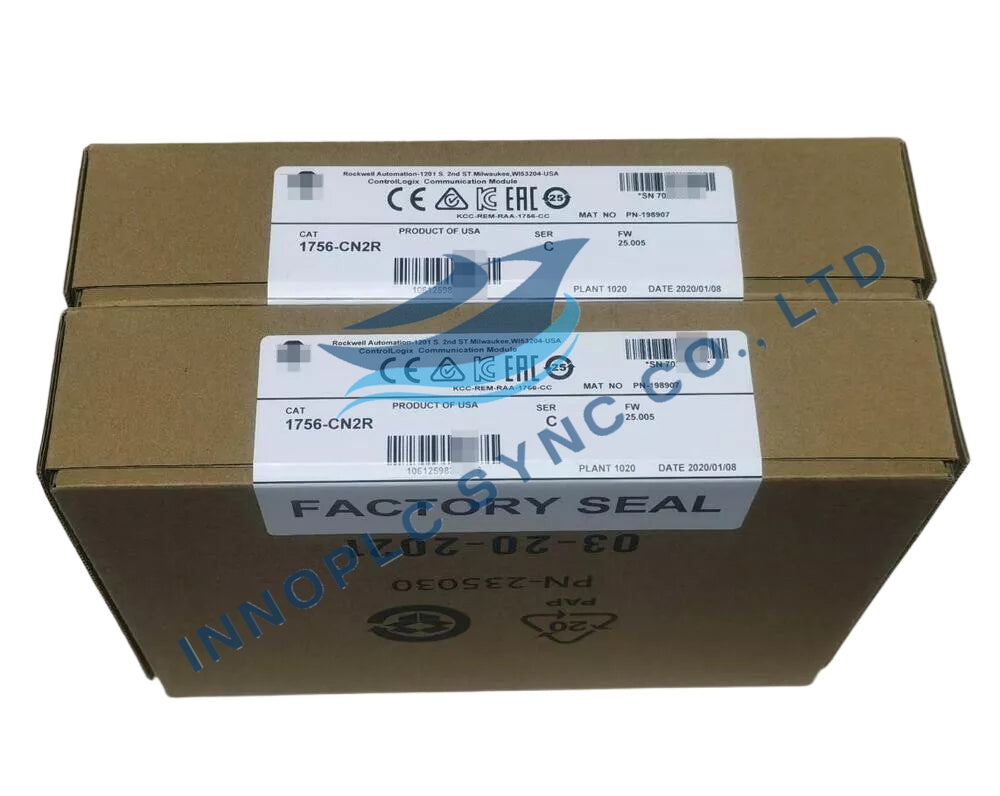

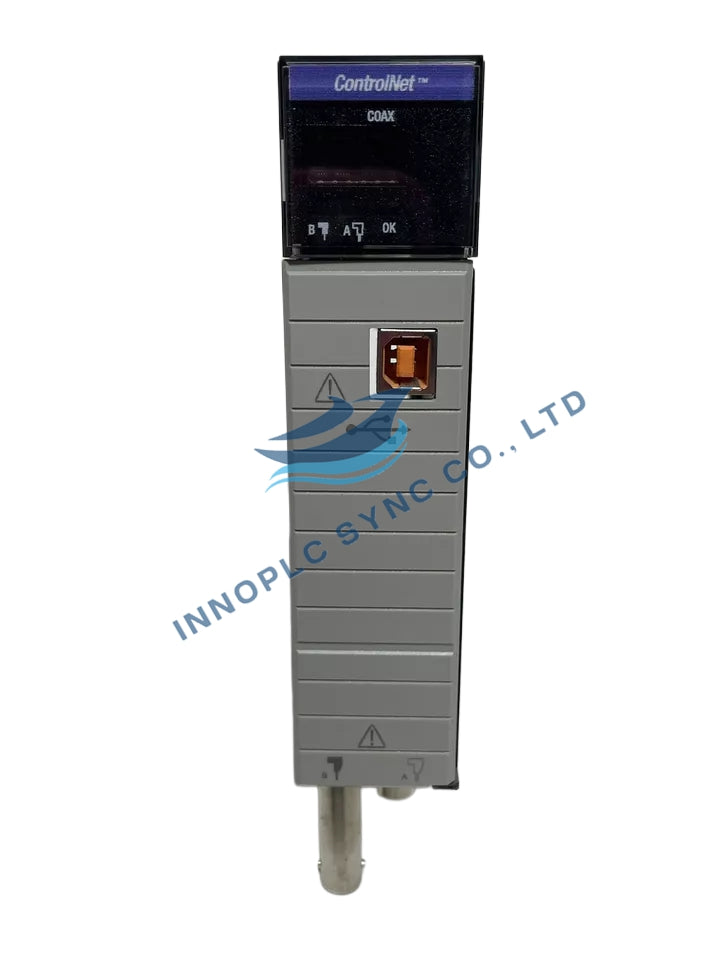

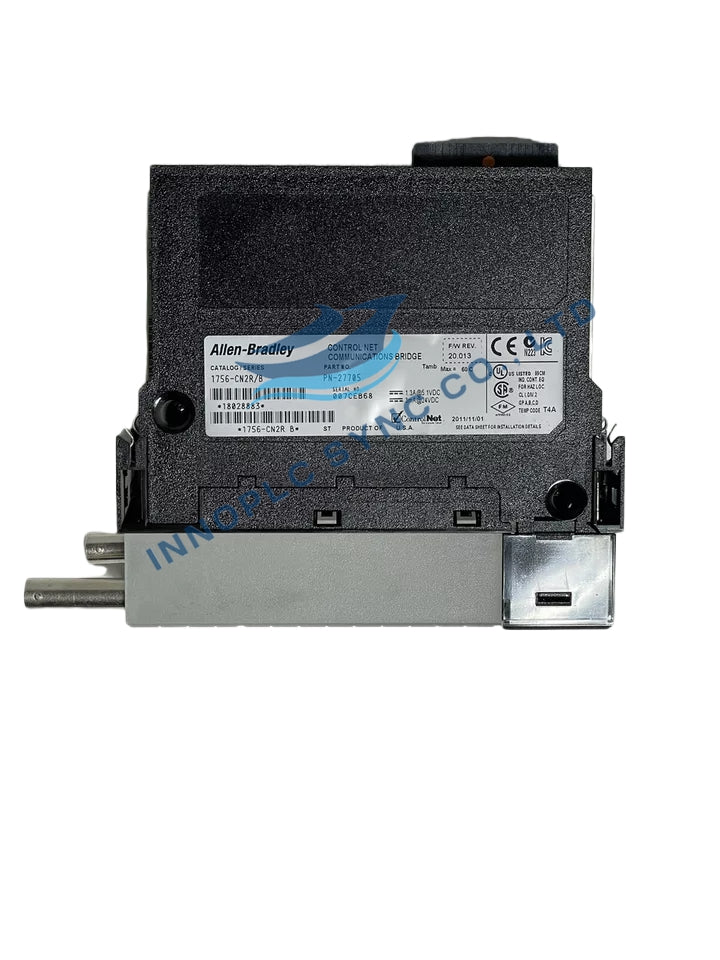

Allen-Bradley|1756-CN2R|ControlLogix Communication Module

SKU: 1756-CN2R

Manufacturer: Allen-Bradley
Product No.: 1756-CN2R
Condition：In stock
Product Type: ControlLogix Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description

The 1756-CN2R is a ControlLogix communication module designed to provide robust and reliable network connectivity for industrial automation systems. It supports EtherNet/IP, allowing seamless integration with ControlLogix controllers and other devices on the network. The module is suitable for applications requiring high-speed data exchange and real-time communication in harsh industrial environments.

Features

EtherNet/IP Protocol: Supports both Explicit and Implicit messaging.
Redundant Power Input: Dual power inputs for increased reliability.
LED Indicators: Provides visual status for network and module health.
Hot-Swap Capability: Can be inserted or removed without powering down the system.
Modular Design: Easily integrates into existing ControlLogix systems.
Environmental Durability: Designed to withstand industrial conditions.

Technical Specifications

Network Protocol:

EtherNet/IP (IEEE 802.3)

Data Rate:

10/100 Mbps (auto-sensing)

Power Supply:

24 VDC (dual power inputs)
Current draw: 350 mA max per input

Operating Temperature:

-20°C to 60°C (-4°F to 140°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% noncondensing

Vibration Resistance:

2 g at 10 to 500 Hz (IEC 60068-2-6)

Shock Resistance (Operating):

30 g (IEC 60068-2-27)

Shock Resistance (Nonoperating):

50 g (IEC 60068-2-27)

Dimensions (W x H x D):

101.6 mm x 127 mm x 101.6 mm (4 in. x 5 in. x 4 in.)

Weight:

0.45 kg (1 lb)

Mounting Method:

Horizontal or vertical mounting in a standard 1756 chassis

Communication Ports:

2 RJ45 ports for EtherNet/IP
Supports media redundancy protocol (MRP) for network fault tolerance

LED Indicators:

LINK/ACT: Link and activity status
TX/RX: Data transmission/reception status
POWER: Power status
ERR: Error status

Certifications:

c-UL-us UL Listed Industrial Control Equipment (US and Canada)
CE European Union 2004/108/EC EMC Directive
ATEX European Union 94/9/EC Directive
C-Tick Australian Radiocommunications Act
