Allen-Bradley|1756-A4|ControlLogix Chassis

SKU: 1756-A4

Manufacturer: Allen-Bradley
Product No.: 1756-A4
Condition：In stock
Product Type: ControlLogix Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description

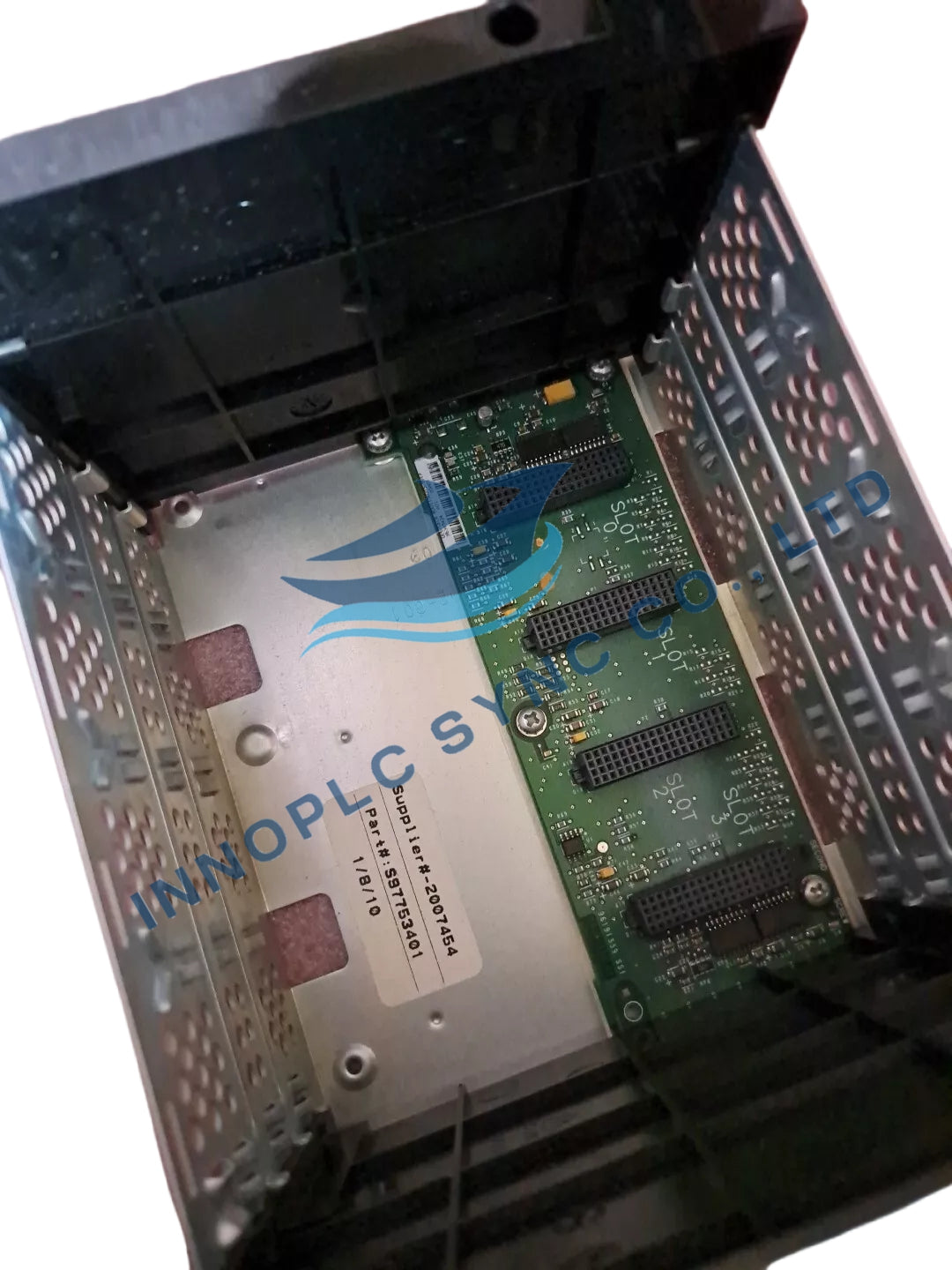

The 1756-A4 is a standard ControlLogix chassis designed for horizontal back-panel mounting. It provides a high-speed communication path between modules and distributes power to each module within the chassis. The chassis supports up to 4 slots, making it suitable for small-scale applications. It is part of the modular ControlLogix system, which requires a chassis to house various control and communication modules.

Features

Horizontal Mounting: Designed for horizontal back-panel mounting only.
High-Speed Communication: Backplane provides a high-speed communication path between modules.
Power Distribution: Distributes power to each module within the chassis.
Compact Size: Suitable for applications with limited space.
Compatibility: Supports a wide range of ControlLogix modules.
Environmental Protection: Conformal coating available for enhanced survivability in harsh environments (XT versions).

Technical Specifications

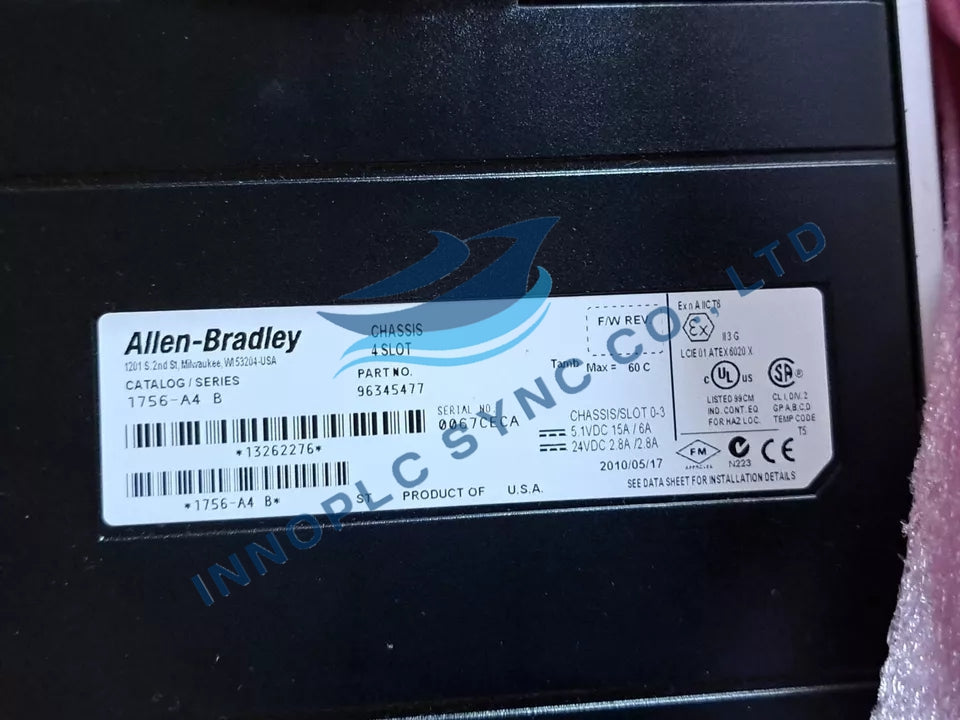

Backplane Current:

1.2V DC: 1.5A per slot
3.3V DC: 4A per slot
5.1V DC: 15A per slot (chassis max), 6A per slot
24V DC: 2.8A per slot

Power Dissipation:

Maximum: 4W

Isolation Voltage:

Determined by installed power supply and modules

Slots:

4 slots

Mounting Method:

Horizontal only

Cabinet Size:

Minimum: 50.8 x 50.8 x 20.3 cm (20 x 20 x 8 in.)

Weight:

Approximate: 0.75 kg (1.7 lb)

Location:

Panel mount

Wire Size:

Functional Earth Ground: 8.3 mm² (8 AWG) solid or stranded copper wire rated at 90°C (194°F) or greater
Protective Earth Ground: 2.1 mm² (14 AWG) solid or stranded copper wire rated at 90°C (194°F) or greater

Operating Temperature:

Standard: 0°C to +60°C (32°F to 140°F)
XT Versions: -25°C to +70°C (-13°F to 158°F)

Nonoperating Temperature:

-40°C to +85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% noncondensing

Vibration:

2 g @ 10 to 500 Hz

Shock:

Operating: 30 g
Nonoperating: 50 g

Emissions:

IEC 61000-6-4

ESD Immunity:

6 kV contact discharges, 8 kV air discharges

Radiated RF Immunity:

10V/m with 1 kHz sine-wave 80% AM from 80 to 2000 MHz
10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz
10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz
3V/m with 1 kHz sine-wave 80% AM from 2000 to 2700 MHz
