Allen-Bradley|1756-A13|ControlLogix Chassis

SKU: 1756-A13

Manufacturer: Allen-Bradley
Product No.: 1756-A13
Condition：In stock
Product Type: ControlLogix Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description

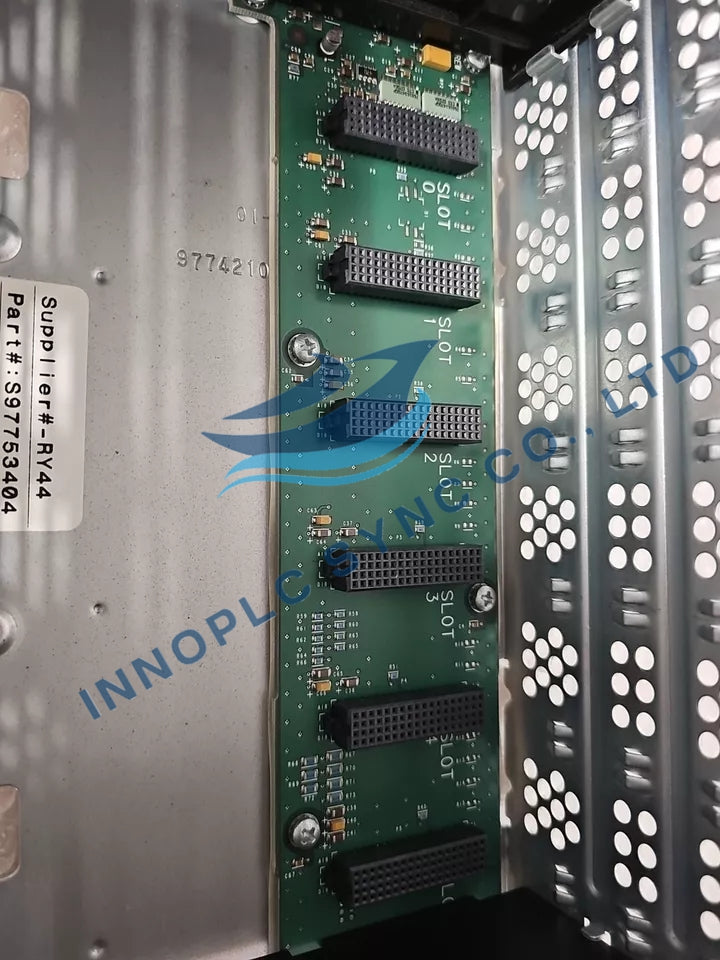

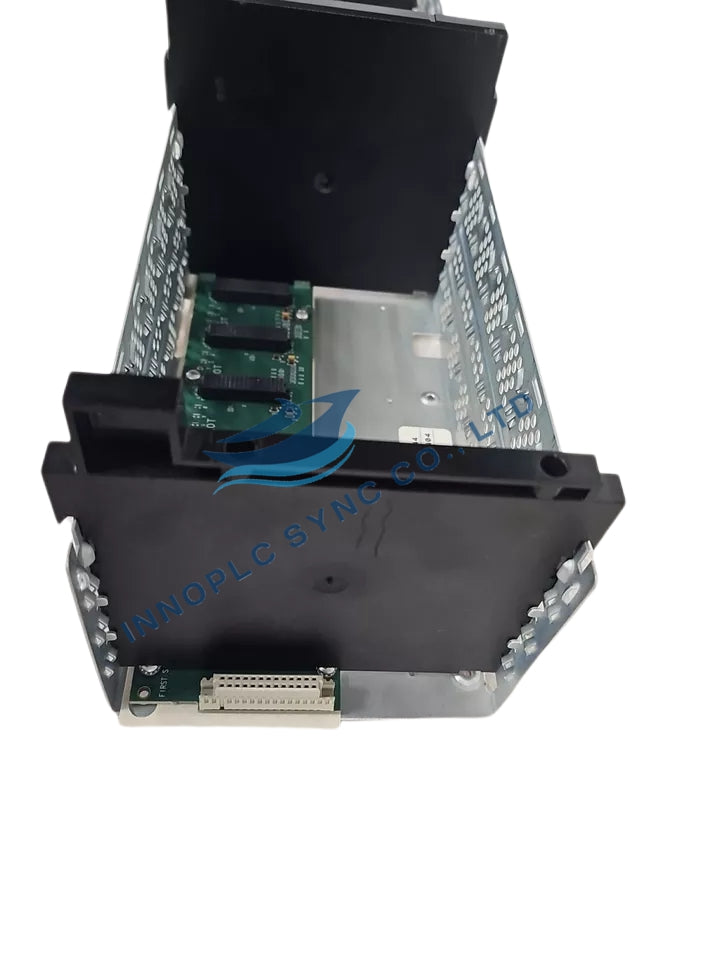

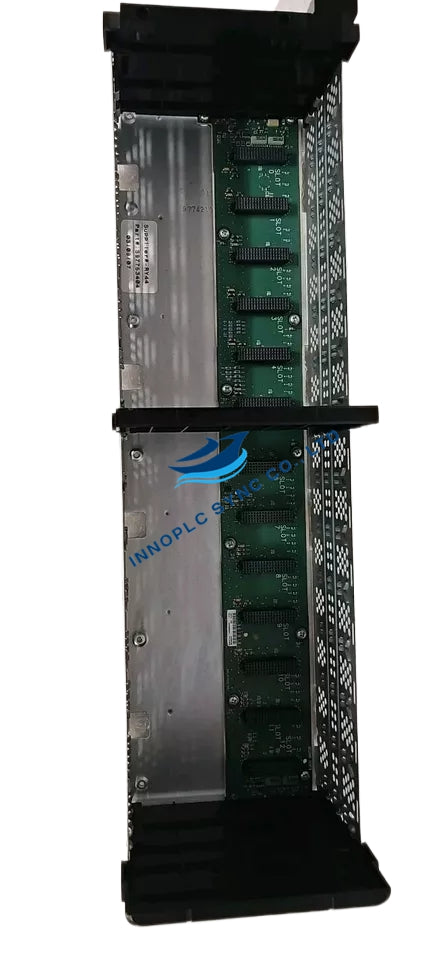

The 1756-A13 ControlLogix chassis is a component of the modular ControlLogix system by Rockwell Automation. It is designed for horizontal back-panel mounting and supports various modules that can be placed in any slot. The chassis provides a high-speed communication path between modules and distributes power to each module.

Features

High-speed backplane communication.
Flexible module placement.
Horizontal mounting orientation.

Technical Specifications

Backplane Current:
- 1.2V DC: 1.5 A (chassis/slot max)
- 3.3V DC: 4 A (chassis/slot max)
- 5.1V DC: 15 A (chassis max), 6 A (slot max)
- 24V DC: 2.8 A (chassis/slot max)
Power Dissipation: 5.4 W (max)
Isolation Voltage: Determined by installed power supply and modules
Dimensions:
- Width: 16.9 inches (6.65 inches)
- Height: 14.5 inches (5.71 inches)
- Depth: 0.78 inches (0.31 inches)
- Backplane Depth: 0.55 inches (0.217 inches)
Mounting:
- Designed for horizontal back-panel mounting only.
Slot Filler Modules:
- Use 1756-N2 for empty slots in standard ControlLogix chassis.
- Use 1756-N2XT for empty slots in ControlLogix-XT chassis.
