Allen-Bradley|1756-A10K|ControlLogix Chassis

SKU: 1756-A10K

Manufacturer: Allen-Bradley
Product No.: 1756-A10K
Condition：In stock
Product Type: ControlLogix Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description

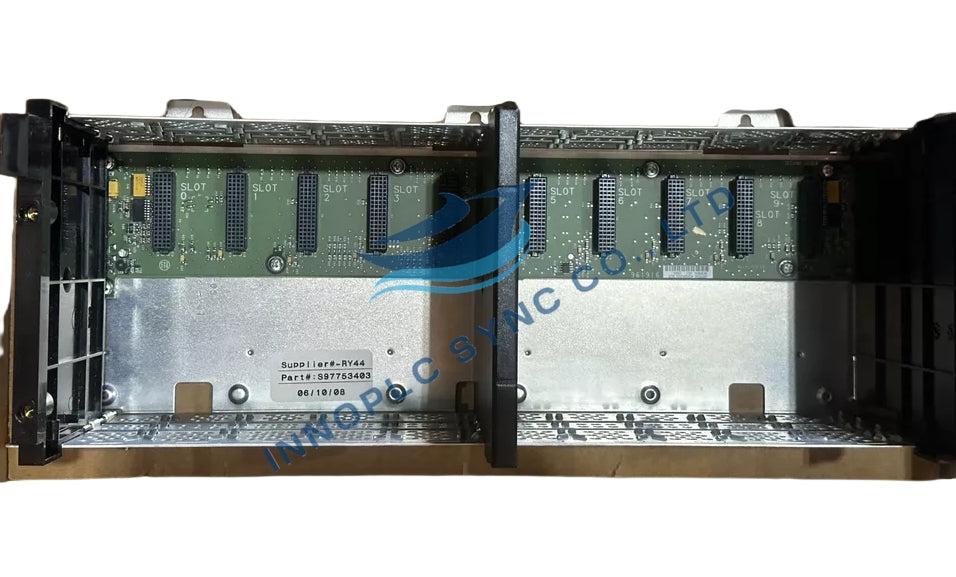

The 1756-A10K is a modular chassis designed for the ControlLogix system by Rockwell Automation. It supports up to 10 slots for various modules, offering a balance between compactness and expandability. This chassis is ideal for applications that require more module support than smaller chassis but still need to conserve space. The chassis provides a high-speed communication path between modules and distributes power to each module.

Features

Supports up to 10 slots for flexible module configuration.
High-speed backplane communication.
Horizontal mounting orientation.
Suitable for applications requiring moderate expandability in a compact form factor.

Technical Specifications

Backplane Current:
- 1.2V DC: 1.5 A (chassis/slot max)
- 3.3V DC: 4 A (chassis/slot max)
- 5.1V DC: 15 A (chassis max), 6 A (slot max)
- 24V DC: 2.8 A (chassis/slot max)
Power Dissipation: 5.4 W (max)
Isolation Voltage: Determined by installed power supply and modules
Dimensions:
- Width: 16.9 inches (429.3 mm)
- Height: 5.7 inches (144.8 mm)
- Depth: 7.09 inches (180 mm)
Mounting:
- Designed for horizontal back-panel mounting only.
Slot Filler Modules:
- Use 1756-N2 for empty slots in standard ControlLogix chassis.
- Use 1756-N2XT for empty slots in ControlLogix-XT chassis.
Environmental Specifications:
- Operating Temperature: 0°C to 60°C (32°F to 140°F) for B series, -25°C to 60°C (-13°F to 140°F) for C series
- Nonoperating Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 5% to 95% noncondensing
- Vibration: 2 g @ 10 to 500 Hz
- Shock (Operating): 30 g
- Shock (Nonoperating): 50 g
Electromagnetic Compatibility:
- Emissions: IEC 61000-6-4
- ESD Immunity: 6 kV contact discharges, 8 kV air discharges
- Radiated RF Immunity: 10V/m with 1 kHz sine-wave 80% AM from 80 to 2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz and 1890 MHz, 3V/m with 1 kHz sine-wave 80% AM from 2000 to 2700 MHz
Certifications:
- UL Listed Industrial Control Equipment (US and Canada)
- UL Listed for Class I, Division 2 Group A, B, C, D Hazardous Locations (US and Canada)
- CSA Certified Process Control Equipment (US and Canada)
- FM Approved Equipment for use in Class I Division 2 Group A, B, C, D Hazardous Locations
