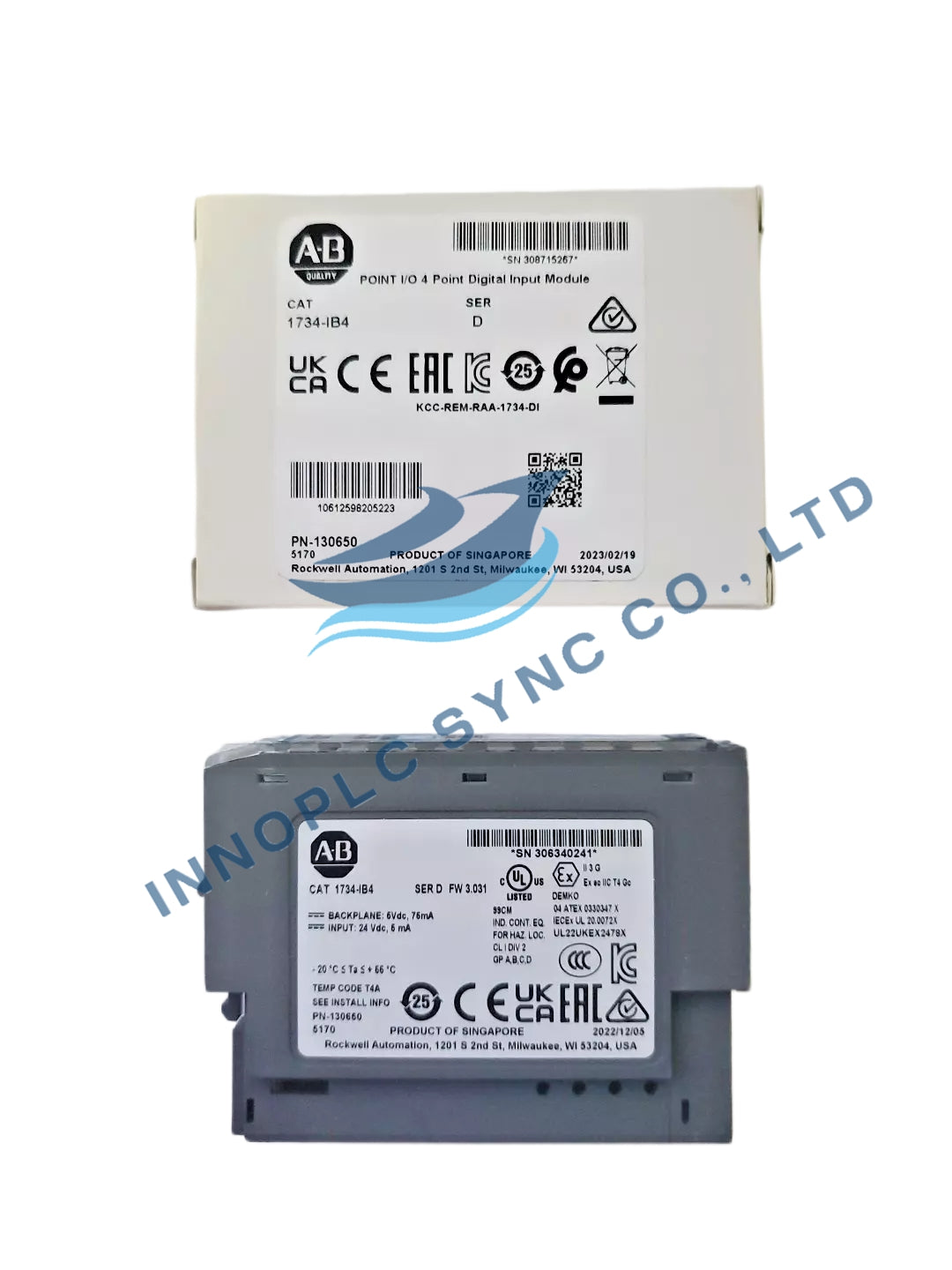

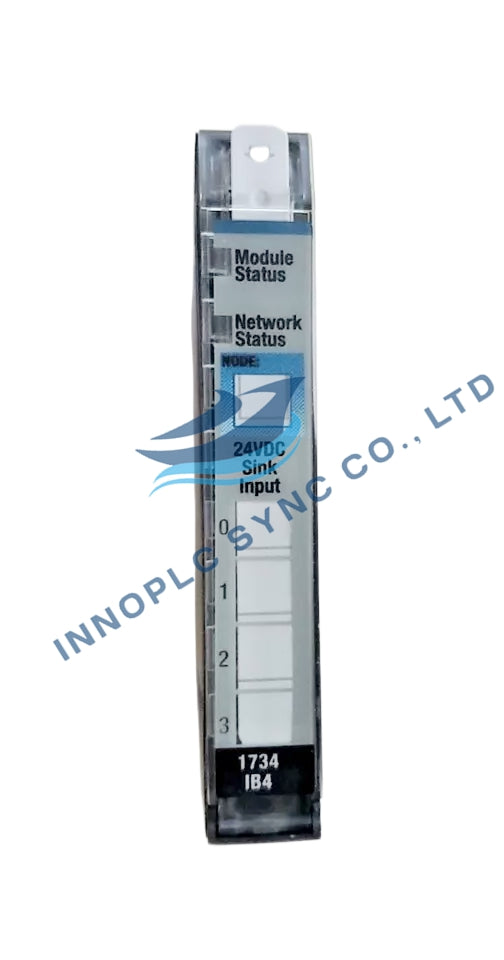

Allen-Bradley|1734-IB4|POINT I/O Digital Input Module

SKU: 1734-IB4

Manufacturer: Allen-Bradley
Product No.: 1734-IB4
Condition：In stock
Product Type: POINT I/O Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 432g
Shipping port: Xiamen
Warranty: 12 months

Description

The Allen-Bradley 1734-IB4 is a POINT I/O digital input module designed for reliable 24V DC sinking input detection in industrial automation systems

Features

Provides four sinking digital inputs
Compatible with POINT I/O systems for easy integration
Supports high-density input configurations

Technical Specifications

Input Type

4 sinking inputs 24V DC

Voltage Range

10 to 28.8V DC 24V DC nominal

On-State Voltage

10V DC minimum 24V DC nominal 28.8V DC maximum

On-State Current

2 mA minimum 4 mA nominal at 24V DC 5 mA maximum

Off-State Voltage

5V DC maximum

Off-State Current

1.5 mA maximum

Input Impedance

4.7 kΩ nominal

Input Delay Time

0.5 ms off to on 0.5 ms on to off ±0.1 ms filter time

Power Dissipation

1.0 W maximum at 28.8V DC

Thermal Dissipation

3.4 BTU/hr maximum at 28.8V DC

Field Power Supply

24V DC at 25 mA total (4 mA per channel + 9 mA module)

Isolation Voltage

50V continuous tested at 1250V AC for 60 s

Weight

32.3 g (1.14 oz)

Dimensions

56.0 x 12.0 x 75.5 mm (2.2 x 0.47 x 2.97 in)

Temperature Range

-20 to 55°C (-4 to 131°F) operating -40 to 85°C (-40 to 185°F) storage

Humidity

5 to 95% non-condensing

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
