Allen-Bradley |1734-AENT|POINT I/O Ethernet/IP Adapter Module

SKU: 1734-AENT

Manufacturer: Allen-Bradley
Product No.: 1734-AENT
Condition：In stock
Product Type: POINT I/O Ethernet/IP Adapter Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 432g
Shipping port: Xiamen
Warranty: 12 months

Description

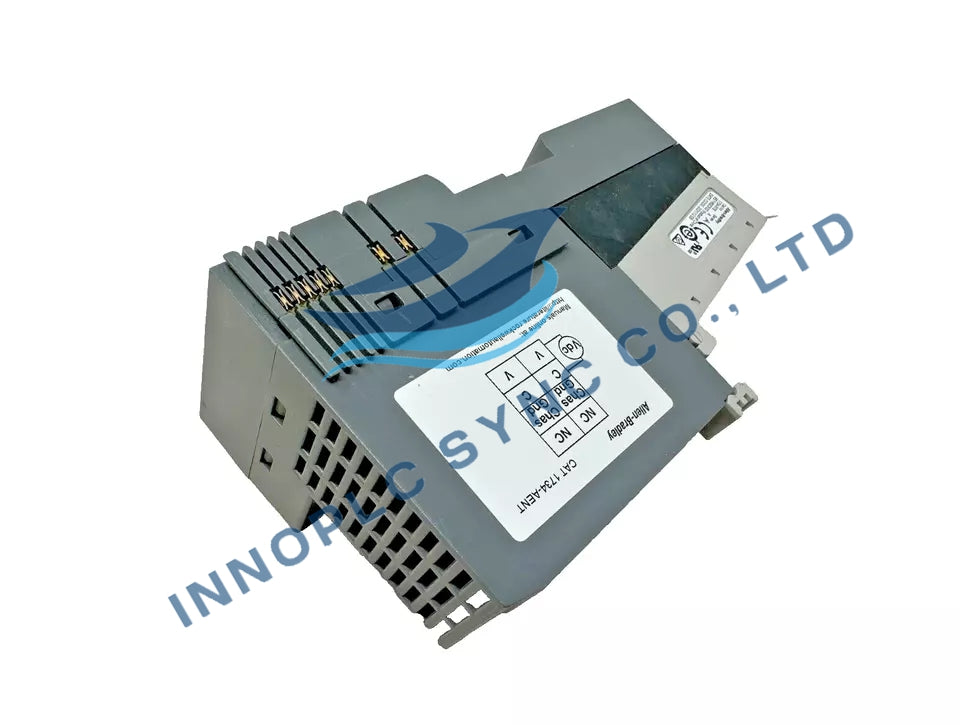

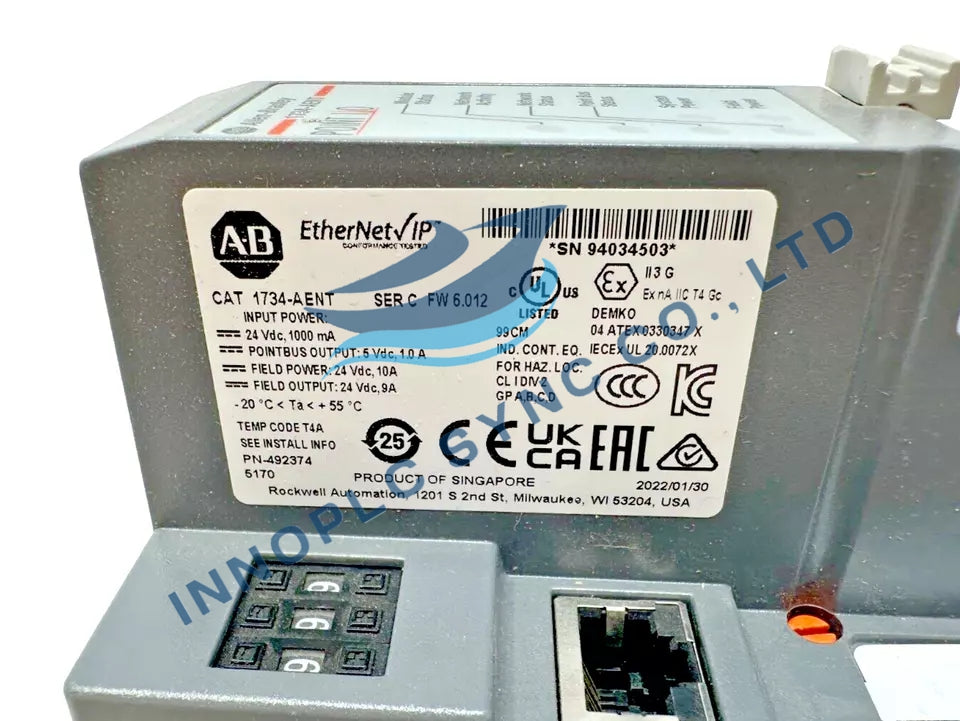

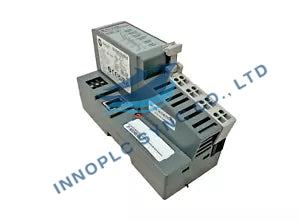

The Allen-Bradley 1734-AENT is a POINT I/O Ethernet/IP adapter module designed for connecting POINT I/O modules to an Ethernet network in industrial automation systems.

Features

Supports Ethernet/IP communication. Compact design for DIN rail mounting. Enables network connectivity for POINT I/O systems.

Technical Specifications

Ethernet Communication Rate: 10/100 Mbits/s, half or full-duplex
Input Voltage: 24V DC nominal
Voltage Range: 10-28.8V DC
Field Power Supply: 24V DC at 400 mA max
POINT Bus Current: 1000 mA max at 5V DC
Power Consumption: 4.5 W max at 28.8V DC
Power Dissipation: 15.5 BTU/hr max at 28.8V DC
Isolation Voltage: 50V continuous (network to system)
Network Connections: RJ45, Category 5
Supported Topologies: Star, tree
Operating Temperature: -20°C to 55°C
Storage Temperature: -40°C to 85°C
Dimensions: 76.2 x 25.4 x 133.4 mm
Weight: 255 g

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
