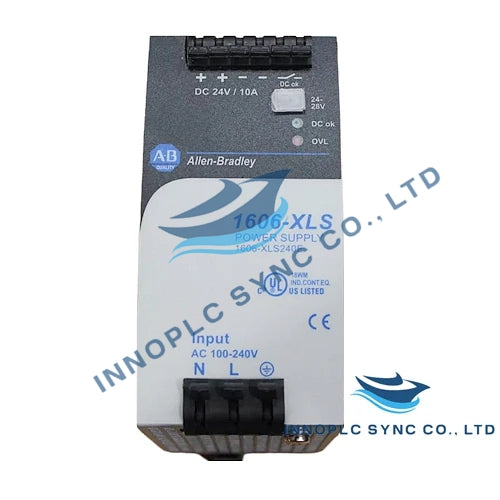

Allen-Bradley | 1606-XLS240E | Power Supply 24V 10A

SKU: 1606-XLS240E

Manufacturer: Allen-Bradley
Product No.: 1606-XLS240E
Condition：In stock
Product Type: Power Supply
Product Origin: USA
Payment:T/T, Western Union
Weight: 460g
Shipping port: Xiamen
Warranty: 12 months

Description

Model: 1606-XLS240E
Brand: Allen-Bradley
Type: Power Supply 24V 10A

General Information

Output Voltage: 24V DC (adjustable 24-28V)
Output Current: 10A continuous, 15A for 4s
Output Power: 240W continuous, 360W for 4s
Output Ripple: < 50 mVpp (20Hz to 20MHz)
Input Voltage: AC 100-240V ±15%, DC 110-300V
AC Input Current: 2.22A at 120V, 1.22A at 230V
Power Factor: 0.98 at 120V, 0.92 at 230V
Efficiency: 92.3% at 120V, 93.0% at 230V
AC Inrush Current: 4A at 120V, 7A at 230V
Losses: 20W at 120V, 18.1W at 230V

Features

Ultra-Small Size
Low Inrush Current: Extra-low inrush current
Active Power Factor Correction
Wide Input Range: Auto selects between AC/DC input
Reserve Power: Supports 150% rated power for 5s
Temperature Rating: -25°C to +70°C operational, with derating above +60°C
DC-OK and Overload LED Indicators

Environmental Conditions

Operational Temperature: -25°C to +70°C (derating above +60°C)
Storage Temperature: -40°C to +85°C
Humidity: 5 to 95% RH, IEC 60068-2-30
Vibration:
- Sinusoidal: 2-17.8Hz ±1.6mm; 17.8-500Hz 2g (2 hrs/axis)
- Random: 0.5 m² (2 hrs/axis)
- Shock: 30g 6ms, 20g 11ms (3 bumps per direction)
Altitude: 0 to 6000m (reduce power above 2000m)
Over-voltage Category: III up to 2000m, II from 2000m to 6000m
Degree of Pollution: 2, EN 50178

Mechanical Information

Dimensions (W x H x D): 60 x 124 x 117 mm
Weight: Approx. 460 g

Additional Information

Hold-Up Time: 27ms at 120V, 28ms at 230V
Output De-Rating: 6W/°C at +60 to +70°C, altitude-based de-rating above 2000m
