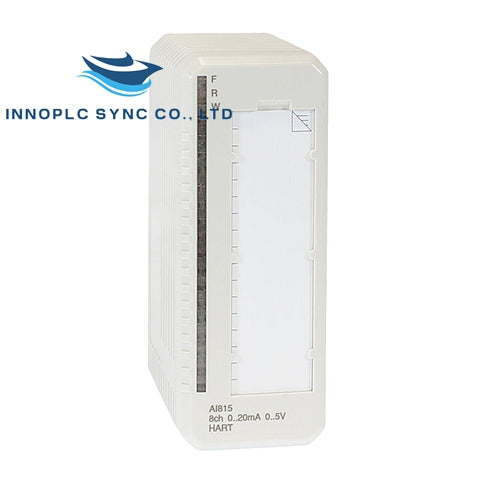

AI815 | ABB Analog Input S800 I/O

SKU: AI815

Manufacturer: ABB
Product No.: AI815
Condition：In stock
Product Type: Analog Input
Product Origin: USA
Payment:T/T, Western Union
Weight: 230g
Shipping port: Xiamen
Warranty: 12 months

Overview

The AI815 is an ABB Analog Input module designed for the S800 I/O system. It provides accurate analog signal processing with a variety of input options, including 0-20 mA, 4-20 mA, and 0-5 V. The module is ideal for applications requiring precise monitoring of analog signals and offers high integration and ease of use within ABB’s automation systems.

General Information

Article Number: 3BSE052604R1
Type: Analog Input
Signal Specification: 0..20 mA, 4..20 mA, 0..5 V, 1..5 V
Number of Channels: 8
Signal Type: Unipolar single-ended
HART: Yes
SOE (Sequence of Events): No
Redundancy: No
High Integrity: No
Intrinsic Safety: No
Mechanics: S800

Detailed Data

Resolution: 12 bit
Input Impedance:
- 10 MΩ (voltage input)
- 250 Ω (current input)
Isolation: Groupwise isolated from ground
Under/Over Range:
- 0 / +15% (0..20 mA, 0..5 V)
- -12.5% / +15% (4..20 mA, 1..5 V)
Error: Max. 0.1%
Temperature Drift: Max. 50 ppm/°C
Input Filter (Rise Time 0-90%): 290 ms
Update Cycle Time: 10 ms
Current Limiting: Built-in current limited transmitter power
Maximum Field Cable Length: 600 meters (656 yards)
NMRR, 50Hz, 60Hz: > 40 dB
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 3.5 W
Current Consumption +5 V Modulebus: 100 mA
Current Consumption +24 V Modulebus: 50 mA
Current Consumption +24 V External: Max. 265 mA (22 mA + 1.32 * transmitter current)

Compatibility

Use with MTU: TU810, TU812, TU814, TU830, TU833, TU835, TU838
Keying Code: CC

Dimensions and Weight

Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)
Weight: 0.23 kg (0.51 lbs.)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
