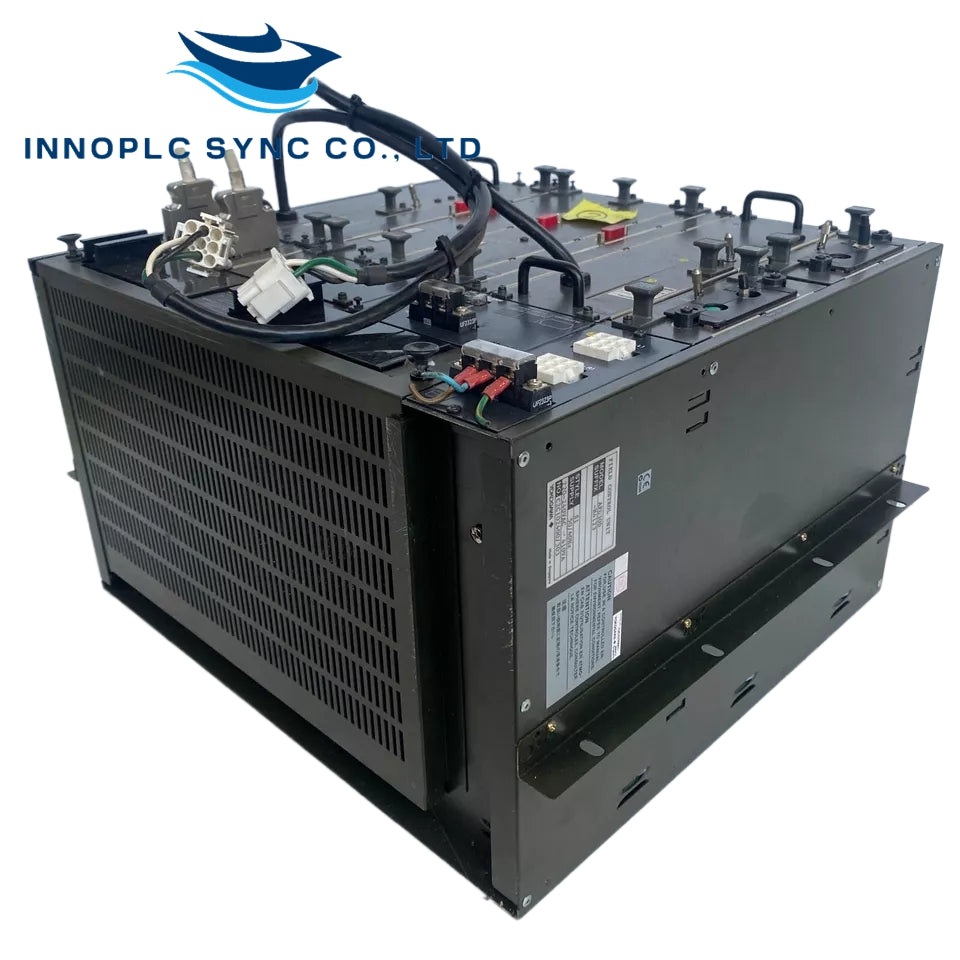

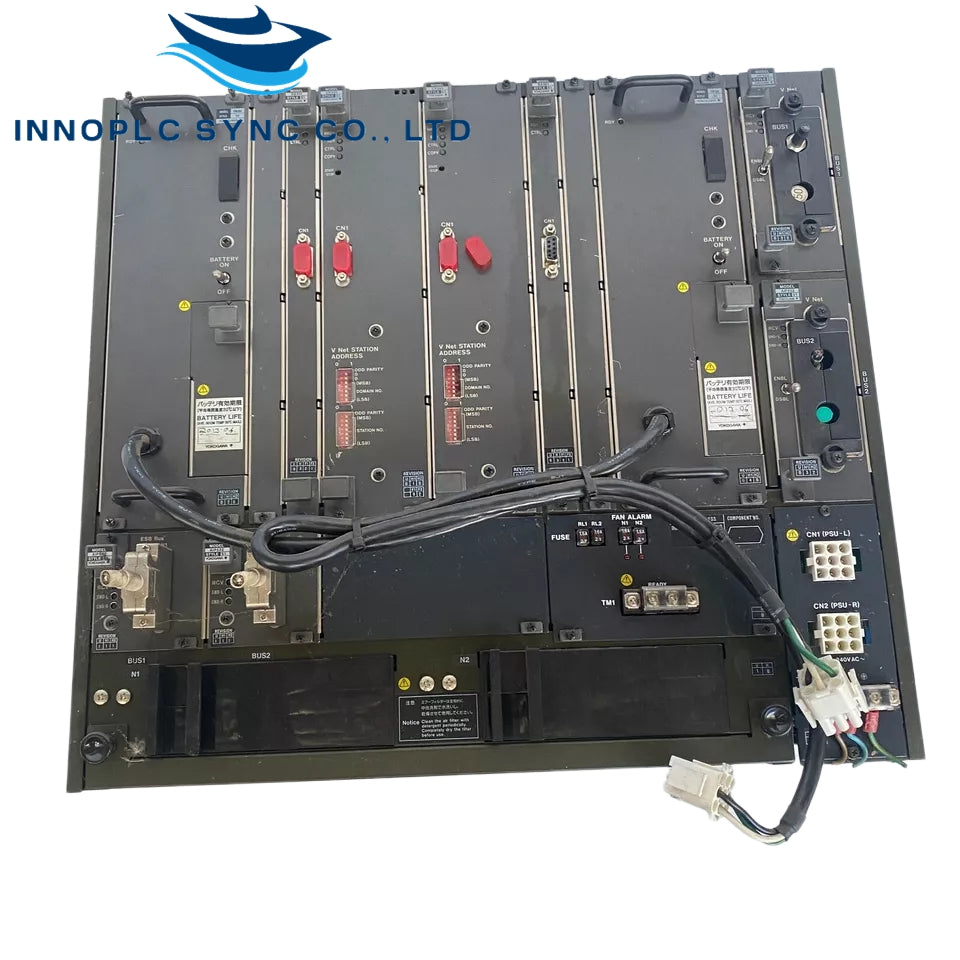

AFG30D-H4123| Yokogawa |Duplexed Field Control Unit

SKU: AFG30D-H4123

Manufacturer: Yokogawa
Product No.: AFG30D-H4123
Condition：In stock
Product Type: Duplexed Field Control Unit
Product Origin: Japan
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

For installation specifications and environmental conditions common to systems, refer to 'System Overview (GS 33K01A20-50E)'.

Processor:
- VR5432 (13 MHz)
Main Memory Capacity:
- AFSOS, AFSOD: 16 Mbyte
- AFGOS, AFGOD: 32 Mbyte
Memory Protection During Power Failure:
- Battery backup for main memory: Max. 72 hours
- Battery recharge time: Min. 48 hours
FCU Status Contact Output:
- 2 terminals (NC, C)
- Contact points open during FCU failure
- Contact rating: 30 V DC, max. 0.3 A
Communication Interfaces:
- V net Interface: Dual-redundant or single
- ESB bus interface: Dual-redundant or single
Number of Node Units Connectable:
- Local Node units: Max. 10 per FCU
- Remote Node units: Max. 14 per FCU
- ER Bus Node units: Max. 8 per FCU
Power Supply:
- (specify with suffix codes)
- Voltage: 100-120 V AC, Frequency: 50/60 Hz
- Voltage: 220-240 V AC, Frequency: 50/60 Hz
- Voltage: 24 V DC

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
