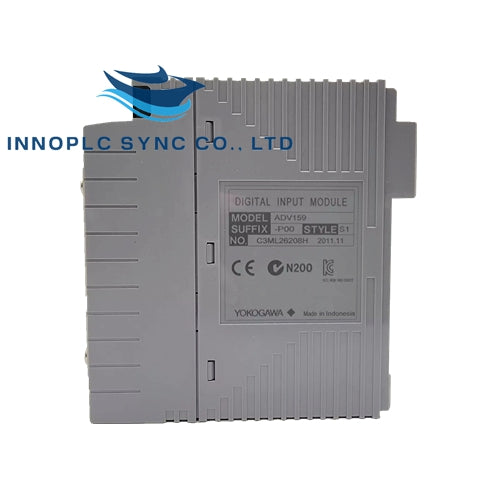

ADV159-P00 | Yokogawa | Digital Input Module

SKU: ADV159-P00

Manufacturer: Yokogawa
Product No.: ADV159-P00
Condition：In stock
Product Type: Digital Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Yokogawa ADV159-P00 Digital Input Module offers 32 isolated channels for secure signal input in the ST3 system. With its ability to handle both contact and voltage input signals, along with pushbutton support, this module ensures efficient and precise input processing for industrial control systems.

Key Functionalities

32 Isolated Input Channels: Reduces interference and enhances signal integrity.
Pushbutton Input Detection: Handles edge detection with a minimum ON detection time of 20 ms.
Wide Input Compatibility: Supports contact inputs with specific ON/OFF voltage thresholds and voltage inputs ranging from 4.5 to 25 V DC.

Input Signal and Performance

Contact Input Signals:
- OFF Signal: ≥100 kΩ
- ON Signal: ≤200 Ω
- Minimum Current when Contact is Short-Circuited: 1.25 mA
Voltage Input Signals:
- OFF Signal: 4.5 to 25 V DC
- ON Signal: ±1 V DC, ≤200 Ω
Input Response Time: 8 ms (for status input)
Pushbutton Input Specifications:
- Minimum ON Detection Time: 20 ms
- Maximum ON/OFF Cycle: 25 Hz

Power and Physical Specifications

Power Consumption: 330 mA (5 V DC)
Weight: Approx. 0.40 kg

External Connections and Compatibility

Connection Method: Dedicated cable (KS2)
Compatible Card: ST3 compatible

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
