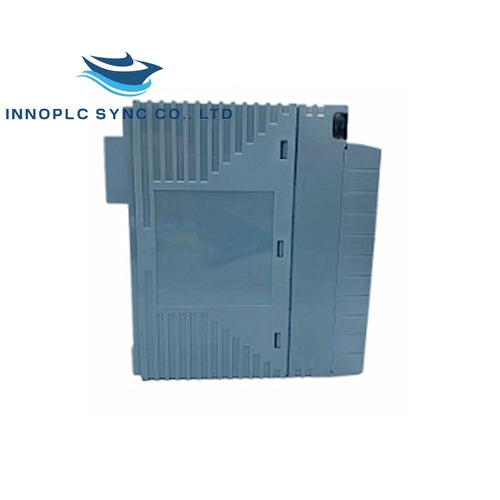

ADV151-P53 | Yokogawa | Digital Input Module

SKU: ADV151-P53

Manufacturer: Yokogawa
Product No.: ADV151-P53
Condition：In stock
Product Type: Digital Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Overview

The ADV151-P53 is a Yokogawa Digital Input Module with a 32-channel configuration, designed for a 24 V DC isolated input. This model includes suffix options such as pushbutton input (-P), exclusion of status display and explosion protection (5), and enhanced environmental durability with ISA Standard G3 and an extended temperature range from -20 to 70 °C (3).

Technical Specifications

Suffix Codes

-P: With pushbutton input
5: Without status display; no explosion protection
3: Includes ISA Standard G3 and temperature option (-20 to 70 °C)

Input Channels

Number of Input Channels: 32
Rated Input Voltage: 24 V DC (sink/source)
Input ON Voltage Range: 18 to 26.4 V DC
Input OFF Voltage: 5.0 V DC or lower
Input Current (at Rated Input Voltage): 4.1 mA ± 20% per channel
Maximum Allowable Input Voltage: 30.0 V DC

Voltage Withstand

Between Input Signal and System: 2 kV AC for 1 minute
Between Commons: 500 V AC for 1 minute (common every 16 channels)

Functionality

Status Input: ON/OFF detection function
Pushbutton Input: Edge counting function
SOE Input: SOE data capture capability

Input Timing

Input Response Time: 8 ms or less (status input)
Minimum ON Detection Time: 20 ms (pushbutton input)
Maximum ON/OFF Cycle Frequency: 25 Hz (pushbutton input)

Power Consumption

Maximum Current Consumption: 500 mA (5 V DC)

Physical Specifications

Weight: Approx. 0.30 kg

External Connection Options

Pressure Clamp Terminal
Dedicated Cable: AKB331
MIL Connector Cable
