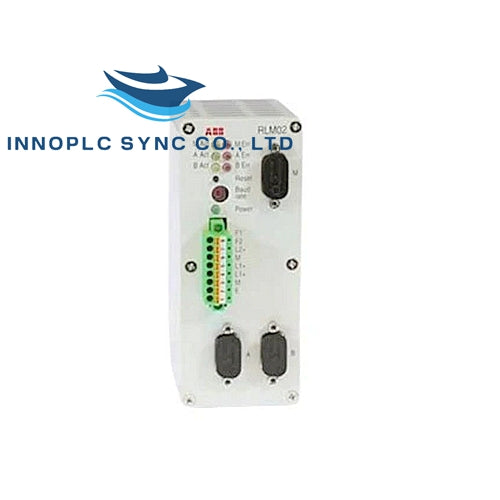

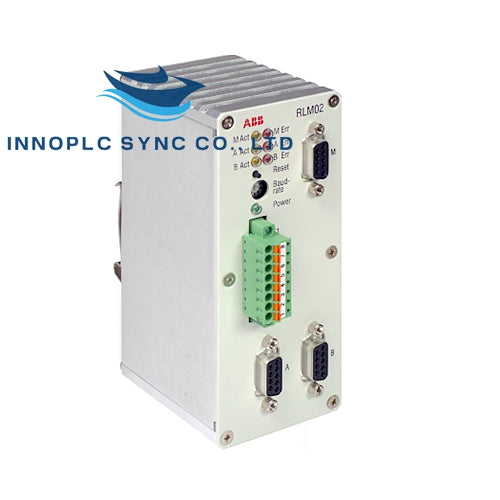

ABB RLM02 Redundancy Link Module

SKU: RLM02

Manufacturer: ABB
Product No.: RLM02
Condition：In stock
Product Type: Redundancy Link Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 330g
Shipping port: Xiamen
Warranty: 12 months

Overview

The ABB RLM02 Redundancy Link Module enhances reliability in PROFIBUS DP/FMS networks by converting a single, non-redundant line into two reciprocally redundant lines (A/B). It operates at transmission rates between 9.6 kbit/s and 12 Mbit/s, featuring automatic line selection and comprehensive monitoring capabilities.

Benefits

Conversion: Transforms one simple, non-redundant PROFIBUS line into two reciprocally redundant lines A/B
Compatibility: Designed for use on PROFIBUS DP/FMS lines
Automatic Line Selection: Ensures seamless communication
Transmission Rate: 9.6 kbit/s to 12 Mbit/s
Communication Monitoring: Enables real-time performance oversight
Repeater Functionality: Extends network reach
Redundant Power Supply: Enhances system reliability
Status and Error Display: Provides visual feedback
Power Supply Monitoring: Ensures consistent operation
Alarm Contact: Offers potential-free alerts
Easy Installation: Simple assembly on DIN mounting rail

Features

Positioning: Can be installed directly after a master, before a bus segment with multiple slaves, or before an individual slave
Redundant Couplers: PROFIBUS stations with redundant couplers [K] can connect directly to the PROFIBUS set redundant by RLM02
Single Interface Stations: Can be assigned to either the A or B line
Capacity: Each RLM02 interface supports up to 31 PROFIBUS stations
Expansion: Using repeaters [R] and media converters [O/E] allows for increased length and number of PROFIBUS stations

Connectors / Terminals

Description:
- A: Redundant PROFIBUS lines, 9-pin Sub-D connector, Open
- B: Non-redundant PROFIBUS line
- M: Power supply (L1+, L2+, M), alarm (F1, F2), and earth connection (E), 8-pole terminal strips

Adjustment and Indication

Description:
- Act: Bus activity on line A, B, or M (yellow LED)
- Err: Error on line A, B, or M (red LED)
- Power: Power supply okay (green LED)
- Baud Rate: Rotary switch for baud rate setting (9.6 kBd ... 12 MBd)
- Reset: Button for transmission rate activation

Technical Data

Baud Rate Settings

Switch Setting: 0 1 2 3 4 5 6 7 8 9
Baud Rate: 12 6 3 1.5 500 187.5 93.75 19.2 9.6 No Function
Unit: MBd or MBit/s, kBd or kbit/s

Serial Interfaces

Connections: A, B, and M
Transmission Rate: 9.6 kBit/s to 12 MBit/s
Type: RS 485
Connection: 9-pin Sub-D connector
Electrical Isolation: To IEC/EN 61010-1, functionally isolating
Test Voltage: 500 Veff
Device Protection Class: IP 20

Line Length Restriction

Master to M: 50 m
M to Slave: 50 m
A/B to A/B: According to PROFIBUS specification

Data Telegram Delay

A/B to M: 11 Bit times [μs] + 0.6 μs
M to A/B: 4 Bit times [μs] + 0.6 μs

Power Supply

Operating Voltage: 24 VDC (+20 ... +33 V)
Power Consumption: 120 mA typically at 24 V
Power Loss: Approx. 3.6 W
Connection: 8-pin terminal strip
Wire Cross Section: 0.14 ... 1.5 mm²

Ambient Conditions

Operating Temperature: 0 ... 55°C
Transport / Storage Temperature: -30 ... 85°C
Relative Humidity: Max. 75%, non-condensing in operation
Altitude: Up to 2000 m

Alarm Contact

Function: Normally closed / Open in case of error
Switching Voltage: < 60 VDC
Switching Current: Max. 1 A

Design

Dimensions: 134 x 56 x 70 mm (H x W x D)
Weight: Approx. 330 g
Attachment: Mounting rail, 35 mm
Protection: IP 20 (indoor use)

Certification

Corrosive Atmosphere: G3 (ISA-S71.04 Severity level: G3)
USA: UL-listed
Canada: CSA
Europe: CE
Ships and Maritime Systems: DNV GL, (location class)

Accessories

To Be Ordered Separately: 3 PROFIBUS connectors
