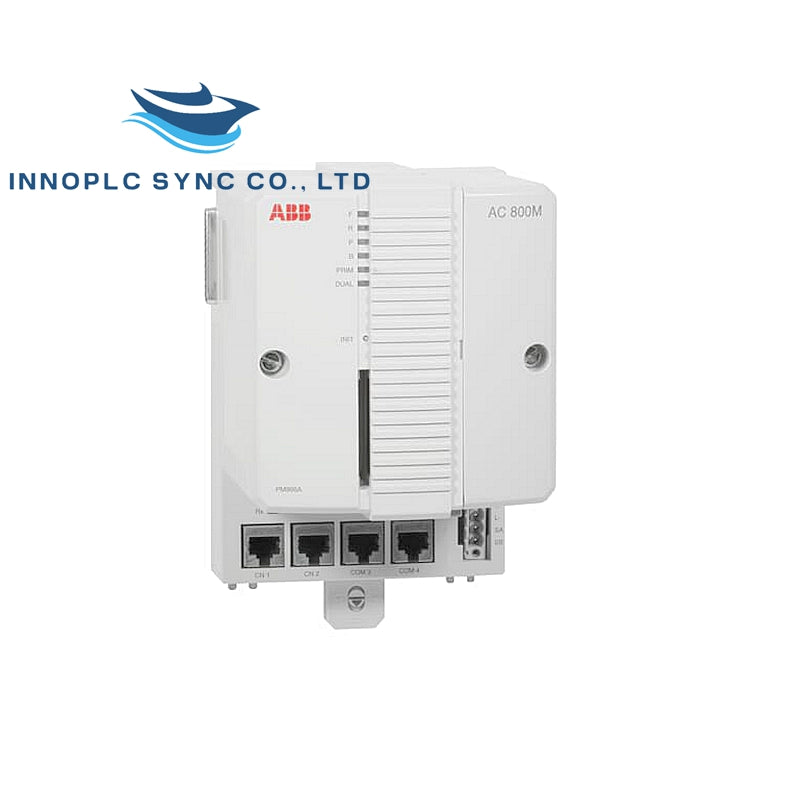

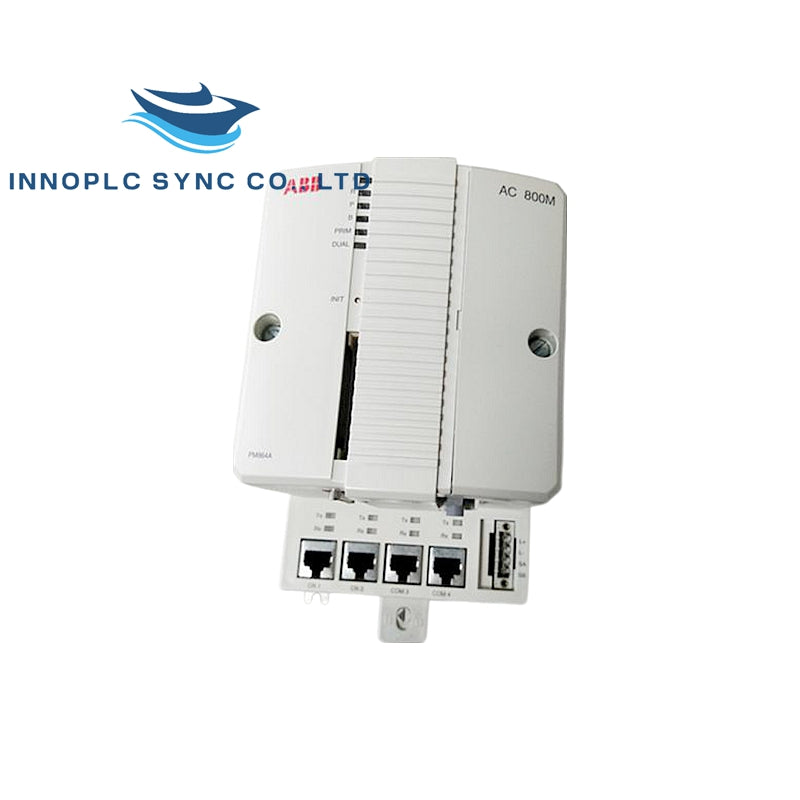

ABB PM866AK01 Processor Unit

SKU: PM866AK01

Manufacturer: ABB
Product No.: PM866AK01
Condition：In stock
Product Type: Processor Unit
Product Origin: USA
Payment:T/T, Western Union
Weight: 1179g
Shipping port: Xiamen
Warranty: 12 months

General Information

Article number: 3BSE076939R1 (PM866AK01)
Redundancy: No
High Integrity: No
Clock Frequency: 133 MHz
Performance, 1000 boolean operations: 0.09 ms
Performance: 0.09 ms
Memory: 64 MB
RAM available for application: 51.389 MB
Flash memory for storage: Yes

Environment and Certification

Temperature, Operating: +5 to +55 °C (+41 to +131 °F)
Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
Temperature changes: 3 °C/minutes according to IEC/EN 61131-2
Pollution degree: Degree 2 according to IEC/EN 61131-2
Corrosion protection: G3 compliant to ISA 71.04
Relative humidity: 5 to 95 %, non-condensing
Emitted noise: < 55 dB (A)
Vibration:
- 10 < f < 50 Hz: 0.0375 mm amplitude
- 50 < f < 150 Hz: 0.5 g acceleration
- 5 < f < 500 Hz: 0.2 g acceleration
Rated Isolation Voltage: 500 V a.c.
Dielectric test voltage: 50 V
Protection class: IP20 according to EN 60529, IEC 529
Altitude: 2000 m according to IEC/EN 61131-2
Emission & Immunity: EN 61000-6-4, EN 61000-6-2
Environmental conditions: Industrial
CE Mark: Yes
Electrical Safety:
- EN 50178
- IEC 61131-2
- UL 61010-1
- UL 61010-2-201
Hazardous location:
- UL 60079-15
- cULus Class 1, Zone 2, AEx nA IIC T4
- ExnA IIC T4Gc X
ISA Secure certified: Yes
Marine certificates: DNV-GL (currently PM866: ABS, BV, DNV-GL, LR)
TUV Approval: No
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU

Dimensions

Width: 119 mm (4.7 in.)
Height: 186 mm (7.3 in.)
Depth: 135 mm (5.3 in.)
Weight (including base): 1200 g (2.6 lbs)
