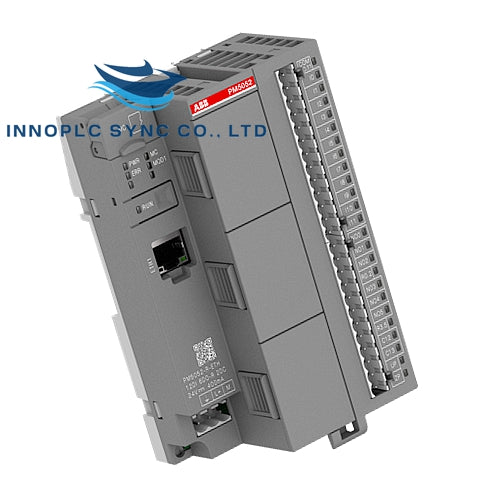

ABB | PM5052-R-ETH | Processor Module AC500

SKU: PM5052-R-ETH

Manufacturer: ABB
Product No.: PM5052-R-ETH
Condition：In stock
Product Type: Processor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 273g
Shipping port: Xiamen
Warranty: 12 months

Product Overview

Model Number: PM5052-R-ETH
Extended Product Type: PM5052-R-ETH
Product ID: 1SAP124100R0072
ABB Type Designation: PM5052-R-ETH

Product Description

Catalog Description: Processor module with 4MB memory, 12 DI 24 VDC, 6 DO-Relay, 2 DC 24 VDC, Ethernet interface, and 3 option slots (PM5052-R-ETH)

Ordering Information

Invoice Description: Processor module, 4MB memory, 12 DI 24 VDC, 6 DO-Relay, 2 DC 24 VDC, Ethernet interface, 3 option slots (PM5052-R-ETH)
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.273 kg
Product Net Depth / Length: 74 mm
Product Net Height: 135 mm
Product Net Width: 82 mm

Technical Specifications

Function: 4MB memory, 12 DI 24 VDC, 6 DO-Relay, 2 DC 24 VDC, Ethernet interface, 3 option slots
Number of Hardware Interfaces:
- Industrial Ethernet: 1
- Other Interfaces: None
Memory Size: 7032 kB
Memory Type: RAM
Controller Processing Time: 0.00002 ms
Number of Digital Inputs: 12
Number of Digital Outputs: 6
Number of Digital Configurable I/Os: 2
Input Voltage Type: DC
Degree of Protection: IP20
Rated Voltage (Ur): 24 V DC
Supply Voltage: 20.4 – 28.8 V DC

Additional Information

Product Main Type: PM5052
Product Name: Distributed Automation PLCs

Environmental

WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
