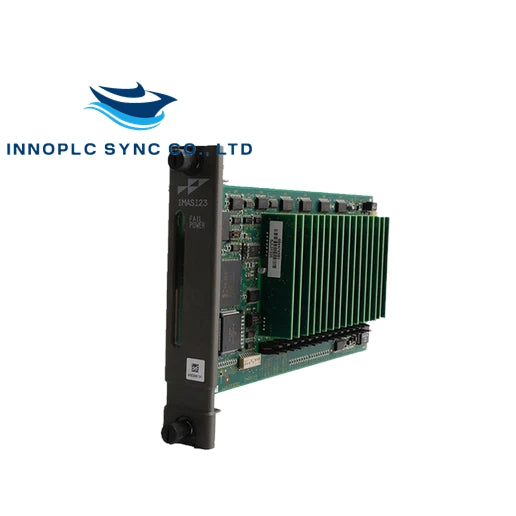

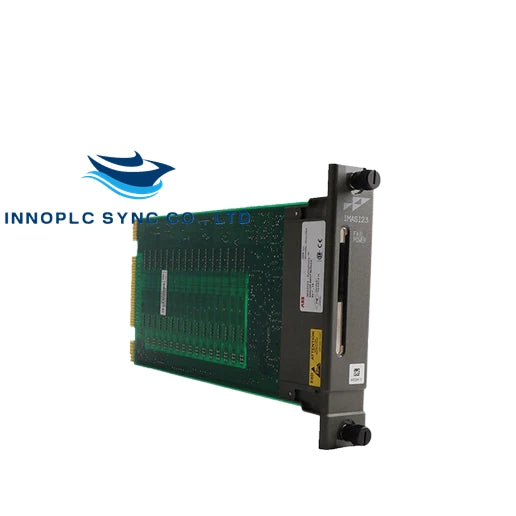

ABB | IMASI13 | Analog Input Module

SKU: IMASI13

Manufacturer: ABB
Product No.: IMASI13
Condition：In stock
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 190g
Shipping port: Xiamen
Warranty: 12 months

Manufacturer: ABB
Product No.: IMASI13
Product Type: Analog Input Module

Power Requirements

Operating Voltage:
- 5 VDC at 500 mA (typical)
- Maximum 750 mA
Overvoltage Category (IEC 61010-1):
- I for circuits above 150V
- II for circuits below 150V

Analog Input Channels

Total Channels: 16 independently configured channels

Supported Sensor Types:

Thermocouples:

Type E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U
Chinese Type E and Chinese Type S

3-wire RTD:

100 Ω platinum (U.S. Lab Standard)
100 Ω platinum (U.S. Industry Standard)
100 Ω platinum (European Standard)
120 Ω nickel
10 Ω copper
Chinese 53 Ω copper

Millivolt:

-100 mV to +100 mV
0 to 100 mV

High Level:

1 to 5 VDC
0 to 5 VDC
0 to 10 VDC
-10 VDC to +10 VDC (or user-specified range within -10 VDC and +10 VDC)

Current:

4 to 20 mA (system or external power)

Environmental Specifications

Ambient Temperature: 0° to 70° C (32° to 158° F)
Relative Humidity:
- 5% to 95% up to 55° C (131° F) (non-condensing)
- 5% to 45% at 70° C (158° F) (non-condensing)
Pollution Degree: 1
Altitude: Sea level to 3 km (1.86 miles)
Air Quality: Non-corrosive

Weight

Weight: 0.91 kg
Shipping Weight: 2 kg

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
